• Model NO.：TLV-HVFS2835Q120W
• Type：High Voltage LED Flexible Strip
• LED Suppliers：Xuyu,Honglitronic,Osram,Samsung
• LED Chip Brand：Sanan ( Epistar , Samsung Optional )
• LED Material：Packaged by 99.99% Pure Gold Wire, Red Copper Pad
• LED Bins：2-Step,3-Step,6-Step, Same Bin for Each Order
• LED Luminous：50-55lm, 55-60lm, 60-65lm,LED
• PCB Material：Double-Sided Pure Copper Circuit Board
• PCB Width：10mm , 12mm
• PCB Thickness：2oz ( 3oz Optional )
• LED Testing：IEC,En62471, Lm-80
• Adhesive Tape：3m Vhb Adhesive Tape
• Packing：5m,10m,20m,30m,50m Per Roll
• Warranty：3 Years
• Certificates：TUV CE, FCC, RoHS, IEC,En62471
• Transport Package：Inner Box and Carton
• Specification：SMD2835 120LEDs,m
• Trademark：Topledvision
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：100000m,Month

Basic Info.

Model NO. TLV-HVFS2835Q120W Type High Voltage LED Flexible Strip LED Suppliers Xuyu/Honglitronic/Osram/Samsung LED Chip Brand Sanan ( Epistar / Samsung Optional ) LED Material Packaged by 99.99% Pure Gold Wire, Red Copper Pad LED Bins 2-Step/3-Step/6-Step, Same Bin for Each Order LED Luminous 50-55lm, 55-60lm, 60-65lm/LED PCB Material Double-Sided Pure Copper Circuit Board PCB Width 10mm / 12mm PCB Thickness 2oz ( 3oz Optional ) LED Testing IEC/En62471, Lm-80 Adhesive Tape 3m Vhb Adhesive Tape Packing 5m/10m/20m/30m/50m Per Roll Warranty 3 Years Certificates TUV CE, FCC, RoHS, IEC/En62471 Transport Package Inner Box and Carton Specification SMD2835 120LEDs/m Trademark Topledvision Origin Shenzhen, China HS Code 9405409000 Production Capacity 100000m/Month

Product Description

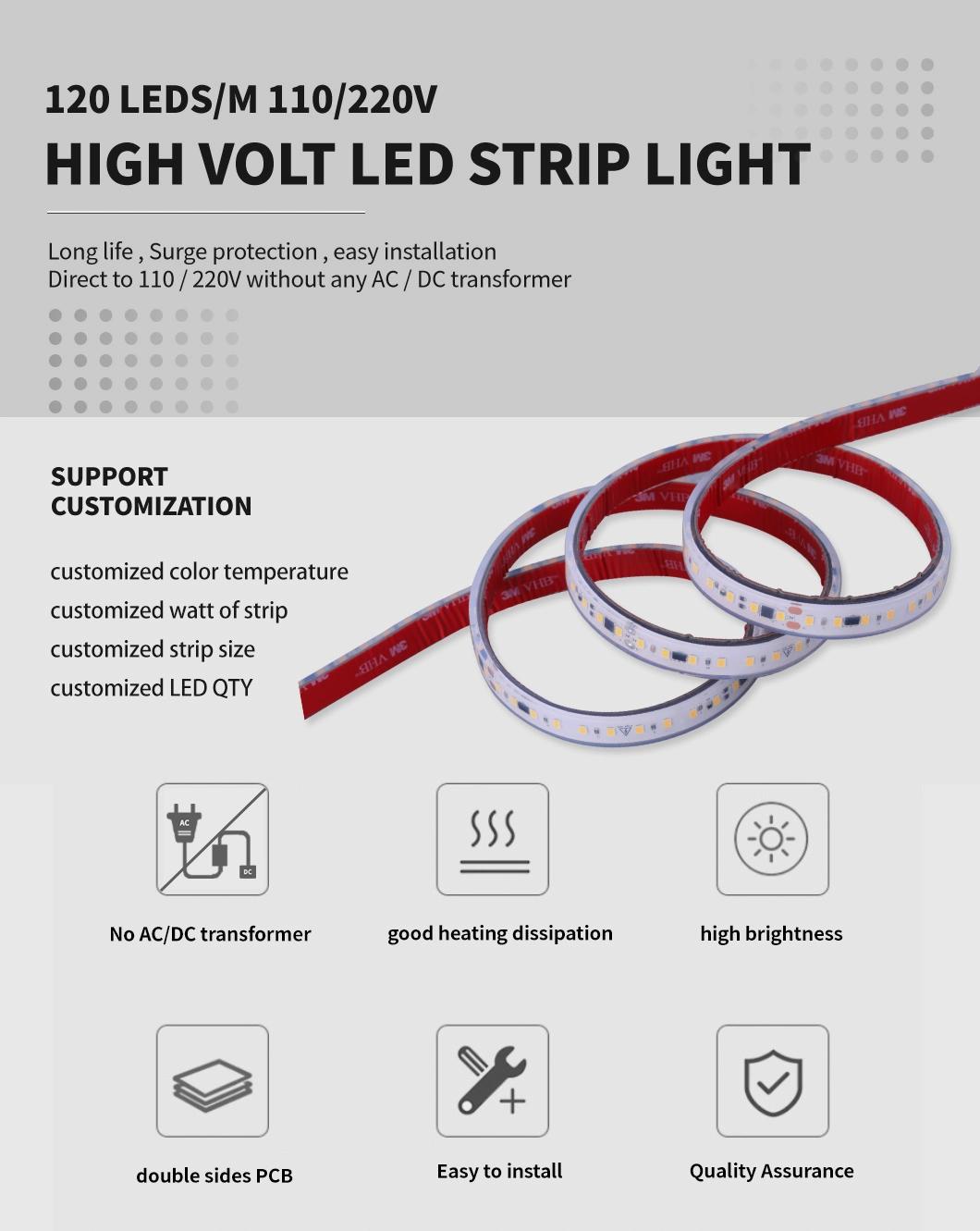

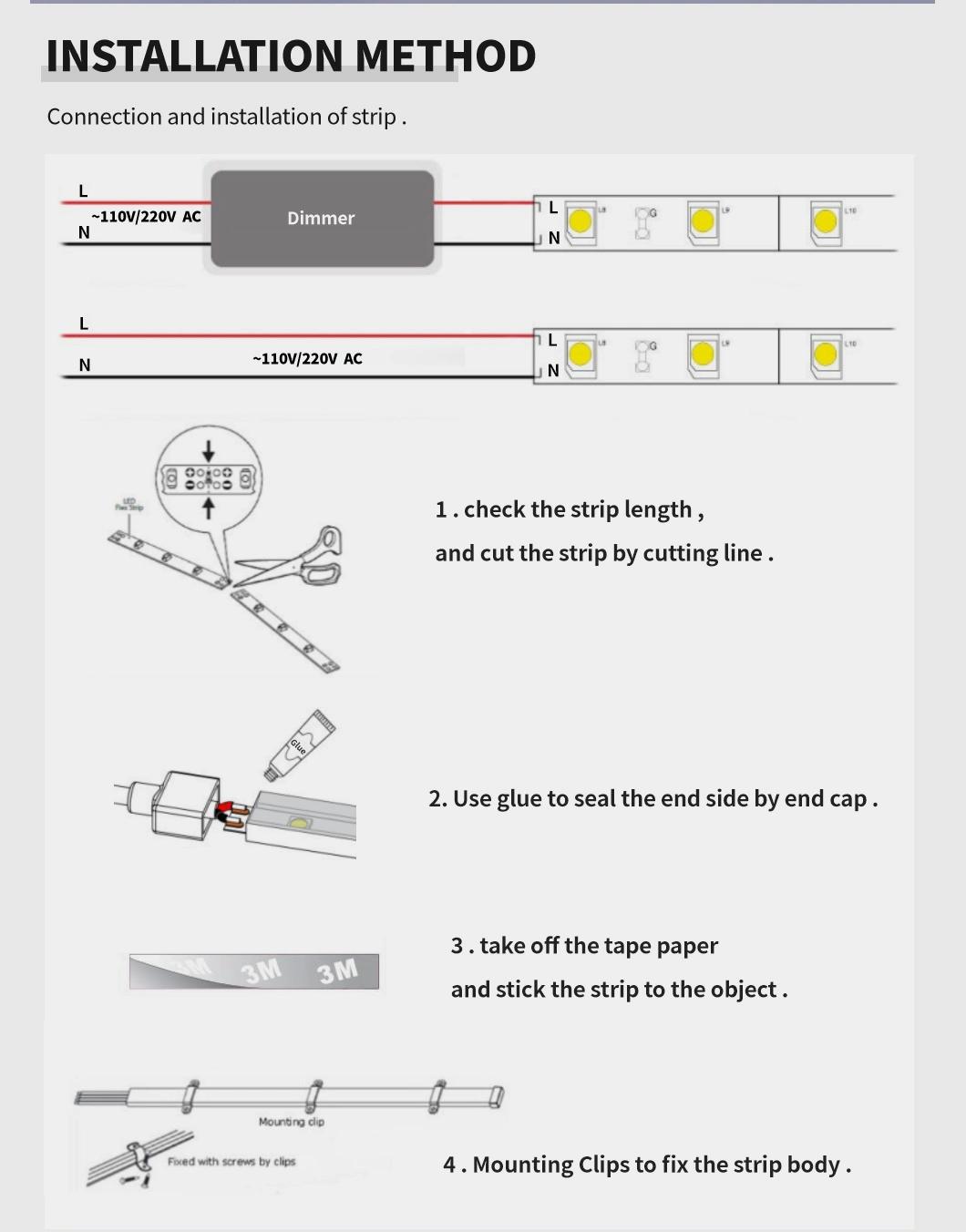

New Design High Volt LED Strip 110/220V without any AC/DC transformer

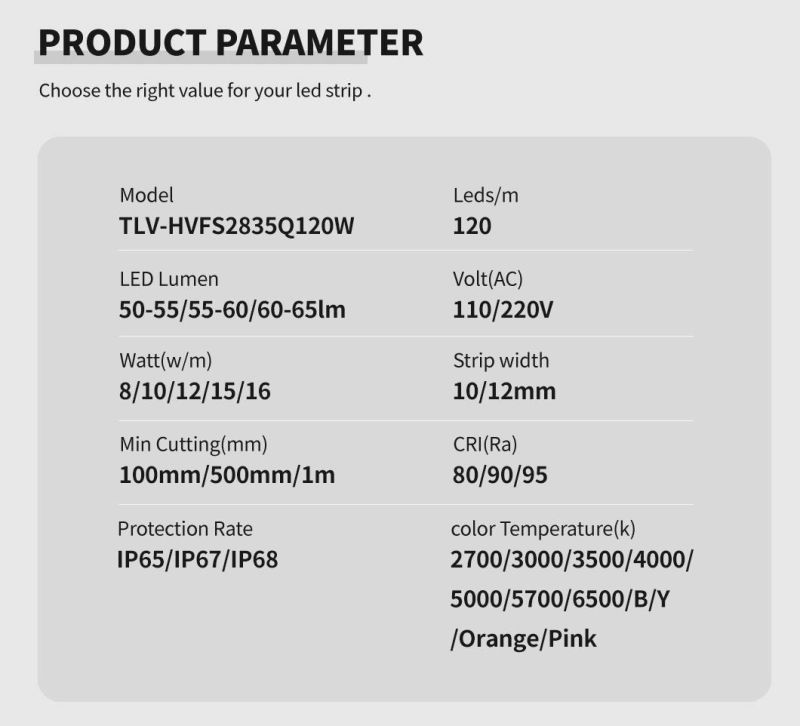

Product Parameter

Model No.	TLV-HVFS2835Q120W

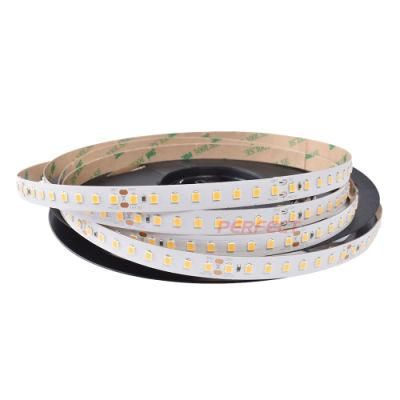

LED Quantity	120LEDs/m 2835
Color Temperature	2700 / 3000 /3500 / 4000 / 5000 / 5700 / 6500 / B / Y / Orange / Pink
Color	WW / NW / CW / B / Y / Orange / Pink
Voltage	AC110V / AC220V
Power (w/m)	8 / 10 / 12 / 15 / 16
CRI(RA>)	CRI>80 (CRI >90 / CRI >95 optional)
PCB Width	10/12mm
PCB materials	2Oz Double-Sided pure copper Circuit Board
LED Suppliers	XUYU / Honglitronic / Osram / Samsung
LED Chip Brand	Sanan ( Epistar / Samsung optional )
LEDs Material	packaged by 99.99% pure gold wire, red copper pad
LED BINs	2-Step/3-Step/6-Step, same BIN for each order
Luminous (lm)/LED	50-55 / 55-60 / 60-65lm
IP Rate	IP65 / IP67 / IP68

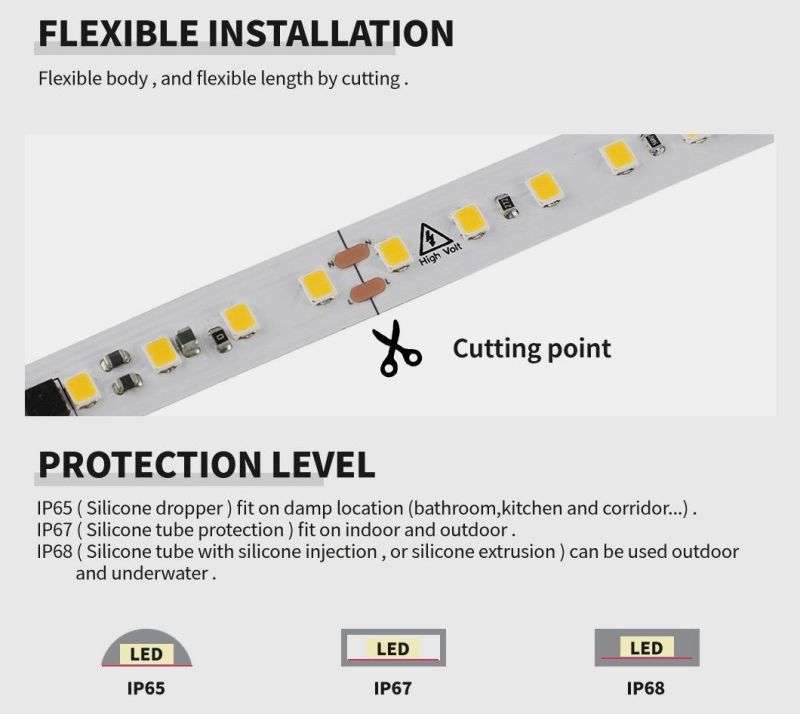

Cutting min unit	100mm / 500mm / 1m
View Angle	120°
Package (m/roll)	5m, 10m, 20m, 30m, 50m per roll ( customized length available )
Working Temperature (ºC)	-20-60°
Adhesive Tape	Original 300LSE 3M tape
Dimmable	Yes

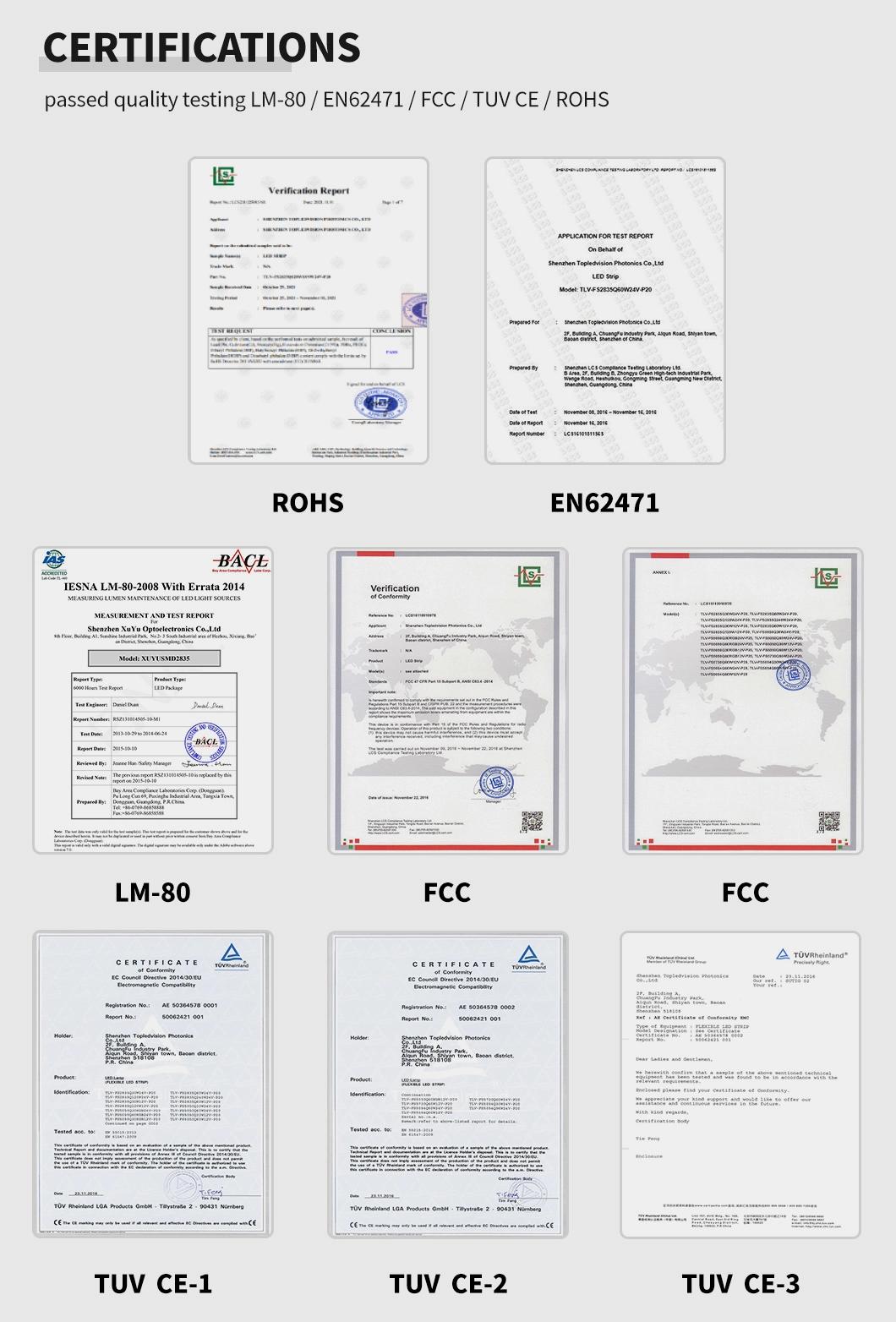

Certificate	TUV CE, FCC, RoHS, IEC/En62471
Warranty	3 Years

Features as follow:

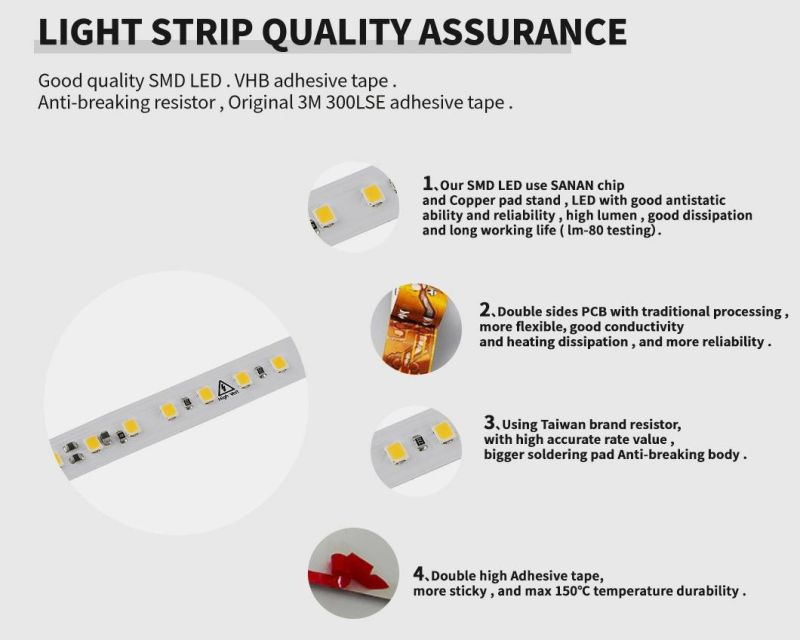

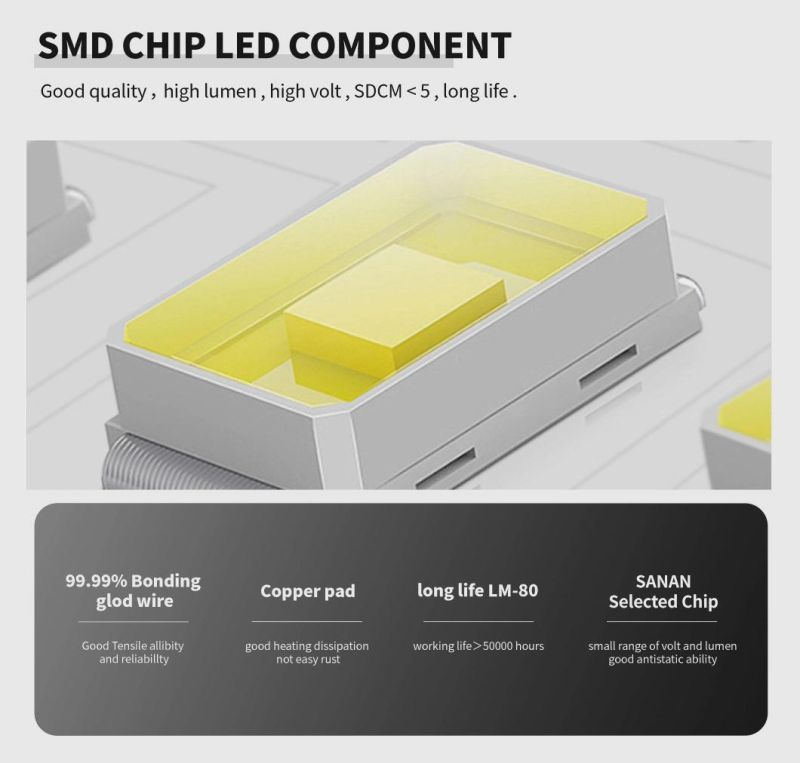

1. 2835 assembled LEDs:
- 99.99% gold wire, red copper pad;
- 24~26lm/LED ( Epistar 26-28lm/LED ) passed LM-80 certified;
- Double-sided circuit board
2. Cost saving, the strip do not need power supply to transform voltage, and adopt constant current IC scheme to realize constant current control to AC voltage;
3. Adopt silicone material,higher ingress protection, and strong resistance to corrosion;
4. The minimum cutting length is 500mm / 100mm.

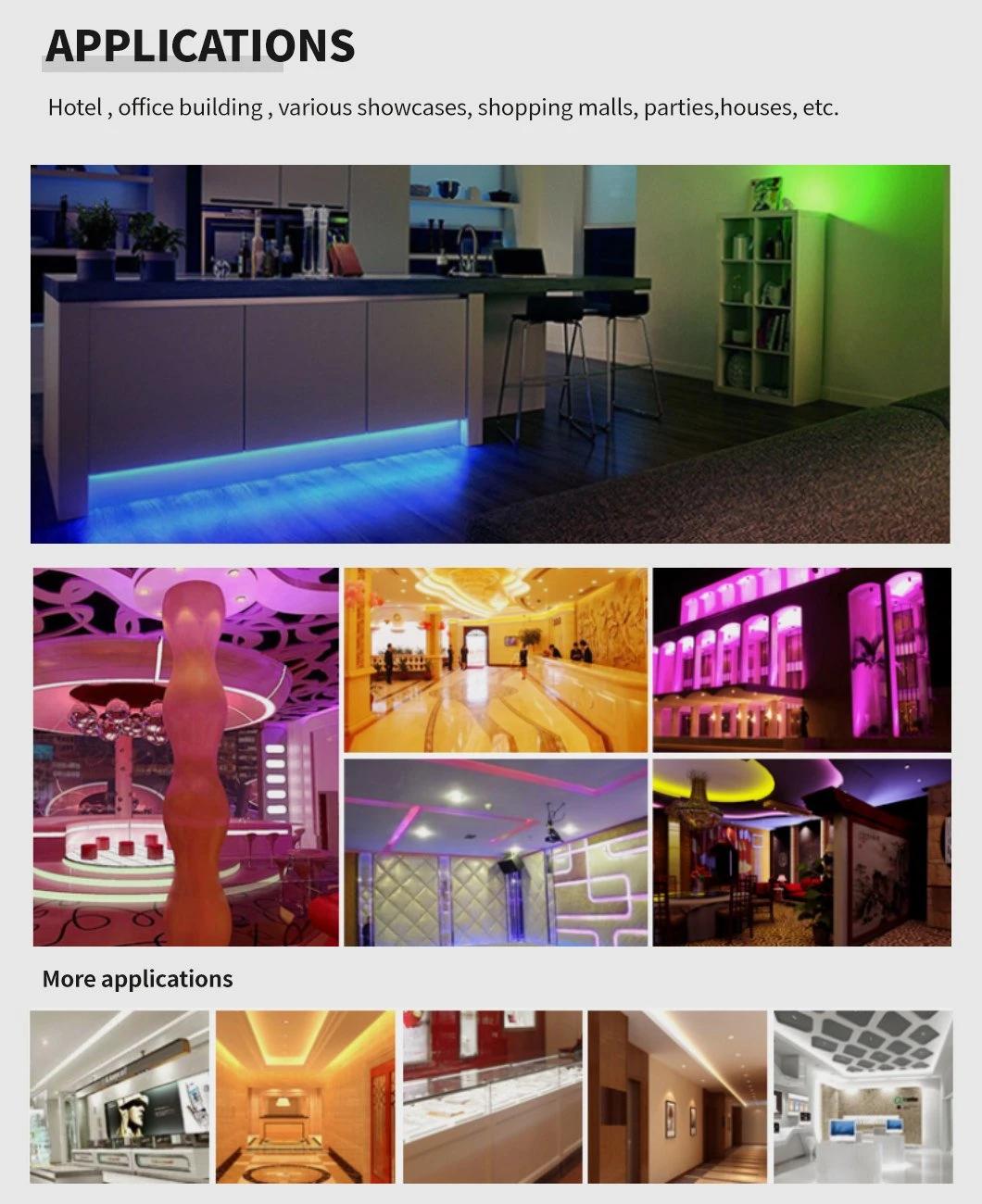

Applications:
1. Home, stage lighting;
2. Festival, activities, exhibition lighting;
3. Backlight of signage;
4. Contour lighting;
5. Landscape decoration lighting;
6. Engineering, decorative project,etc
