• Model NO.：RCC0GX08A-X,RCC0GX08B-X
• Luminous Efficiency：48lm,W
• Color Temperature：2700K-17000K, Red, Green, Blue, Yellow, Orange
• Color Rendering Index：>80
• Rated Current：1200mA,M for 12V DC, 600mA,M for 24V DC
• Product Size：5000*16*18mm
• Cuttable Unit：25mm for 12V DC, 50mm for 24V DC
• Max. Cascade Length：5m
• Min. Bend Diameter：20mm
• Mounting Solution：Mounting Base
• Operating Ambient：-25 Degrees to 50 Degrees
• Storage Environment：-40 Degrees to 70 Degrees, 60% Rh
• Transport Package：Carton Packaging
• Specification：5M,roll
• Trademark：OEM,ODM,MYNICE,Neutral
• Origin：China
• HS Code：9405409000
• Production Capacity：500, 000m,Month

Basic Info.

Model NO. RCC0GX08A-X/RCC0GX08B-X Luminous Efficiency 48lm/W Color Temperature 2700K-17000K, Red, Green, Blue, Yellow, Orange Color Rendering Index >80 Rated Current 1200mA/M for 12V DC, 600mA/M for 24V DC Product Size 5000*16*18mm Cuttable Unit 25mm for 12V DC, 50mm for 24V DC Max. Cascade Length 5m Min. Bend Diameter 20mm Mounting Solution Mounting Base Operating Ambient -25 Degrees to 50 Degrees Storage Environment -40 Degrees to 70 Degrees/ 60% Rh Transport Package Carton Packaging Specification 5M/roll Trademark OEM/ODM/MYNICE/Neutral Origin China HS Code 9405409000 Production Capacity 500, 000m/Month

Product Description

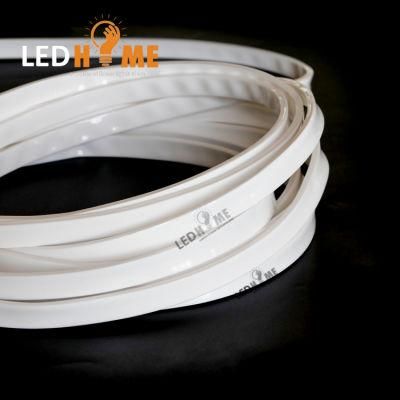

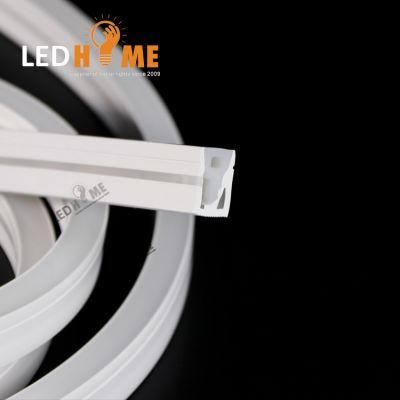

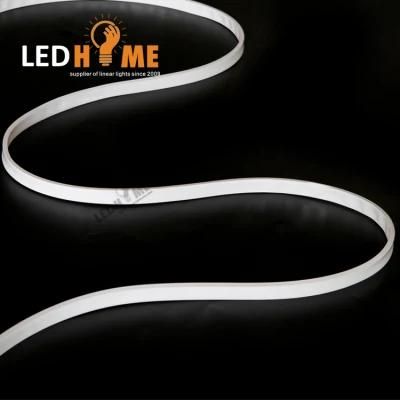

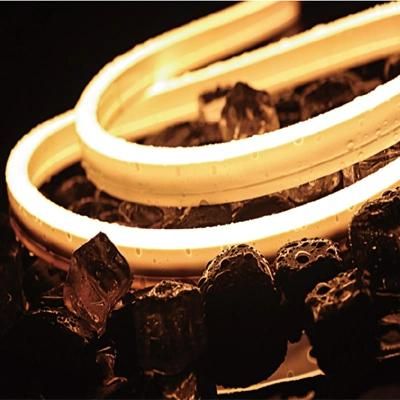

Bendable 12V DC flexible LED neon strip light

Areas of application
- Landscape lighting, facade lighting, steps, bridges, roads, shape, etc.

Main features
- High quality 2835 SMD LED
- Calendaring copper processing for FPC, more stronger and reliable
- Uniform lighting, dot free
- Bend at any angle by unique design
- Excellent weather and corrosion resistance
- 2700K-6500K, other color available

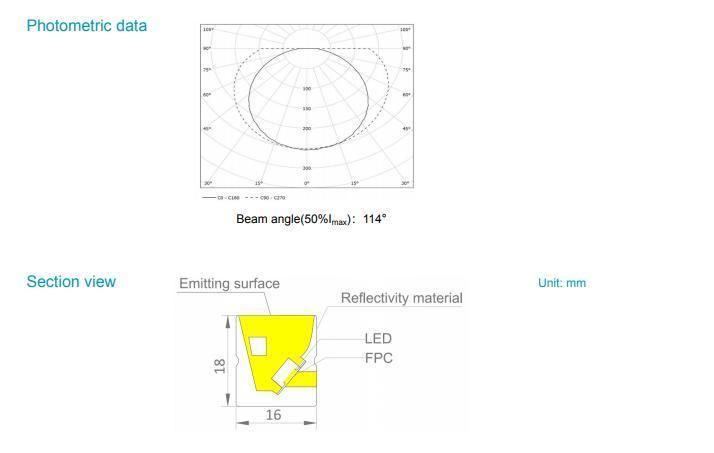

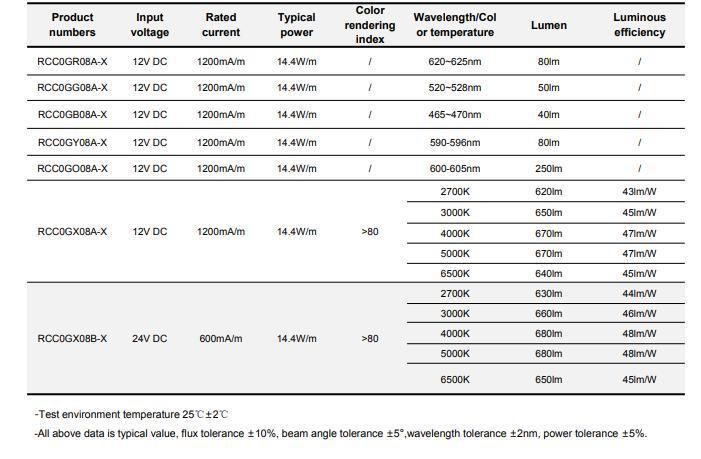

Photometrical data

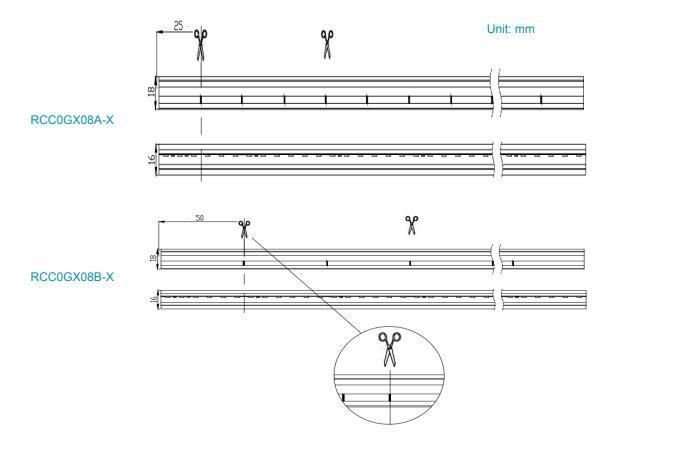

Size view

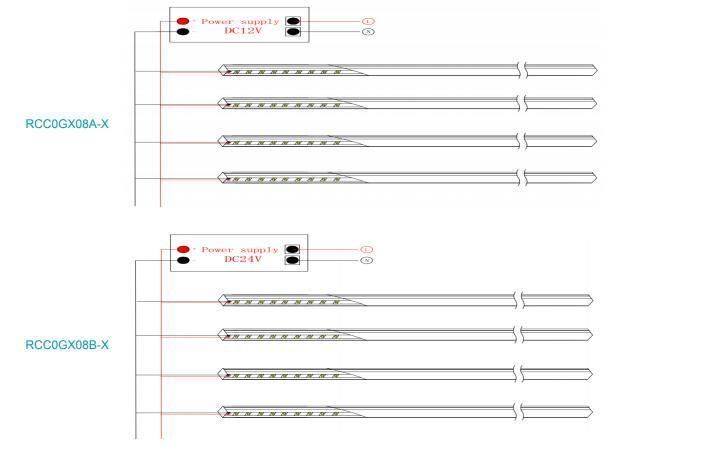

Product wiring diagram

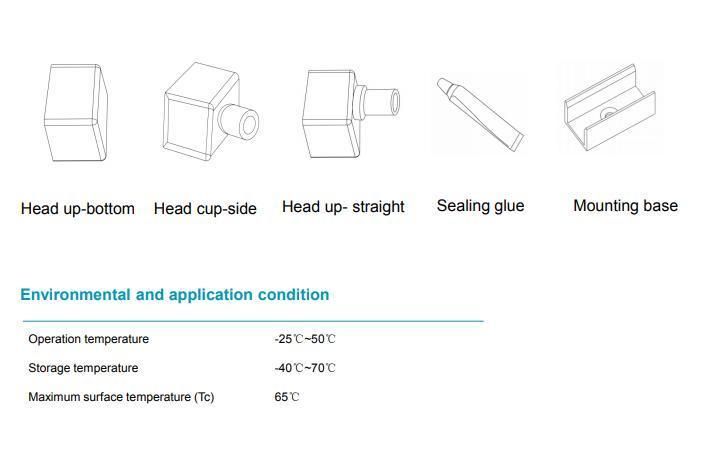

Product accessories

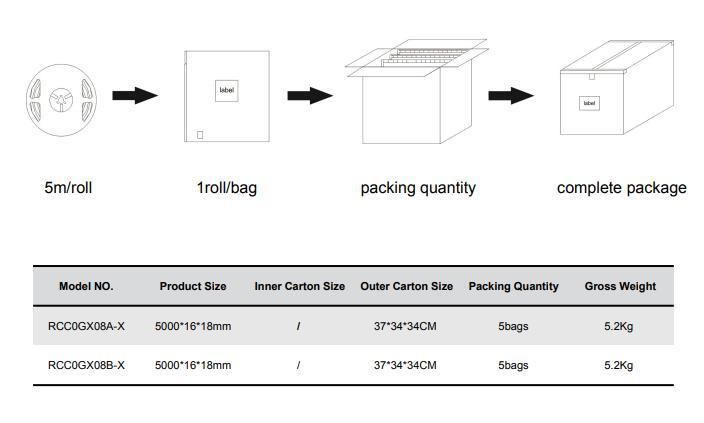

Package

Instructions
- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and
norms.
- Installation by qualified electrician only.
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.
- Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
- Do not fold it in case any damage of LED beads.
- Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
- Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent
with the voltage of the strip to avoid damage.
- LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20
ºC ~ + 40 ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH.
- Please use the strips without waterproof within indoor environment with humidity less than 70%.
- Please be careful during operation. Do not touch the AC power supply in case of electric shock.
- Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the
product.
- Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
- Must have extra power supply if the working length exceeds the maximum run length.
- The joints of extended strips should be deal with waterproof when using waterproof products.
