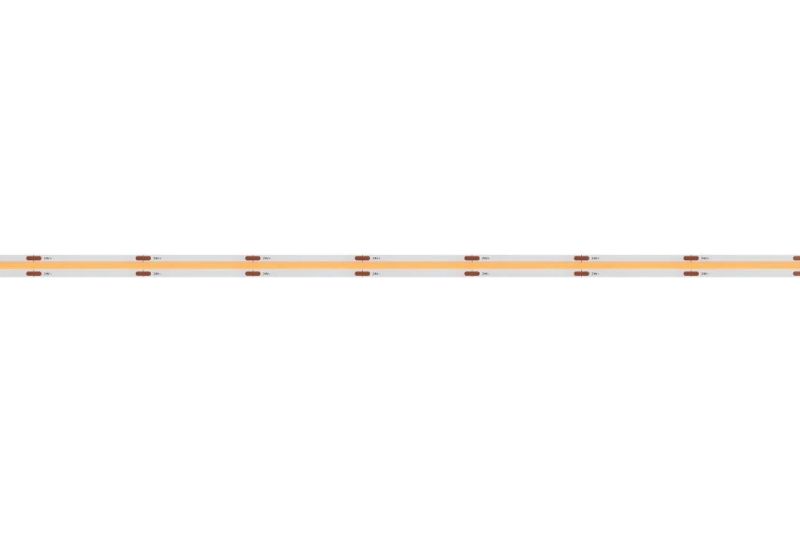

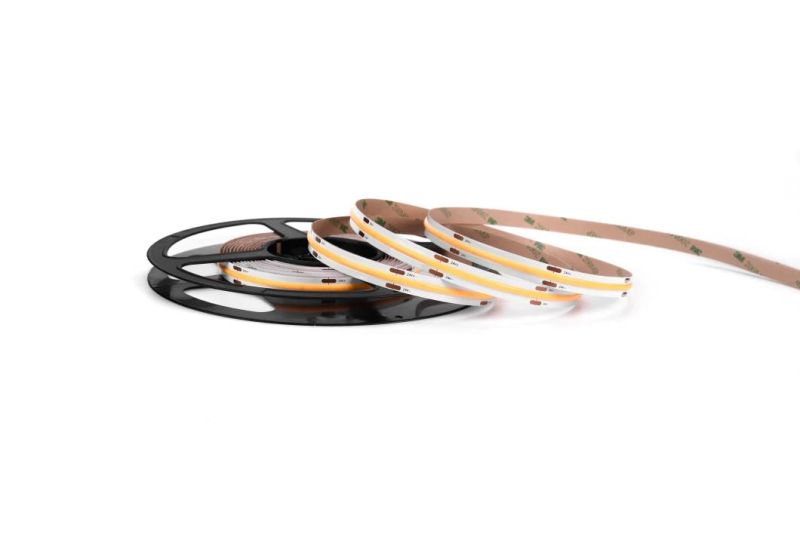

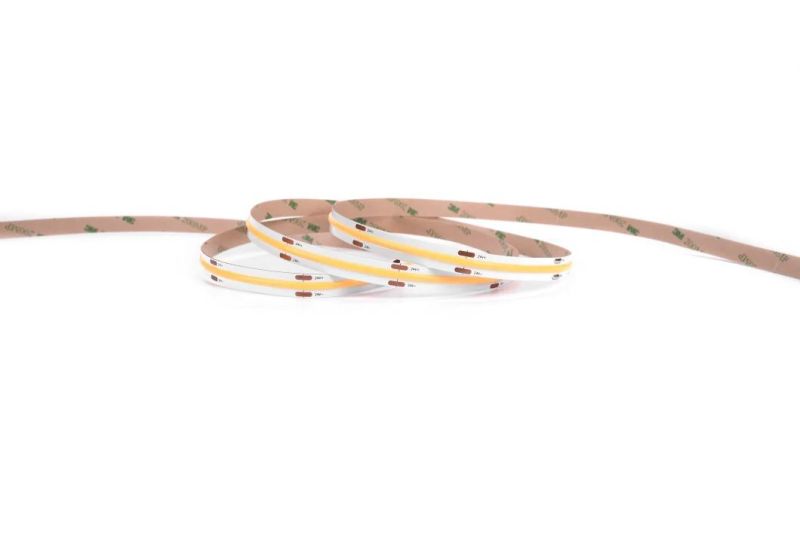

Flexible COB 480LEDs/M 12W 10mmpcb LED Strips
Shenzhen Starwire Lighting Co., Limited- Certification：UL, RoHS, CE
- Power：12W
- Emitting Color：White
- Voltage：24V
- IP Rating：IP20,65,66
- Product Name：COB LED Strips
Base Info
- Model NO.：SW-FCOBW240-WF0-5M-24-K010
- LED Quantity：480LEDs,Meter
- LED Voltage：24V
- LED Power：12W
- PCB Width：10mm
- Size：5000*10mm
- IP Grade：IP20,65,66
- Warranty：3 Years
- Transport Package：Anti-Static, Carton
- Specification：5000*10mm
- Trademark：Starwire
- Origin：China Shenzhen
- HS Code：85269200
- Production Capacity：500000meters ,Month
Description
Product Features :
*Big beam angle, no dark area, flexible line source with good heat dissipation.
*Inverted COB gold-free technology
*Ra>90, cuttable and re-connectable.
Series Family :
High Cost-effective series ,320 LEDS/m
SW-FCOBW160-WF0-5M-24-K008 : 5m/roll / COB Strips / 320pcs/m / 8mm / 4.5W/m/ DC24V / With 200mm wires at both ends ;
SW-FCOBW160-WF0-5M-24-K010 : 5m/roll / COB Strips / 320pcs/m / 10mm / 8W/m/ DC24V / With 200mm wires at both ends;
Popular series ,420 LEDS/m
SW-FCOBW210-WF0-5M-24-K008 : 5m/roll / COB Strips / 420pcs/m / 8mm / 10W/m/ DC24V / With 200mm wires at both ends ;
SW-FCOBW210-WF0-5M-24-K010 : 5m/roll / COB Strips / 420pcs/m / 10mm / 12W/m/ DC24V / With 200mm wires at both ends;
MINI PCB Series , 480 LEDS/m
SW-FCOBW240-WF0-3.5M-24-K004 : 5m/roll / COB Strips / 480pcs/m / 4mm / 4W/m/ DC24V / With 200mm wires at both ends ;
SW-FCOBW240-WF0-4M-24-K006 : 5m/roll / COB Strips / 480pcs/m / 6mm / 6W/m/ DC24V / With 200mm wires at both ends;
High Light efficiency Series , 480 LEDS/m
SW-FCOBW240-WF0-5M-24-K008 : 5m/roll / COB Strips / 480pcs/m / 8mm / 8W/m/ DC24V / With 200mm wires at both ends ;
SW-FCOBW240-WF0-5M-24-K010 : 5m/roll / COB Strips / 480pcs/m / 10mm / 10W/m/ DC24V / With 200mm wires at both ends;
High Power Series , 480 LEDS/m
SW-FCOBW240-WF0-5M-24-K008 : 5m/roll / COB Strips / 480pcs/m / 8mm / 12W/m/ DC24V / With 200mm wires at both ends ;
SW-FCOBW240-WF0-5M-24-K010 : 5m/roll / COB Strips / 480pcs/m / 10mm / 16W/m/ DC24V / With 200mm wires at both ends;

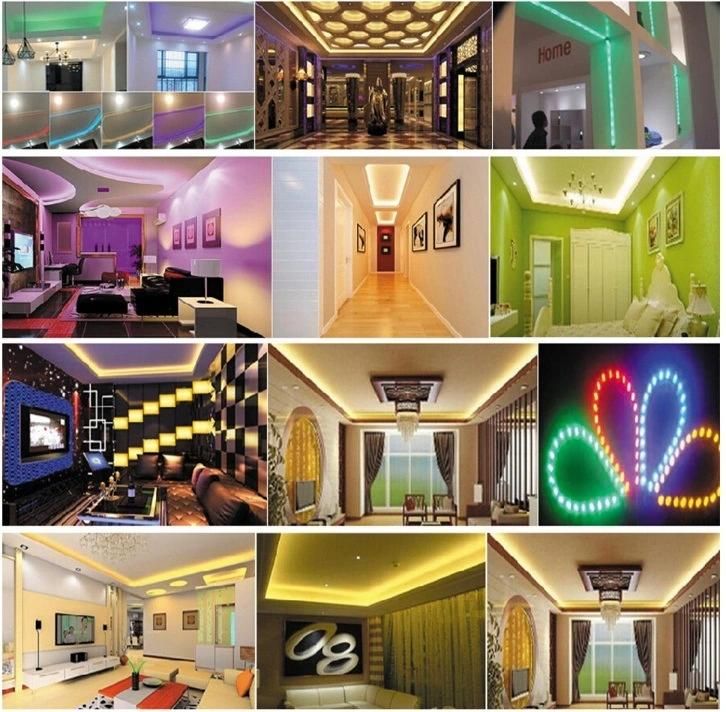

Application :

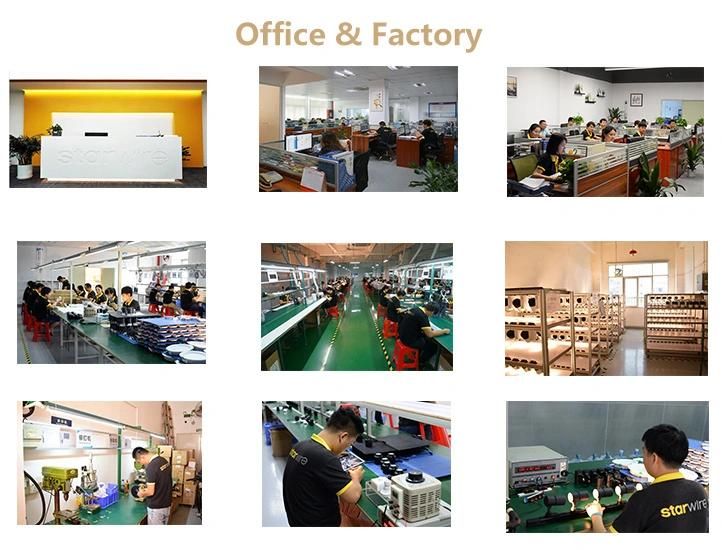

Shenzhen Starwire Lighting Co., Limited was set up in 2009. Now we focus on two products: LED
Strip Light & LED Downlight . We have two product department specializes in these two categories
of products. Our annual turnover is 10 million US dollars. Now we have 8000 square merer factory
and over 200 workers. We have goniophotometer, intergrating sphere, Humidity Chamber and other
testing equipment.
STARWIRE is a company combing R&D, produce sales together, our factory obtained SGS,
BV certifactions, and out products have passed UL, CE, RoHS, TUV, SAA cetification, our products
are selling well in Europe, North America, Australia and other countries.
We love product, not aggressive, not convergence, but strive to do a small but beautiful factory
Our company advantage:
1,Experience--We have 10 years experience of high quality led strip |
2, We have 5200 factory, 150 employees, including 15 engineers, we focus on strips. Focus make us more professional. |
4. All of our led strip with TUV CE Rohs UL certificate, UL No.: E479167; |
5. All our strip with 8 level CCT from 2200-6500K. Special color: Blue, pink, ice blue, Purple, 1500-1700K. |
6. High CRI RA>80/90/95 for option. |
7. OEM service without MOQ, like the length,watta and so on. |
8. Good After Sales Service--3-5years warranty and always offer relative technical support |
9. High speed and accuracy SMT Machine ( YAMAHA ), quantity 6 pcs(Video as the attachment). |
10. Lead-free during the whole process. |
11. Test report file and IES file are available. |
12. 5 times 100% checking during production for IP20 Led strips, plus the FQC, QA, and OQC checking, so we have 100% confidence in our products |
13,Tick double layer 2 oz copper PCB for excellent thermal management(3-step Macadam). |
14,One Bin led selection to ensure color consistency. |
15,Our price is reasonable in the market with so good quality. |
16,Our factory will offer 100% support to push our good cooperation! |
17,We can support your business(led strip, controller and so on) without MQQ for previous cooperation. |
