Indoor Outdoor Flexible RGBW LED Light Strip 19.2W/M with IEC/En62471
TOPLEDVISION PHOTONICS CO LIMITED- Certification：FCC, RoHS, CE, TUV Ce, IEC,En62471, Lm-80
- Power：19W,M
- Emitting Color：Red,Green,Blue,Color Change,Color Fade,Mixed Chang
- Voltage：12V,24V DC
- IP Rating：IP20, IP65, IP67, IP68 Optional
- Size ( L*W*D )：5000*10*1.8mm
Base Info
- Model NO.：TLV-FSWQ60-5050 RGBW-19W
- Type：Flexible LED Stripe LED Rope Light
- LED Source：Quality SMD5050 RGBW
- LED：99.99% Gold Wire, Red Copper Pad
- PCB：Double-Sided FPC
- Color：Red,Green,Blue,Color Change,Color Fade,Mixed Chang
- Working Voltage：12V,24V DC
- Power Consumption：19W,M
- LED Luminous：18-22lm,LED
- Lighting：Waterproof LED Strip Light
- Usage：KTV,Bar,House,Commercial,Decorative,Kitchen...
- Working Life：>30,000hours
- Warranty：2 Years
- Packing：5mts,Roll, Color Box Packing or Anti-Static Bag
- Certificates：TUV Ce, FCC, RoHS, IEC,En62471, Lm-80
- Transport Package：Inner Box and Carton, 100reels,CTN

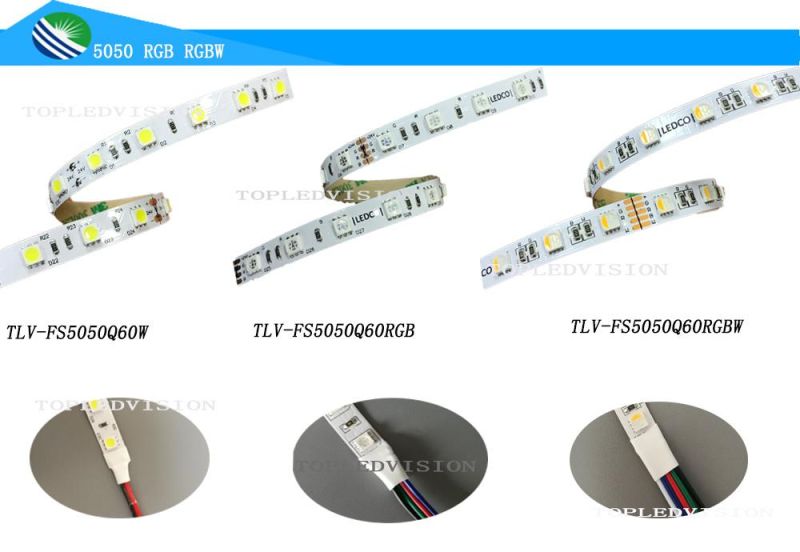

- Specification：SMD5050 RGBW LED strip 60LEDs,m
- Trademark：Topledvision
- Origin：Shenzhen, China
- HS Code：9405409000
- Production Capacity：50000meters,Month
Description

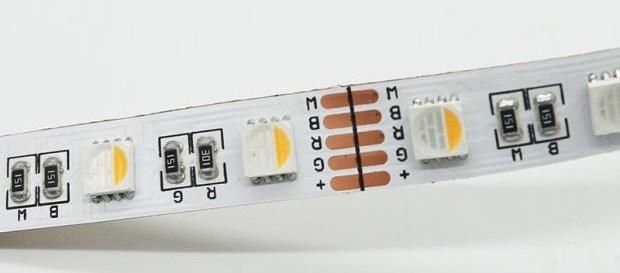

ItemHigh quality 5050 RGBW LED strip LED quantity 60LEDs/m Power(watt) 19W/m max Working voltage 12V/24V DC Color temperature Pure Red, Pure Green, Pure Blue color change and color fade, mixed color change PCB 10mm double sided FPC Dimension 5000*10*1.8mm IP rate IP20(IP33)/IP65/Nano coating/IP67/IP68 Cutting unit every 3LEDs(50mm) / 6LEDs(100mm) Back with Original 3M adhesive tape ( strong double sided more viscous ) Working lifespan >30,000hrs Warranty 2 years Certificates TUV CE, FCC, IEC/EN62471
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.
Features as follow:
1. LED source: 18-22lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size:10mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED rope light more than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS and IEC/EN62471 photobiological safety compliant.
Service1. Provide free technology support by phone and e-mail 2. We provide training to replace the broken part 3. Two years guarantee: In guarantee period, we provide the free new part for replacing. Payment 50/% deposit by T/T. Balance T/T before shipment. Delivery Approx 7-10 working days normally ( from receiving the deposit ) Transportation By Air / Sea Effective date 30days
We welcome OEM and ODM service, we have professional engineer to design and produce according your requirement.
Our factory's address: 6F, Jianghai industrial park, No.7 Yonghe Road, Shiyan Town,Baoan District, Shenzhen, China.
If you are willing to come, just call me!
Looking forward to your call, Company Tel: +86 (0)755-2735 5806 to 805 My cell phone: +86 13560038346
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.
Features as follow:
1. LED source: 18-22lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size:10mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED rope light more than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS and IEC/EN62471 photobiological safety compliant.
