• Model NO.：Neon-2835-120D-12V
• Warranty：3 Years
• Brightness：22lm,LED
• Color Temperature：3000-15000K
• LED Quantity：120LEDs,M
• Beam Angle：120 Degree
• Transport Package：Carton
• Specification：8*16mm & 14*26mm
• Trademark：HY-LED
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：50000 Meters Per Month

Basic Info.

Model NO. Neon-2835-120D-12V Warranty 3 Years Brightness 22lm/LED Color Temperature 3000-15000K LED Quantity 120LEDs/M Beam Angle 120 Degree Transport Package Carton Specification 8*16mm & 14*26mm Trademark HY-LED Origin Shenzhen HS Code 9405409000 Production Capacity 50000 Meters Per Month

Product Description

Product Description:

Outdoor SMD 2835 R/G/B/Y/W Christmas Decoration LED Neon Flex Light

Details:


Led Type.	2835
Length	20m/roll
Led Quantity	120leds/m
Color	white/green/blue/red/yellow
Brightness	22lm/led
Color Temperature	3000-15000K
Wide Size	8*16mm & 14*26mm
Voltage	DC12=
Operating Temperature	-50°-70°
Power	4.8W/M
Waterproof	IP67
Warranty	3 years

Advantages:

1. 20 meter/ roll, with 120 Degree beam angle.

2. Easy to install!  Bend Vertically for various applications.

3. Every 3 LEDs can be cut off along the above tangent line, without damaging other     parts. Various lengths of light bar can be customized at customer requests.

4. Topview lighting, high brightness, even mixture of colors, with 3M double-sided tape on the back for paste.

5. low power consumption, low heat generation, no glare, impact resistant.

6. DC12V/24V supply, safety and reliability

Certification:  Ce&RoHS

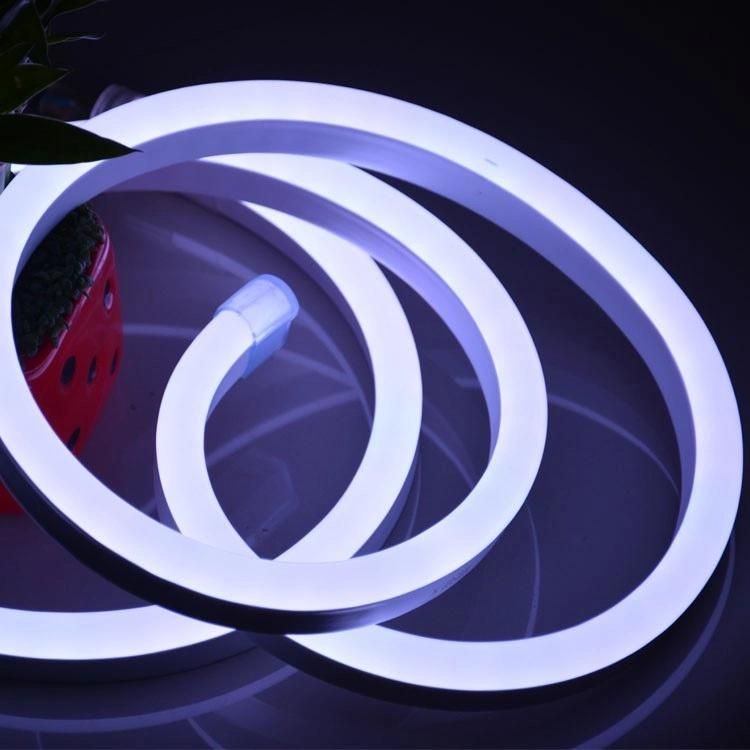

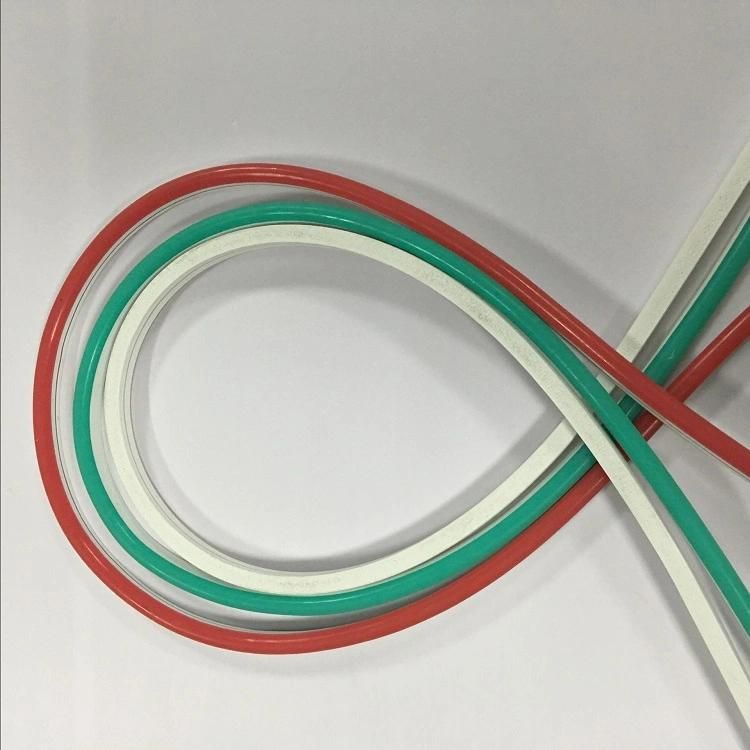

Product Show:





Instruction:
1. This product is affixed with double-sided 3M strong adhesive tape on the back of the product. Simply remove the protective film when installing and stick it directly to the desired location.
 2. The max number of connections for this type of light strip single-channel drive is 1 volume. Exceeding this quantity requires a power supply circuit. Each volume is 5M.
 3. Calculate the power supply, design the power distribution scheme: the number of LED strips of the budget * the power of the single strips = the total power consumption. (It is recommended that the power supply has a margin, 80% of the rated power is used)

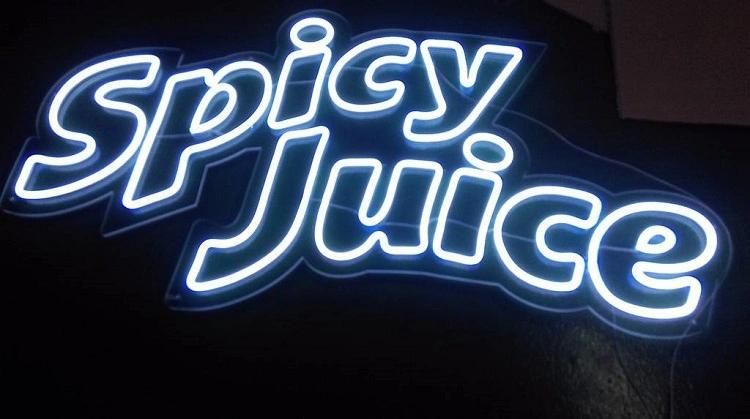

Application:

1.Countour or Border lighting for Outdoor/Indoor

2.Decorative Lighting and Architectural Outline

3.Light Engine for Furniture,Refrigerator etc

4.Horizontal Guid and Signage Lighting

5.Accent or Cove Lighting for Display

(Residential Buildings, Home,Office, Meeting Room ,School, Library,Factory, Warehouse,Hotel, Casino,Parking Garage, Hospital, Commercial Center, Supermarket, Shopping mall, anywhere you want.)



Note:
 1. Note that the output DC voltage of the switching power supply should be consistent with the rated voltage of the light strip. Do not light the light strip directly with the AC 220V.
 2. To ensure that the light strip is firmly and reliably installed, it is best to use a special 3M adhesive.
 3. Please cut the scissors at the marked place, such as outdoor installation, must deal with the middle junction waterproof measures.
 4. Do not bend the light strip excessively. The min angle must not be less than 10 degrees.
 5. It must be installed in an anti-static environment. It is recommended that the operator wear an electrostatic ring.
 6. Operating temperature -50 °C ~ 70 °C;
 7. Try to avoid strong acids and alkalis around the work environment.
 8. If the working environment is outdoor, please do a good job of waterproofing the butt joints.
Packaging & Shipping:

Packed in carton
Deliver time: 7-12 workdays
Shipppng by air/ by sea

 About Us:

1.we can  make the products that you need;

 2.we can  product better products on the bacis of reasonable price;

 3.we can delivery the goods in short time.
