• Beam Angle：120 Degree
• Lifetime：>30, 000 Hrs
• Ceritification：CE,UL,Rosh,Lm-79,Lm-85
• Warranty：3 Yrs
• Min Cut：50mm
• Qty of LEDs：60 PCS Per Meter
• LED Luminous：22-24lm, 24-26lm, 27-29lm
• Transport Package：500 Ms,Carton
• Specification：5000 X 8(10) X 1.3mm
• Trademark：MYNICE,OEM,ODM
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：50000 Meters Per Month

Basic Info.

Beam Angle 120 Degree Lifetime >30, 000 Hrs Ceritification CE/UL/Rosh/Lm-79/Lm-85 Warranty 3 Yrs Min Cut 50mm Qty of LEDs 60 PCS Per Meter LED Luminous 22-24lm, 24-26lm, 27-29lm Transport Package 500 Ms/Carton Specification 5000 X 8(10) X 1.3mm Trademark MYNICE/OEM/ODM Origin Shenzhen, China HS Code 9405409000 Production Capacity 50000 Meters Per Month

Product Description

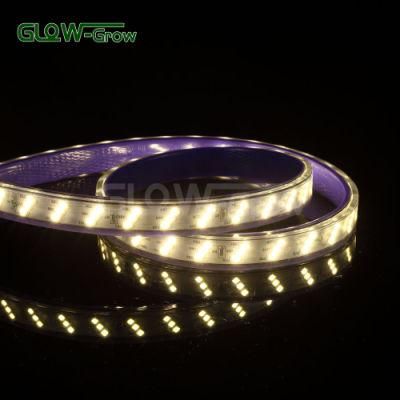

60LEDs/M High Efficiency High Bright SMD2835 LED Strip

Techincal Data:
Item No.        Nominal Voltage        Color                  Luminous Ffficacy
R060AA10A    12V/24V                 W/R/G/B/Y/P               7.2W


1. Tolerance range for optical and electrical data: -15/+15%.
2. All value @ ta=25ºC
3. Tolerance range for the supply voltage: 12V:±5%.

Application Data:
Max connection number   100 METERS
Ends of led strip (Wire)      150mm
Ambient temperature         -25ºC to +50ºC
Max working temperature      65ºC
Storage temperature          -40ºC to +85ºC
Risk group(EN62471:2008)      1
Certification list       CE/UL/ENEC/RoHS/LM-85

Shipping:
1. FedEx/DHL/UPS/TNT for samples/small orders, Door-to-Door;
2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery port: Shenzhen

Noted:
_ The power cable should meet the actual maximum current and power.
_ All the end point of wire should be treated with waterproof;
_ Pay attention to the maximum number of connections, prohibit overloading.
_ All the power supply must has the corresponding certification.
_ Our company reserves the right of final interpretation.
_ Subject to change without notice.
