• Model NO.：SW-2835-120LED
• SMD：2835
• Watta：12.8W,M
• Color：2200K-7000K
• Length：5meters,Roll
• Warranty：3 Years
• Beam Angle：120 Degree
• Package：Ani-Static Bag with 5 Meters
• LED Quantity：120LED,M
• PCB Width：10mm
• Transport Package：Case
• Specification：5meters,roll
• Trademark：Starwire
• Origin：Shenzhen China
• HS Code：8513109000
• Production Capacity：400000meter,Month

1. Item No.SW-2838-120LED2. LED Type60pcs 2835/Meter3. Driving modeConstant Voltage4. Power12.8W5. Luminous Flux22-24LM/ led6. Beam angle1207. Input voltageDC12V/DC12V8.LED Quantity: 120LEDs9. Color Temperature2200-7000k10. IP rateIP2011. Structure&material aluminum plate+LEDS12. CertificateCE,UL,ROHS, LM-8013. Warranty3 years warranty14. Working temperature-20~+45°C15. Stock temperature-30~+60°C16.Size5000*10mm17.Cascade Quantity5Meter/roll18.Life time5000h19.BrandSTARWIRE/OEM/ODM is avaliable20.OtherIP68/IP67/IP65/IP44/IP20 are avaliable
 Item NoDescriptionSolution for useSMD2835-140led

2.5m/roll / SMD2835 / 140pcs / 6mm PCB / DC24V / 10W / 1150lm / CRI>80 or >90 /  WW/NW/CW

With 1013 aluminum profile,

Lighting output more even, no spot

SMD2835-140led

2.5m/roll / SMD2835 / 140pcs / 10mm PCB /  DC24V /10W / 1540lm / CRI>80 or >90  / WW/NW/CW

With 1612 aluminum, its light output is very goodSMD2835-182led

2.5m/roll / SMD2835 / 182pcs / 10mm PCB /  DC24V 15W / 1800lm / CRI>80 or >90 / WW/NW/CW

With 1612/1919 aluminum, its light output is very good

 Starwire==Your Reliable & Valuable Partner in China

1. Professional:

1) We have been working on LED Strip Lights for more than 5 years;

2) Various Design=OEM Strip VS Aluminum profile Available;

3) Supply led strip, led profile, led controller, connector wire, led driver, DMX, etc.

2. Quality:

1) All the products will go through 7 checks during production, And the finished products

with 48 hours Aging-test;

2) EU/Chinese Design Patent + CE/RoHS Approved + UL is pending;

3) Warranty: 2 years stadandrd period, 3 years for special request.

3. Service:



2) Reply within 6 hours;

4. Sample Required:

Available from Stock & Fast Delivery!

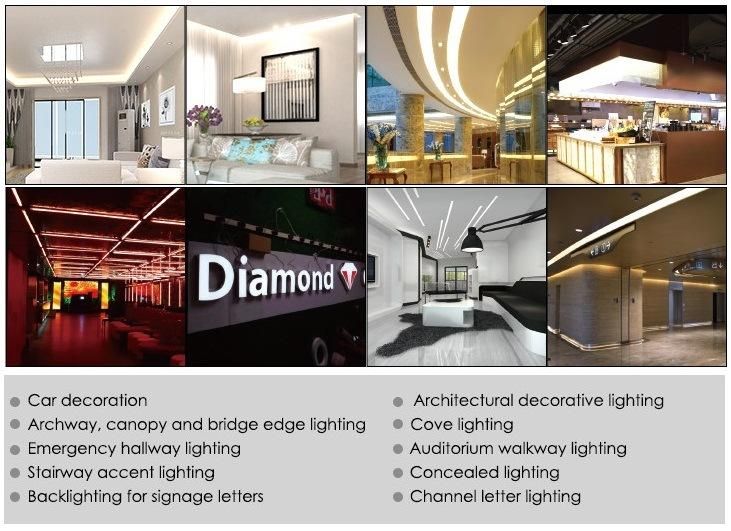

Application:

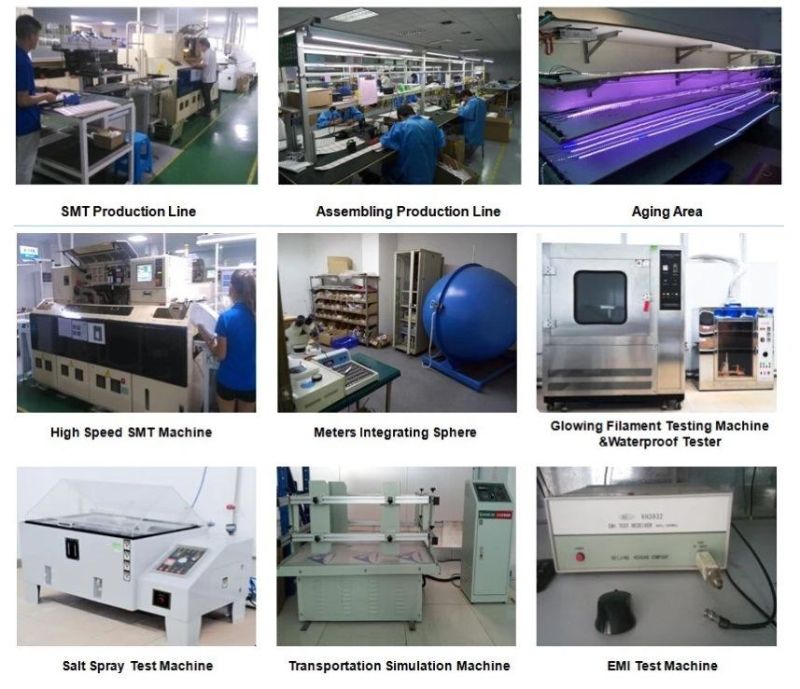

Company Information:

FAQs
Q1: Can I get some free samples?
A1: Yes, free samples are available for your test, with freight collect or prepaid by Paypal or Western Union.

Q2: How can I test STARWIRE LED STRIP?
A2: Connect the wire of LEDSTRIP to your own power supply whose output voltage should be DC12V or DC24V.If you do not have such a power supply, please ask us to provide with samples. Meanwhile, pls kindly note the +/- marks on the wire and connect to the +/- pole of power supply correctly.

Q3: Do you also sell power supplies or extra connectors for STARWIRE LED STRIP?
A3: Yes. But please make sure the power supply should allow some capacity to protect itself and modules with 20%~30% capacity unused, i.e. Power Input is 20%~30% more than the exact power consumption of LED STRIP connected to it.

Q4: Do you accept OEM or ODM service?
A4: Yes. Lead time for ODM sample is around 3 days and for bulk order needs around 2 weeks.

Q5: What is the warranty for your injection LED modules with lens?
A5: We offer 3-5 years warranty ,

How to contact us?
Contact Mr Michael or write down your inquiry in the below blank column, and click "Send" now!

DC12V /24V Flexible Waterproof 60LEDs/Meter Digital SMD2835 LED Strip lighting

Welcome to get your inquiry!
