8mm/10mm Connector LED Strip for 5050/3528/ 2835 LED Strip
MSS LED Lighting Co., Ltd.- Certification:UL, RoHS, CE
- Power:6W, 12W, 14.4W Per Meter
- Emitting Color:White, Warm White, Red, Green, Blue, Yellow
- Voltage:DC12V,DC24V
- IP Rating:IP20, IP33, IP65,IP68
- Macadam Level:3-5 Step
Base Info
- Model NO.:2835 led strip
- Max.Length:10m,Roll LED Strip
- Warranty:3 Years
- Product Name:LED Strip 2835 60 LED
- Transport Package:Anti-Static Package
- Specification:5000*10mm
- Trademark:MSS LED,OEM,ODM
- Origin:China
- HS Code:9405409000
- Production Capacity:100, 000m,Month
Description
Outal carton:45x25x25.6cm, Anti-static bag:186x197x0.12mm.
5 meters per reel, 1 reel per bag, 50 bags per boxes.
Installation and description and attention
1. Power supply should have necessary short circuit and over-voltage protection and other functions. No use un-isobaric power supply. And Insulated handle is needed.

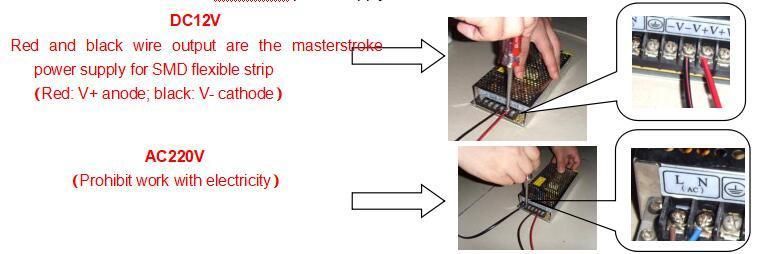

The diameter of red and black wire is according to the quantity of the strips, the distance between power supply and SMD flexible strip, power of strip and other factors. Commonly, the bigger longer distance, the bigger power and the more strips, and the larger of the diameter. Suggest to use RV( single line with several cores wire) wire as masterstroke, flexible and easy to connect. Please put extra masterstroke if single one support over 100W.
2. Fit the strips according to the actual situation.

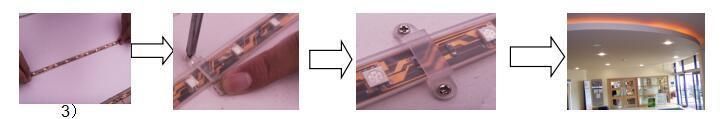

1) Spread the strip flatly where you want to equip 2) As per the following diagram, use transparent clips to fit strips. Every 4 pcs in a meter. Theclip should be equipped between LEDs, no press on LED.
3) Connect with masterstroke, every 5 mtrs in one main line according to the character of strips. Under with power supply on two ends, it can connect with 10 mtrs.

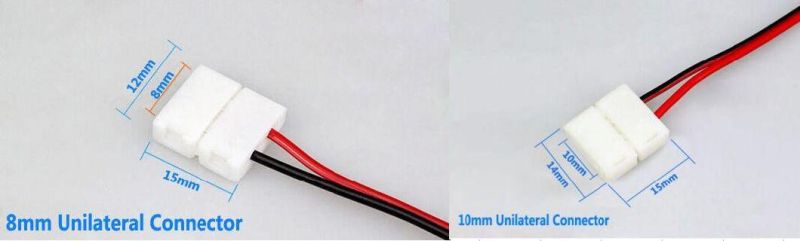

Connector Specifications:
Type: LED Connector
Size: 8mm / 10mm
Working Tempreture:0-50°c
Storage temp: -20~60c
Material: PVC
Suitable for Width of 8mm 3528 LED light strip
10mm 5050 LED light strip
Easy to use and protect the weld

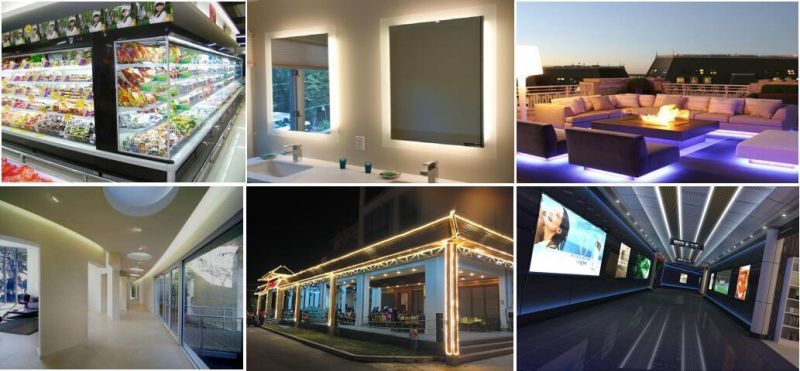

Applications
1. Curve lighting2. Freeze lighting3. Light bar light source3. Special sign
