DC12V/DC24V 60 LEDs/Meter 5050 RGB LED Strips

Mynice Optoelectronics Co., Ltd.
  • Certification：UL, RoHS, CE, Bis
  • Power：14.4 W,M
  • Emitting Color：RGB Color
  • Voltage：24V DC or 12V DC
  • IP Rating：IP20,IP65,IP66,IP67,IP68
  • LEDs Qty：60PCS,Meter

Base Info

  • Model NO.：R060AA10Q,R060AA10R
  • FPC Width：10mm

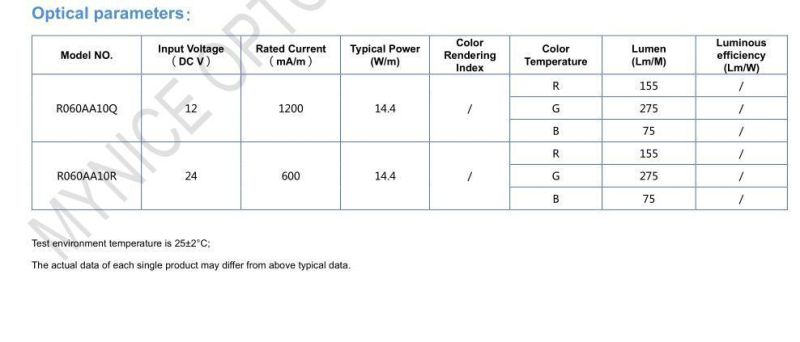

  • Lumens：155lm,M Red, 275lm,M Green, 75lm,M Blue
  • Min. Cut：50mm for DC12V, 100mm for DC24V
  • Specification：5M per roll
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：1, 000, 000m,Month

Description

Basic Info.

Model NO. R060AA10Q/R060AA10R FPC Width 10mm Lumens 155lm/M Red, 275lm/M Green, 75lm/M Blue Min. Cut 50mm for DC12V, 100mm for DC24V Specification 5M per roll Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

DC12V/DC24V 60 LEDs/meter 5050 RGB LED strips
Application
Application: main lighting system, indirect lighting, covered channel lighting, outline and decoration lighting in such as hotel, shopping
mall, home, cabinet, display shelf etc.

Main features
New ID design, simple and pretty, highly textured;
SMD5050RGB LEDs, good light mixing;
2oz double sided copper circuit board with low voltage drop;
Long lifetime thanks to high lumen maintenance LED.
Matching control and dim solutions, easy to use;
Certification: UL, CE, RoHS, FCC,TUV etc.

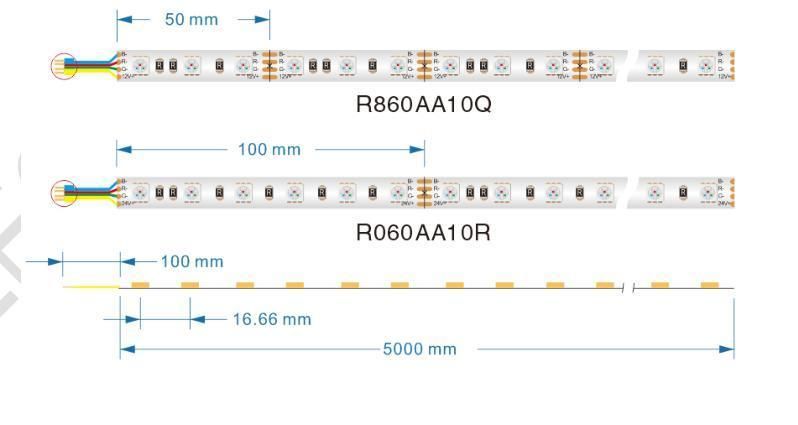

Main ParametersProduct Size 5000*10*2.1mm
Cutting Unit 100mm(50mm)
LEDs Pitch 16.67mm
LEDs Quantity 60Pcs/m
Max. Cascade Length 5m
Min. Bend Diameter 20mm
Mounting 3M
Operating Ambient  -25ºC~45ºC
Storage Environment -25ºC~60ºC / 60% RH
DC12V/DC24V 60 LEDs/Meter 5050 RGB LED Strips
DC12V/DC24V 60 LEDs/Meter 5050 RGB LED Strips

Package
DC12V/DC24V 60 LEDs/Meter 5050 RGB LED Strips

Instructions
Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.;
Please do not bend the strip into an arc with a diameter less than 20mm and the twist angle per meter is less than 1080º to ensure the longevity and reliability.
Do not fold it in case any damage of LED beads.
Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.;
Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid
damage.
LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40 ºC.Storage temperature: --25 ºC ~ + 60 ºC/60%RH.Please use the strips without waterproof within indoor environment with humidity less than 70%.
Please be careful during operation. Do not touch the AC power supply in case of electric shock.
Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product.
Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
