2019 Hot Product Decorative Light SMD3528 Flexible LED Ribbon Strip
TOPLEDVISION PHOTONICS CO LIMITED- Certification：FCC, RoHS, CE, TUV,En62471
- Power：9.6watt,M
- Emitting Color：Warm White, Nature White,Cool White
- Voltage：12V,24V DC
- IP Rating：IP20,IP65,I67,IP68
- Type：Flexible LED Strip
Base Info
- Model NO.：TLV-FS3528Q120W
- LED Source：High Quality SMD3528
- LED：CREE,Epistar,Sanan LED Chip
- Model：Tlv-Fs3528q120W
- PCB：Electrolytic Copper Double-Sided Circuit Board
- LED Lumen：7-8lm,LED
- LED Quantity：120LEDs,M
- Watt：9.6W,M
- CRI：High CRI >80ra
- Color Temp：2700K,3000K,4000K,6000K,R,G,B,Y,P
- Working Life：50000h
- Certifications：TUV,Ce,FCC,IEC,En62471,Lm-80
- Warranty：2 Years
- Packing：5mts,Reel, Gift Box Packing or Anti-Static Bag
- Usage：Commercial,Office,Kitchen,Bar,Outdoor Light
- Transport Package：5mts,Reel 100reel,Carton
- Specification：5000x8x 1.8mm
- Trademark：topledvision
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：100000PCS,Month
Description
TLV-FS3528Q120W
High Bright, Energy saving and Long working life
a, Use quality and high lumen smd3528 led as light source and low bright decline.
b, 50% Lower power consumption than the traditional light.
c, Strip have a long working life at low working temperature control and good production processing.
Reliable quality and same color supply

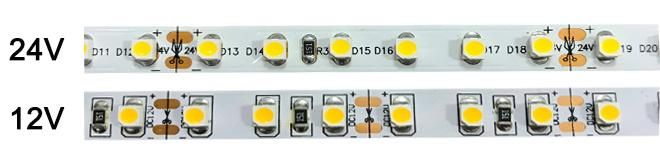

a, Every 3/6leds design for min unit which can be cut or connected, it dosen't effect other units when one unit off.
b, White color PCB made by rolled copper material which is flexible and not easy to break.
c, Always same led color temperature and strict production for Led strip to keep the same color and stable quality for every batch.
Support dimming
Led strip be controlled by different controller or dimmer, colors and brightness be controlled.
Cost-effective and easy installation
a, Large scare Mechanized production, it is economical and affordable.

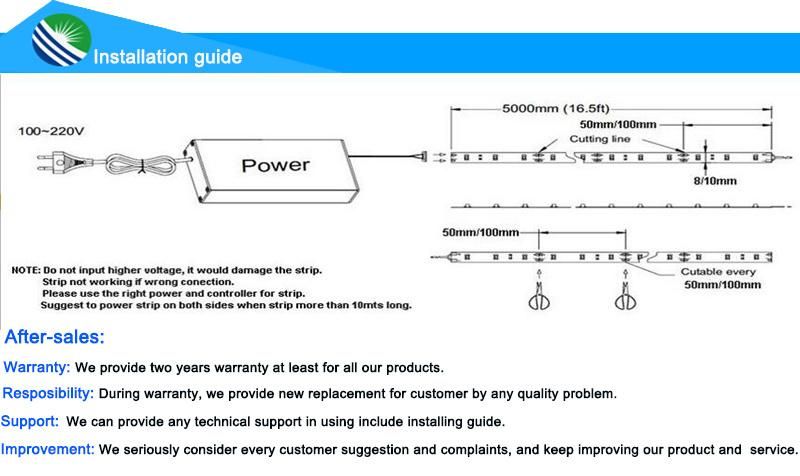

b, Easy installing way.

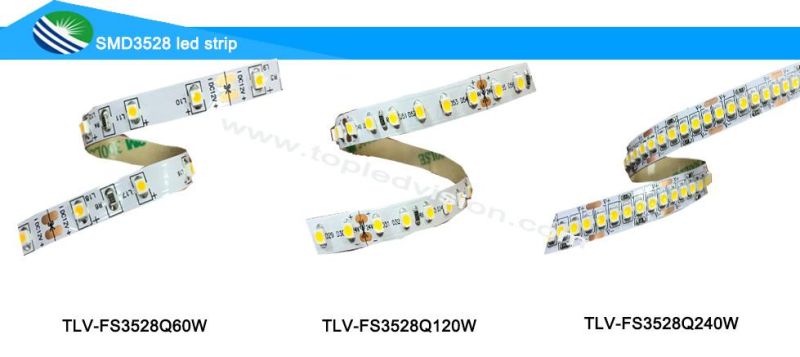

| Model | Led quantity | Output | Power | PCB Width |
| TLV-FS3528Q60W | 60leds/m | 12/24V DC | 4.8W | 8mm |
| TLV-FS3528Q120W | 120leds/m | 12/24V DC | 9.6W | 8mm |
| TLV-FS3528Q240W | 240leds/m | 12/24V DC | 19.2W | 10mm |

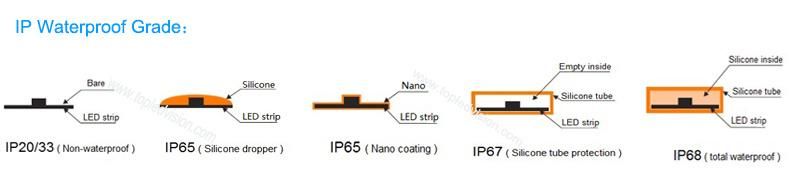

IP20 ( Bare Board ) be used indoor and keep away from rain wet
IP65 ( Silicone dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater

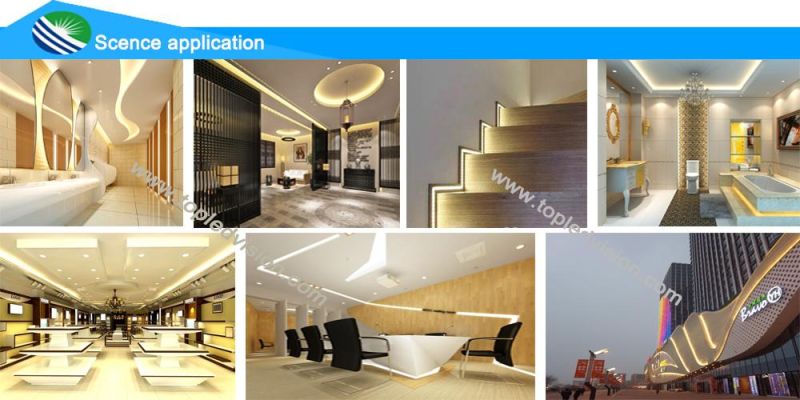

Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.

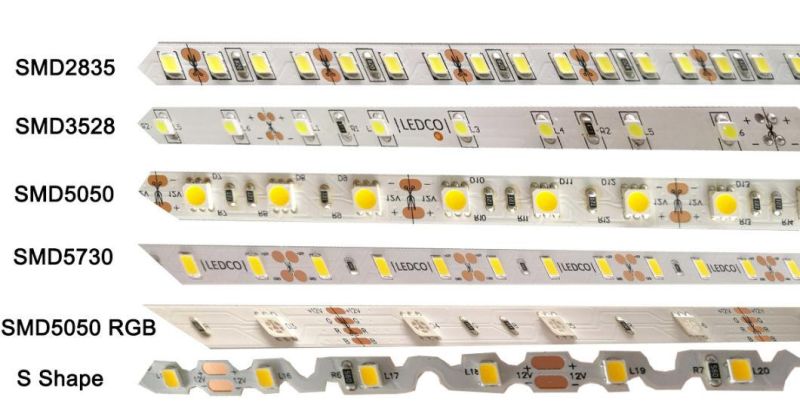

Other types of led strip for your reference:
| Q1: Do you have free sample? A1: Yes, we can offer you free samples, but you pay the shipping cost. |
| Q2: What is your minimum order quantity? A2: Usually MOQ is 50m, but we also accept small order for trail. |
| Q3: What's your delivery time? A3: Samples can be finished within 3-5 days, and bulk order is about 10-15 days according to quantity. |
| Q4: What's your delivery ways as usual? A4: Normally, we send the products by Express, Air or Sea transportation. |
| Q5: What's the payment term? A5: We accept T/T, PayPal or Western Union. |
| Q6: Do you offer OEM customized services? A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you. |
