• Model NO.：TW-5050
• Input Voltage(V)：12V
• Lamp Luminous Flux(Lm)：28.8-108
• Lamp Body Material：Silicone
• Working Temperature(ºC)：-25 - 50
• LED Light Source：5050 SMD LED
• LED Neon Strip Size：14*26mm , 8*16mm , 360°
• Item Type：Flexible Neon LED Strip Lights
• CRI (Ra>)：80
• Working Lifetime(Hour)：50000hrs
• Lamp Power：14.4W,M
• Product Name：12V SMD5050 50m 120LEDs,M Single Color W
• Keyword：LED Neon Light
• Lighting Mode：110V RGB LED Neon Light
• Application：Hotel, Foyer,Bedroom,Kitchen etc LED Sign Neon Str
• Transport Package：50m,Roll
• Specification：32cm*32cm*45cm
• Trademark：TW or OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：50000meters,Week

Dimensions:14*26mm / 8*16mm / 360°LED Chip:5050 SMD LEDLED Chip Brand:EpistarLED Quantity:60LEDsVoltage:12VWatt:14.4W/MColor:Article lampMaterail:Silicone led neon flexCut unit:5CM / 50CM / 100CMPacking:50 meter per rollWarranty1yearsCertificate:UL, CE, RoHS

LED neon strip light  Features:

1.LED lamps adopt new technology, the attenuation per 1000 hours is less than 5%, while the attenuation of traditional lamps is more than 30% per 1000 hours.

2.The product is patch structure, low heat, long life.

3.the use of conventional non-isolated power or isolated power supply, no stroboscopic, transverse accuracy plus or minus 5%.

4.The overall waterproof and dust level: ip44-ip68

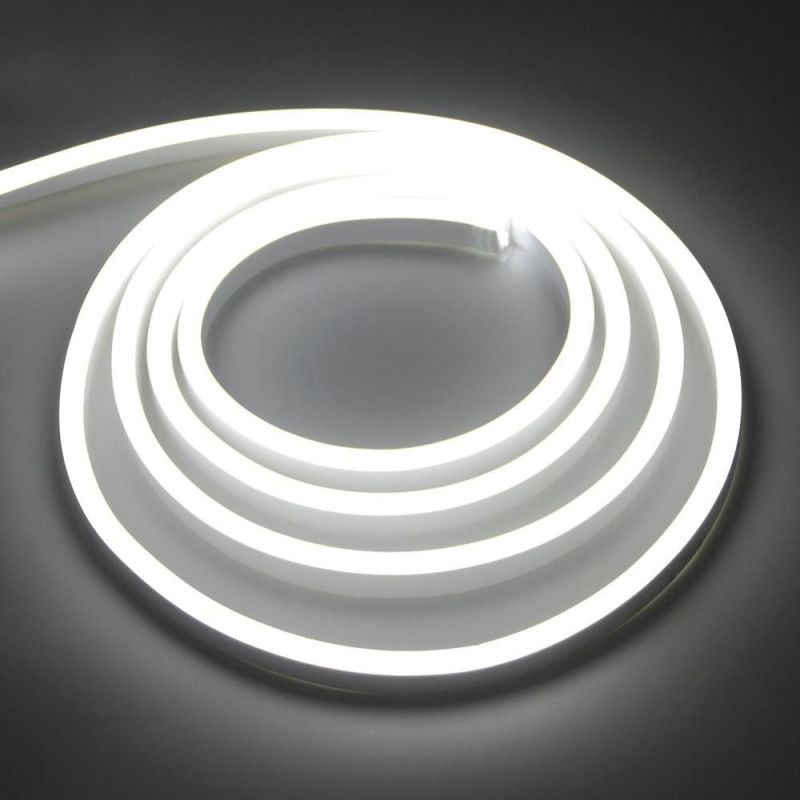

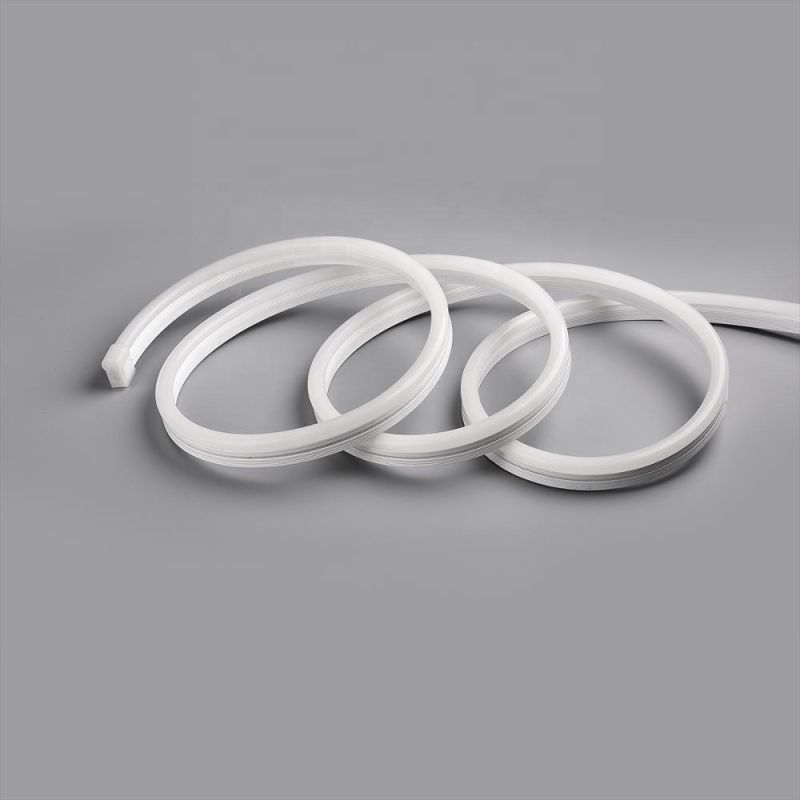

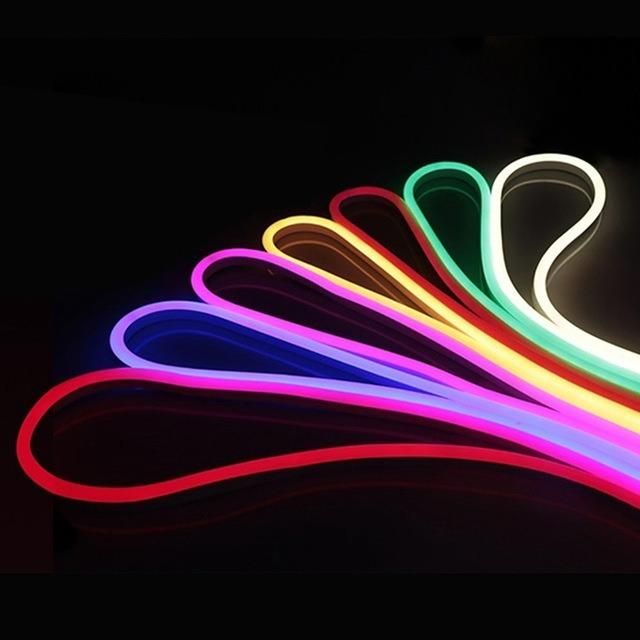

Neon Silicone LED Strips Photos:





Packing info:
Single package size: 60x40x30cm
100meters/roll  G.W: 26.0KG

Product Advantages:
1, Anit- yellowing and heat resisting silicon glue, chemical resistance acid and alkaline available for extremely terrible outdoor environment
2, Uniform and soft luminance, no light spot
3, Super brightness large chip, golden wire welded and copper led holder for quicker heat dissipation, high stability, longer life span.
4, Leadless SMT technique(ROHS certificated), smooth welding joint, firm connection of led and pcb.

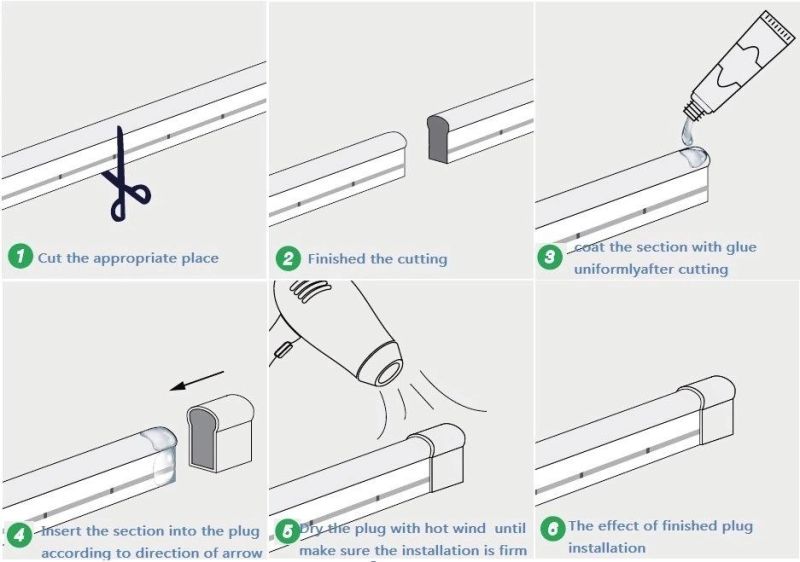

Cutting & Sealing:

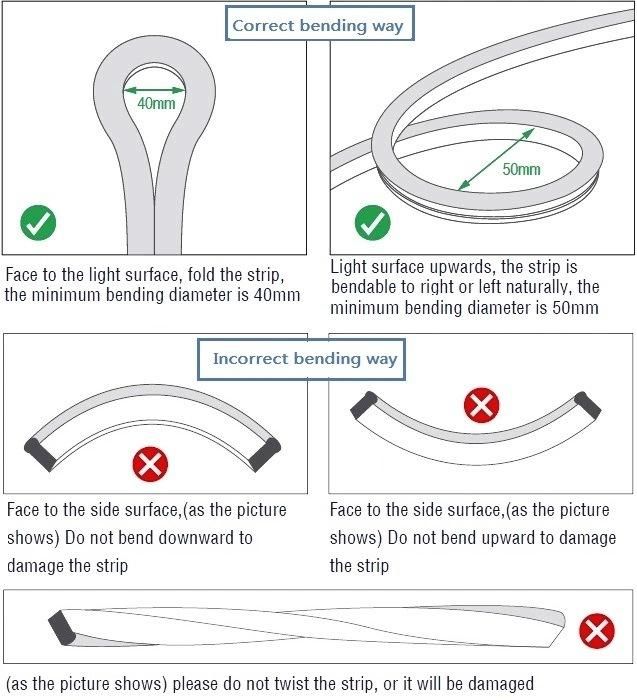

Bending Instrusion:



Installation Instrusion:




Certificates:

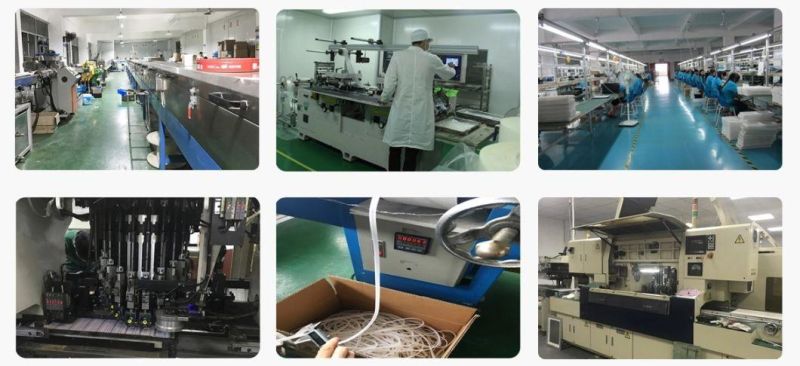

Factory Overview:
