• Model NO.：PSB601F,PSB602F
• PCB Color：White PCB Black PCB
• PCB Thickness：2oz,3oz
• LED Quantity：84LED,M
• Beam Angle：120 Degree
• Warranty：3 Years
• Wire Material：Copper Wire
• CRI：CRI>90
• Lumen：7-8lm,LED
• LED Type：SMD 2216 LED Chip
• PCB Material：Double Side Aluminum Layer
• Color Temperature：1800K,2300K,2700K,3000K,3500K,4000K,5000K,6000K
• Input Voltage：DC24V
• Wattage：9.6W,M
• Transport Package：Anti-Static Bag
• Specification：5000*10*0.2mm
• Origin：Guangdong
• HS Code：9405409000
• Production Capacity：10000meters,Month

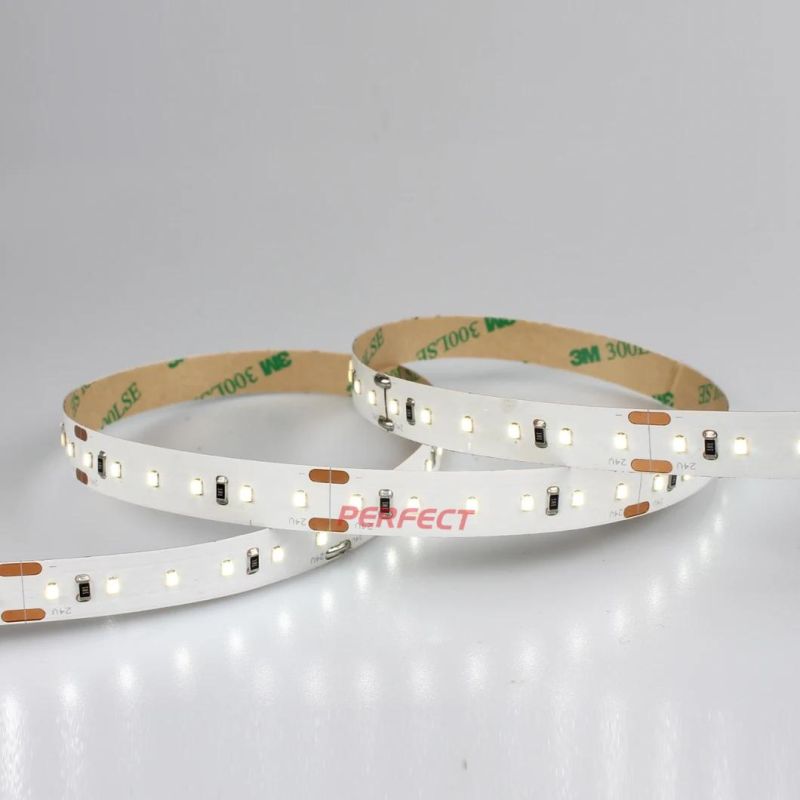

Detailed Photos

Good color temperature consistency and stable quality:
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.

Installation Instruction1.Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.
 2.We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters/roll.
 3. Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.

4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip.

5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.

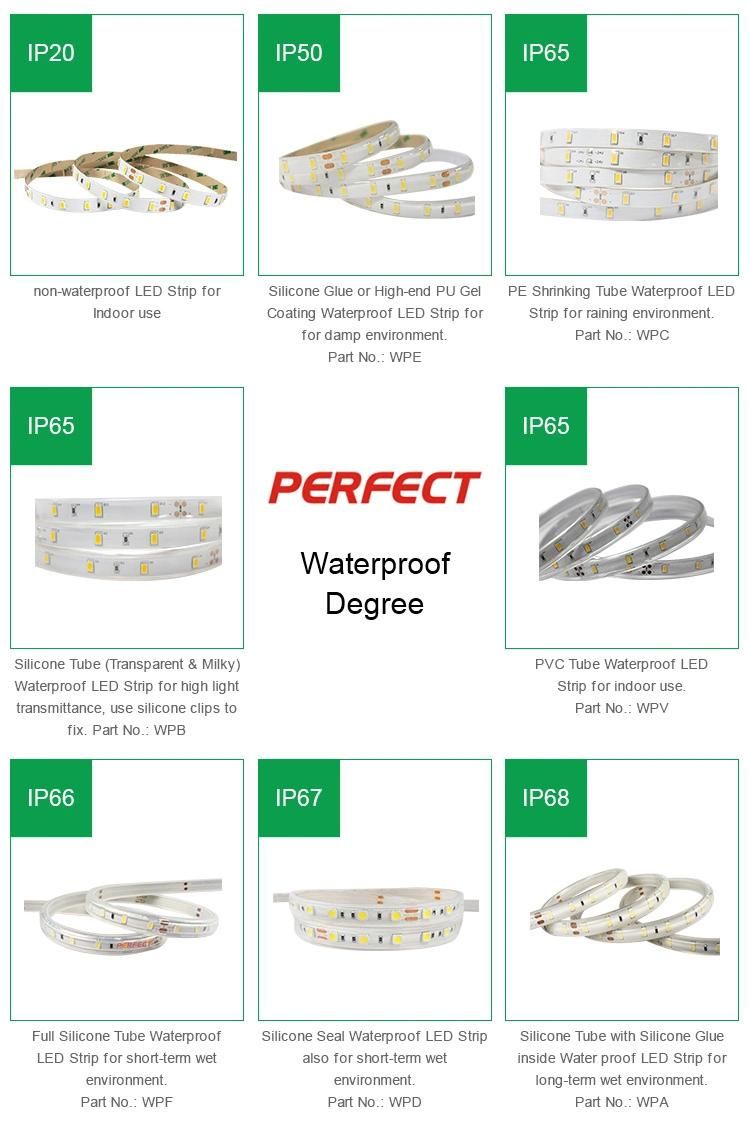

6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.

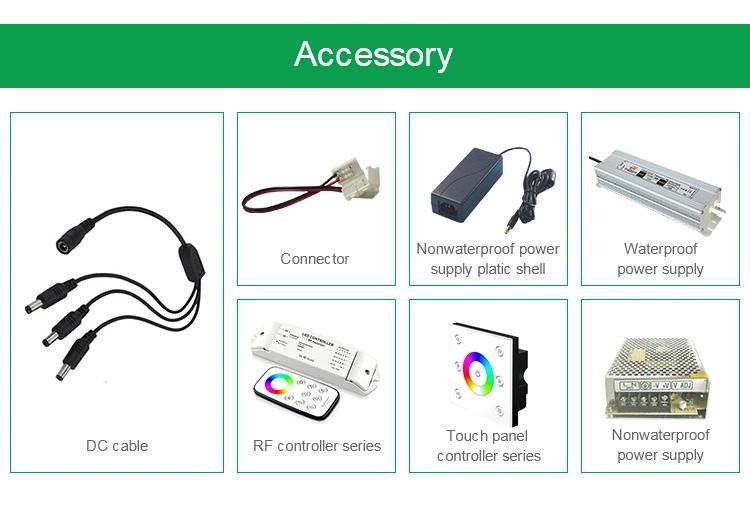

7.It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).






FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-3 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights in next order.
