10mm 12V 30LEDs Low Power Consumption High Brightness SMD5630 LED Light Strip

Mynice Optoelectronics Co., Ltd.
  • Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
  • Power：9.6W
  • Emitting Color：Changeable
  • Voltage：12V
  • IP Rating：IP68
  • LEDs/M：30

Base Info

  • Model NO.：R030DW10A
  • Watt/M：9.6W
  • Lumens/M：W,960 N,822
  • FPC Width：10mm
  • Transport Package：DHL
  • Specification：37*34*34cm
  • Origin：Shenzhen
  • HS Code：9405409000
  • Production Capacity：5000000

Description

Life Span50000HDriving Methodconstant voltageAvailable ColorR/G/B/Y/WW/W/CWAngle>120ºCWorking Temperature-40ºC-50ºCStore Temperature-50ºC-60ºCIP DegreeIP20-68

Wires & Series Connection Length:WiresInput end connect two-core RVV red and black wire , Red : VI+;Black : VI-Stand Length in Serial Connection5mMaximum Length in Serial Connection≤5m

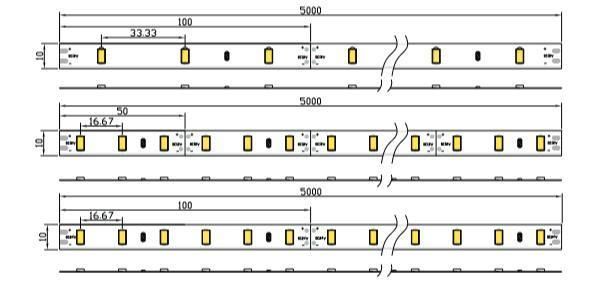

Dimension(Unit:mm):

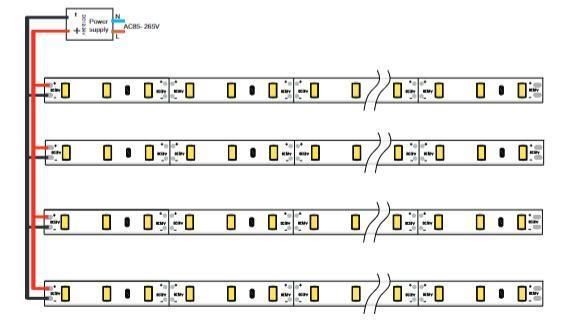

10mm 12V 30LEDs Low Power Consumption High Brightness SMD5630 LED Light StripConnection Diagram(Unit:mm):
10mm 12V 30LEDs Low Power Consumption High Brightness SMD5630 LED Light Strip
Wavelength Scope(nm/K);  Red lightGreen lightBlue lightYellow lightWarm whiteWhite lightCool white619-635512-528463-475584-5952700-33005500-7000>8000

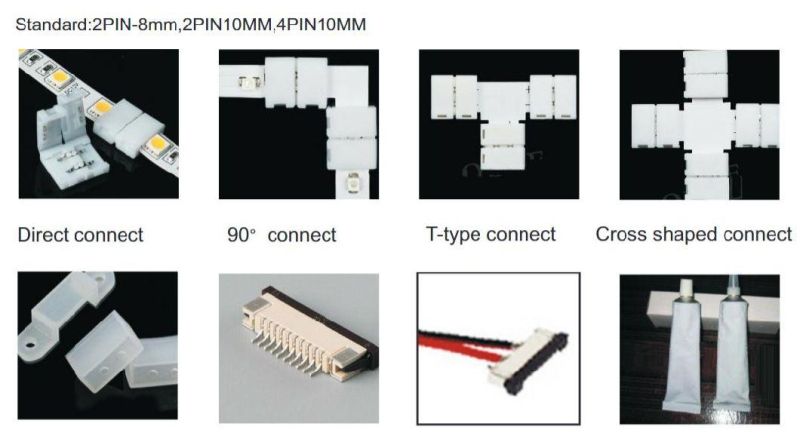

Connection type:
10mm 12V 30LEDs Low Power Consumption High Brightness SMD5630 LED Light Strip10mm 12V 30LEDs Low Power Consumption High Brightness SMD5630 LED Light Strip
