• Model NO.：R7C0GW10A-GW
• Color Rendering Index：80
• Color Temperature：3000K
• Lumen：680lm
• Luminous Efficiency：113lm,W
• Transport Package：DHL
• Specification：52*37*26CM
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：5000000

Basic Info.

Model NO. R7C0GW10A-GW Color Rendering Index 80 Color Temperature 3000K Lumen 680lm Luminous Efficiency 113lm/W Transport Package DHL Specification 52*37*26CM Origin Shenzhen HS Code 9405409000 Production Capacity 5000000

Product Description

P/N: R7C0GW10A-GW R7C0GW10B-GW

Areas of application
-It is suitable for high temperature places such as sauna room, bathroom, boiler room, steel factory and ,etc.

Product main benefits
-Resistance to ultra-high temperature up to 120°, humidity up to 60%.
-Use customized reinforced LED bracket, strong stability, low light decay.
-New type of rolled copper process, good heat dissipation and strong conductivity.
-Environmental protection grade silicone hollow one-piece extrusion, waterproof grade IP67.

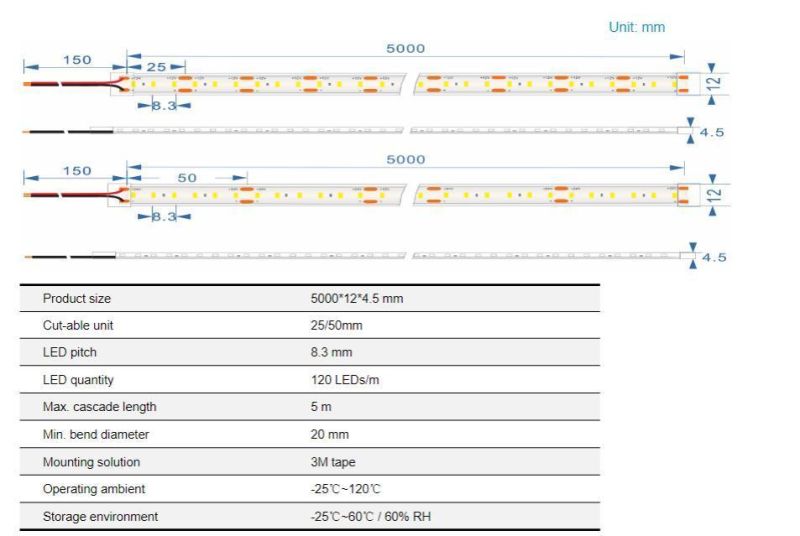

Main specification :

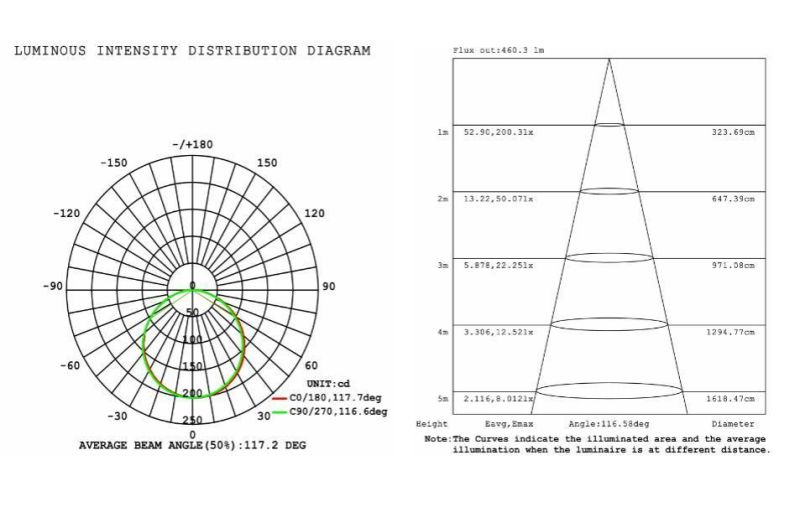

Photometrical data:

Optical illuminance parameters

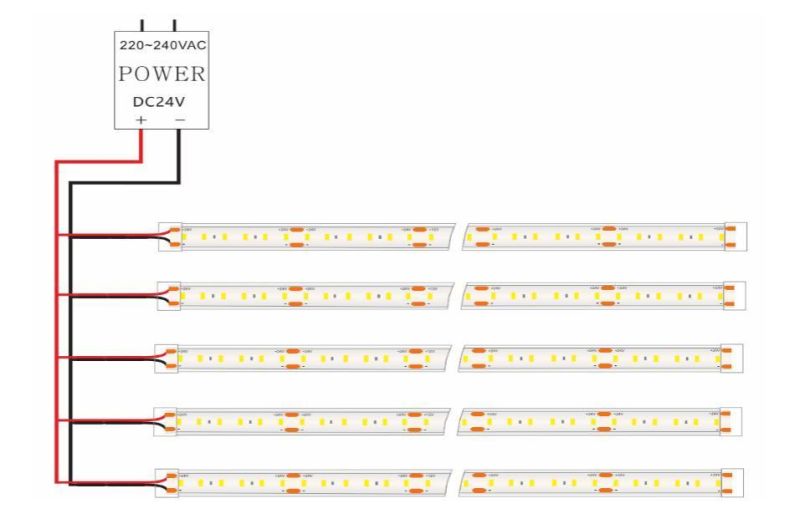

Product wiring diagram:

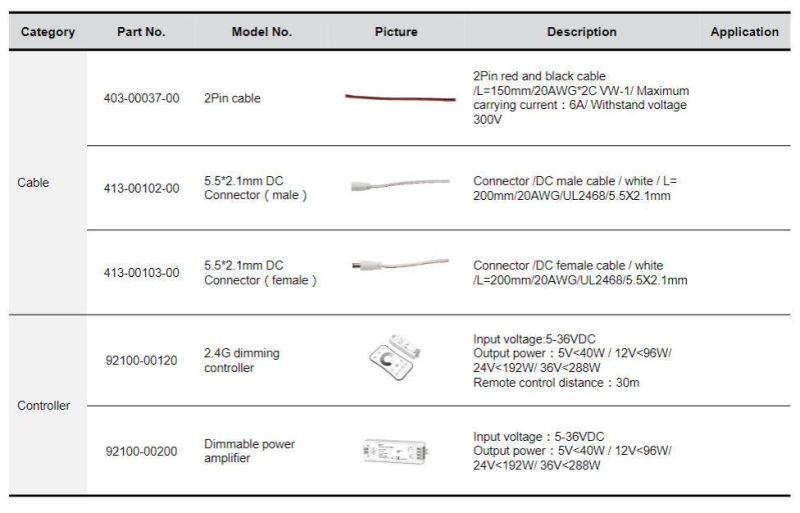

Optional accessory:

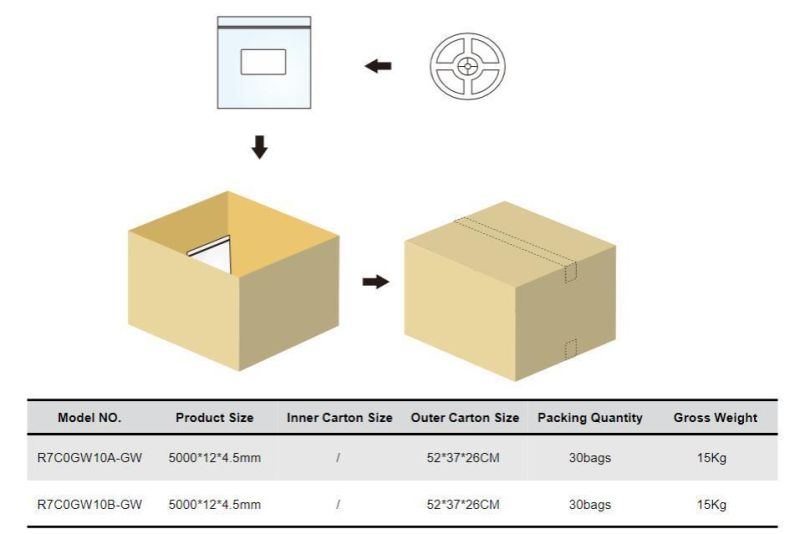

Package:

Supplementary Product Information:

-Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.
-Installation by qualified electrician only.
-Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%. -Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
-Do not fold it in case any damage of LED beads.
-Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
-Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.
-LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 °C ~ + 40 °C.Storage temperature: -25 °C ~ + 60 °C/60%RH.
-Please use the strips without waterproof within indoor environment with humidity less than 70%.
-Please be careful during operation. Do not touch the AC power supply in case of electric shock.
-Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
-Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
