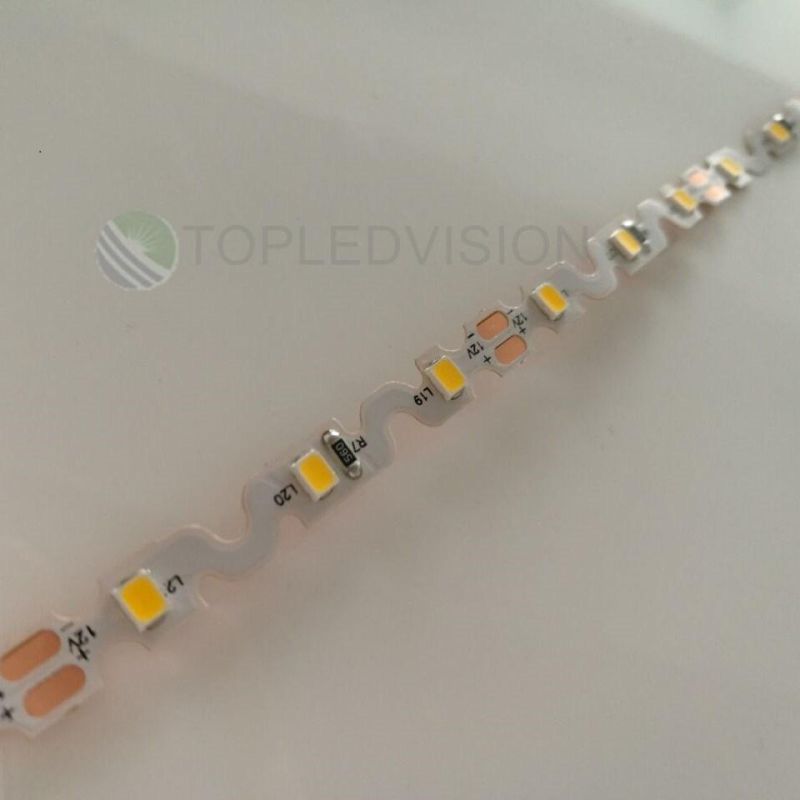

Type S LED Sign Light Lamp Strip SMD2835 for Luminous Letter

TOPLEDVISION PHOTONICS CO LIMITED
  • Certification：FCC, RoHS, CE, TUV Ce, IEC,En62471, Lm-80
  • Power：11-15W
  • Emitting Color：White
  • Voltage：12V
  • IP Rating：IP33
  • LED Source：Quality SMD2835

Base Info

  • Model NO.：TLV-FS2835-60L-12W
  • LED Type：High Bright SMD2835
  • Type：S Shape Flexible LED Strip
  • LED：99.99% Gold Wire, Red Copper Pad
  • LED Luminous：24-26lm, 26-28lm
  • CRI：70ra+, 80ra+, 90ra+ for Available
  • PCB Width：6mm, 8mm Flexible PCB
  • Usage：Emitting Words, DIY, Ad, Signs Lighting, etc
  • Working Life：>30, 000hours
  • Warranty：2 Years

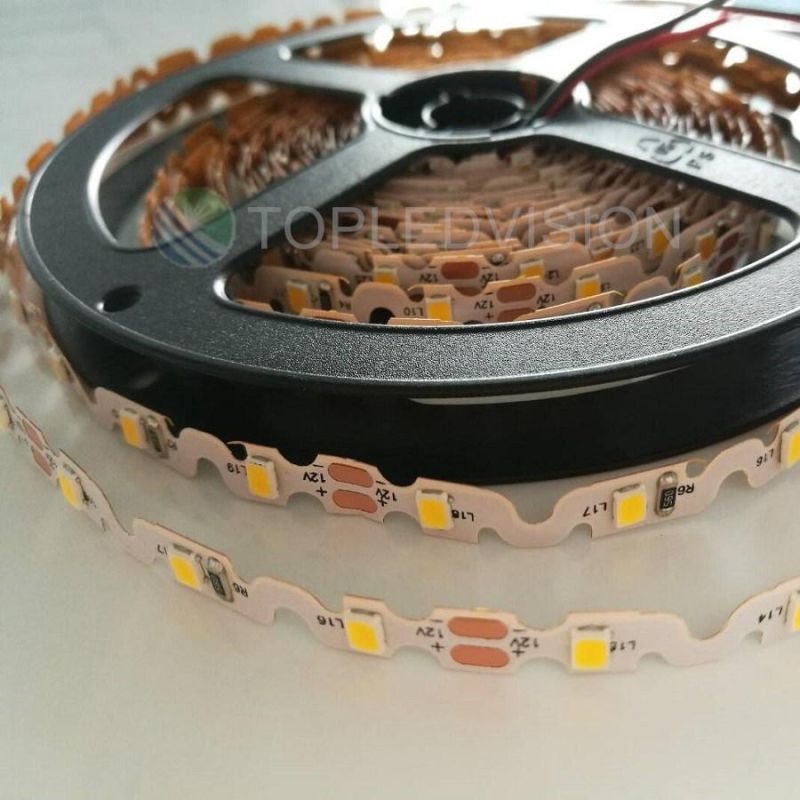

  • Transport Package：5mts,Reel with Box Packing
  • Specification：SMD2835 60LEDs,m
  • Trademark：Topledvision
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：10000PCS,Month

Description

ItemS shape 2835 LED stripLED Quantity60LEDs/mPower Consumption12Watt/mColorWarm White 3000K, Nature White 4000K, Cool White 6000K, R, G, B, Y, Orange, PurpleLumen Flux24-26lm, ( Epistar ) 26-28lm/LEDWorking Voltage12V DCSize(L*W*H)5000x6(8)x1.3mmCuttable size50mm, 3LEDs/cutProtect GradeIP20, IP67, Nano coatingBeam Angle120ºWorking temperature-20º C ~ +55º CWorking Lifespan50,000hoursWarranty2 yearsCertificateTUV CE, FCC, IEC/EN62471, LM-80Package5mts/reel, Box packing (132x132x15mm)Weight0.1kg (IP20)
Type S LED Sign Light Lamp Strip SMD2835 for Luminous Letter
Type S LED Sign Light Lamp Strip SMD2835 for Luminous Letter
Features as follow:
1.LED source: 24-28lm/LED high brightness and low decline(Less than 3%) after 3000hours working.
2. Modular design: every 3LEDs as a module and work independently.
3. Voltage: 12V DC input voltage can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. Support customized size: 5meters/reel, you can cut the LED strip into the size you want ( support customized length).
6. Dimming support: by manual or IR, be able to adjust the LED strip brightness.
7. Lifespan: more than 50,000hours working life with 2 years warranty.
8. Easy installation: 3M tape at the back of LED strip and maintenance free.
9. ≤ 15º C temperature rise
10. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
11. TUV CE, FCC, LM-80 and IEC/EN62471 photobiological safety compliant.

Applications
1. Mini word, resin word, luminous letter
2. Ad, signs lighting, DIY lights for home use
3. Auditorium walkway lighting
4. Stairway accent, Concealed lighting
5. Archway, canopy and bridge edge lighting
6. Emergency hallway and exit path lighting

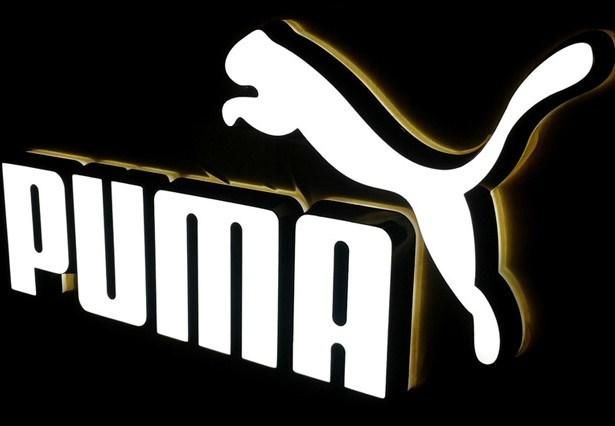

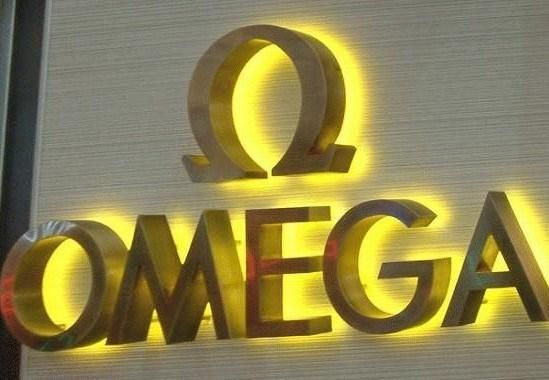

7. Backlighting for signage letters
8. Channel letter lighting
9. Any narrow space applications
Type S LED Sign Light Lamp Strip SMD2835 for Luminous Letter  Type S LED Sign Light Lamp Strip SMD2835 for Luminous Letter
FAQ:
Q1: Do you have free sample?
Yes, we welcome sample to test and check quality.
Q2: What's your delivery time?
Sample can be finished within 5 working days, and bulk order is about 7-15 working days according to quantity.
Q3: What's your warranty?
Mostly, our products are 2 years warranty with CE/ RoHS, also we can offer 3 years warranty, but the price will be a little bit higher.

Q4: What is your minimum order quantity?
Usually MOQ is 300pcs, but we also accept small order for trail.
Q5: What's your shipment?
We choose it on your favor. We will research the most economical and reliable shipping company to transport the goods.
Q6: Do you offer OEM customized services?
Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
