5050 Rgww LED Strips

Shenzhen Led Home Opto-Electronics Co., Ltd.
  • Certification：EMC, RoHS, CE, SGS
  • Power：16.8W Per Meter
  • Emitting Color：RGB+W+Ww (RGB+CCT) (Red+Green+Blue+White+Warmwhite
  • Voltage：DC12V , 24V
  • IP Rating：IP20, IP62, IP66, IP67, IP68
  • LED Qty：60LED Per Meter

Base Info

  • Model NO.：RGBWW strips
  • Beam Angle：120degree
  • SMD：5050(5chip in 1 LED)
  • CRI：Ra >80
  • Working Hour：50000hours
  • Warranty：3years
  • Transport Package：Reel to Antistatic Bag, Then in Paper Box
  • Specification：5meter per reel, 10meter per reel
  • Trademark：Easing Home
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：10000meter Per Day

Description


Basi Parameter:LED Qty60LED per meterSMD Type5050  ( 5 chips in 1 LED)PCB Width12mmPCB Material2Ounce FPCPCB Color:white, Black, BrownWarranty3years
Specification ParametersLuminous Flux(lm)RGB: 360-385lm
WW+PW: 595-625lm
RGB+WW: 620-645lm
RGB+PW: 685-715lm
RGB+WW+PW: 930-965lmInput VoltageDC12V / 24VCRIRa >80ColorRed+ Blue + Green+ white + warm white ( 5chips in 1)Power16.8W per meterCurrent/LED70mABeam angle120degreeWorking temperature-20ºC~+45ºCMinim cuttable length100mm (6LEDs 24V)
50mm (3LEDs 12V)
AcceessoriesEnd cap, mounting clips, 300P 3M tape

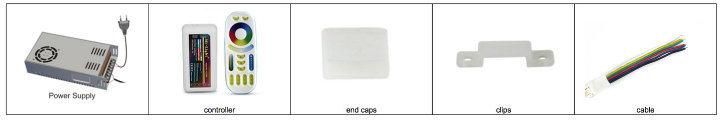

Accessories:
5050 Rgww LED Strips

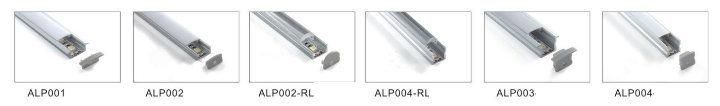

Adviced Aluminum Channel:
Any aluminum profile that suitable for 12mm PCB LED strip. we have over 300 types LED profiles. if you
have special request, pls contact us for more details on our profile catalogues. thanks.

5050 Rgww LED Strips

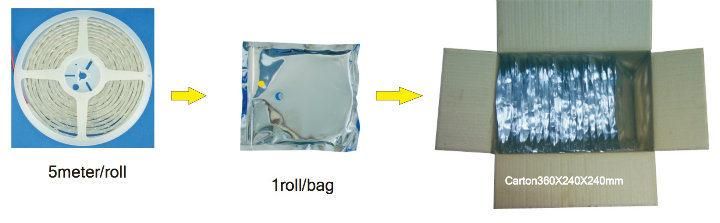

Package:
5050 Rgww LED Strips
Application:
The product apply advertising signs,hotel,KTV,computer machine box,mechanical equipment,car
