High Bright SMD3528 Flexible 60LEDs/M 7.2W/M LED Strip Dimmable
DEVRY GROUP PTE. LTD.- Certification：RoHS
- Power：6W,10W,18W
- Emitting Color：Changeable
- Voltage：12V
- IP Rating：IP67
- Type：LED Strip
Base Info
- Model NO.：DV-FL-60S3528-W-12
- LED Type：SMD 3528
- Color：White, Warm White, Cold White
- Life(H)：50000
- View Angle：120°
- Cutting Unit：Every 3 LEDs Cuttable
- Length：5m,Roll
- Application：Hotel,Advertising,Shopping Mall
- Transport Package：Carton
- Specification：CE. RoHS
- Trademark：DEVRY
- Origin：Made in China
- HS Code：9405409000
- Production Capacity：500000meters,Month
Description
Red/ Yellow/ Blue/ Green/ Pink/ Amber/ Purple Cutting unit 5cm; every 3leds cuttable 2.5cm; every 3leds cuttable 1.2cm; every 3leds cuttable CRI(Ra) ≥70; ≥80; ≥90 IP rank IP20, IP65; IP67 Beam Angle 120° 120° 120° Working Temperature -20~55ºC -20~55ºC -20~55ºC Packing 5M/Roll; 300LEDs/Roll 5M/Roll; 600LEDs/Roll 5M/Roll; 1200LEDs/Roll
3528SMD Flexible Strip Light is widely used in the indoor and outdoor lighting projects, no matter commercial lighting or home lighting. It is a free design decoration lighting. Application is mostly in Signage, light box, architecture, bridge, roof, garden, indoor shop fitting, cabinet, furniture, background, hotel etc. Strip is flexible and easy to be installed, free cut, free bend, free connect. Varity color are available.
Advantage:
*Long Lifespan is more than 30,000hours.
*Wide applicability, easy to install and maintain;
*Extremely luminous, with wide viewing angle;
*PCB flex board, unique waterproof technique;
*Energy saving and environmental conservation, long lifespan;
*Operation low voltage (DC12V) for human safety, various colors available.
* White, Color temperature as 3000K, 6500K, 10000K. Red, Yellow, Blue, Green, Amber. Pink. Purple.
* Low voltage, safe LED strip. DC12V.
* Width of the PCB is 5mm/8mm/10mm.
* led quantity, 60leds/m; 120leds/m; 240leds/m
* Protect degree: Indoor IP20, Outdoor IP65.
* ERP Spectroscopy.
* Light instantly without warm-up.
* Decade is 5meters.
* Bent freely.
* Easy to install and preserve; with 3M self adhesive tape.
* All of materials are accord with RoHS standards.
* Application: Letter signage, channel letter, 3D letter, Light box, decoration lighting, shop fitting, cabinet;
* Packing: 5meters/roll.

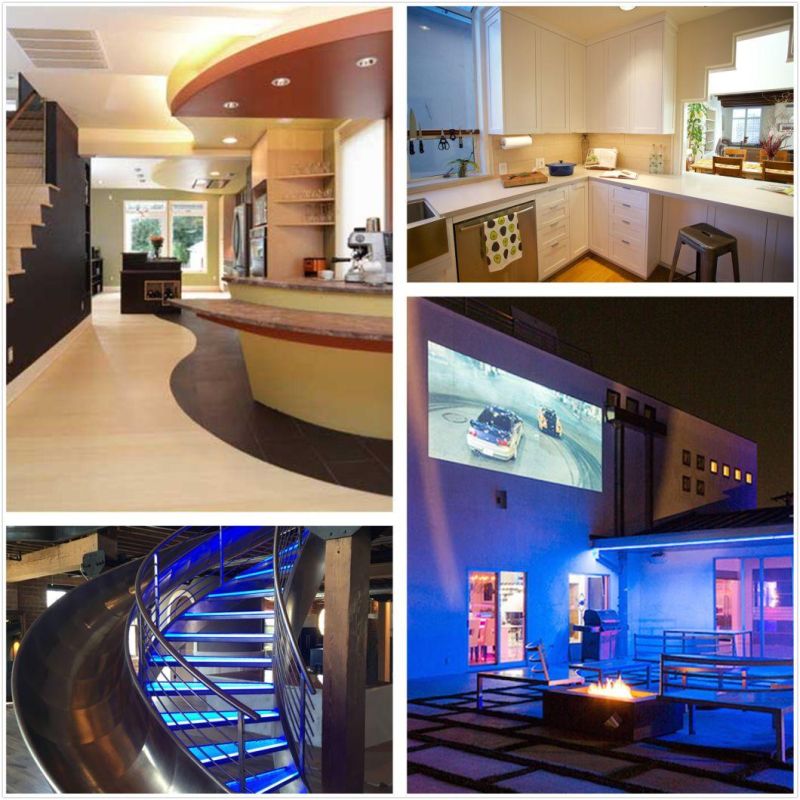

Application:

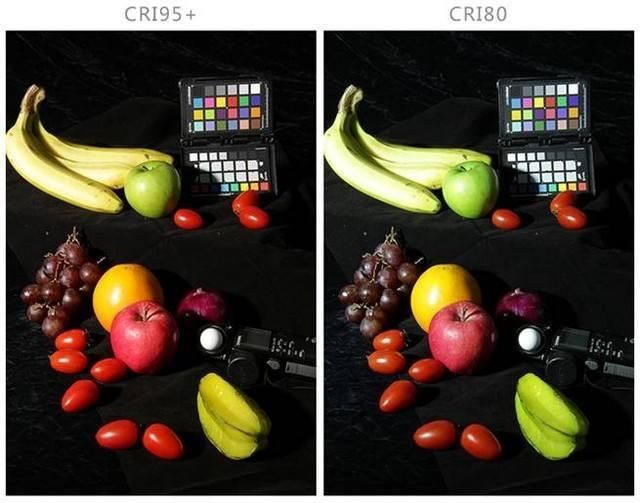

Ra comparison
Chip brand:
Company profile:
Our Certification:
Transportation:
Installation Instruction:1.Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.2.We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters/roll.3.Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.
4.Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip .
5.In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.
6.The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
7.It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).

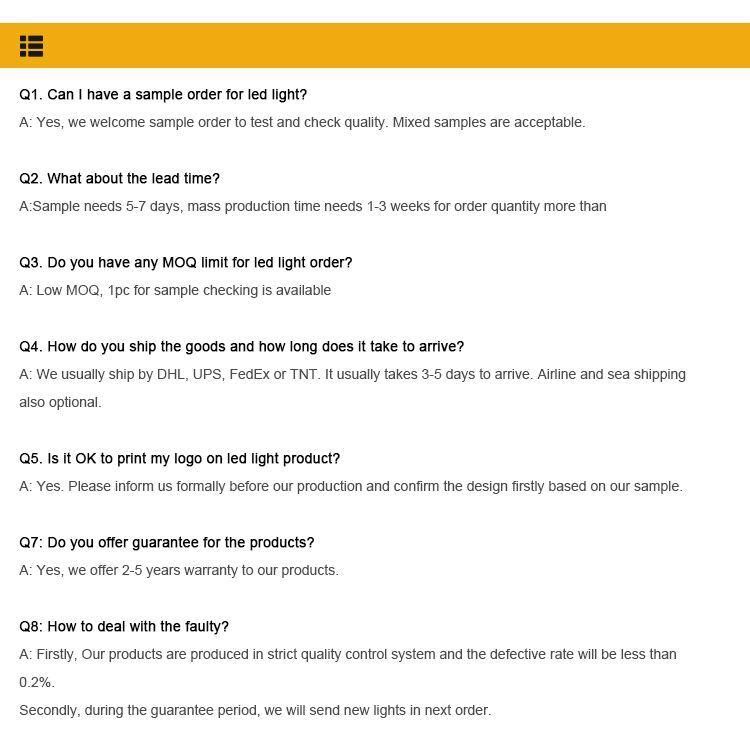

FAQ:
3528SMD Flexible Strip Light is widely used in the indoor and outdoor lighting projects, no matter commercial lighting or home lighting. It is a free design decoration lighting. Application is mostly in Signage, light box, architecture, bridge, roof, garden, indoor shop fitting, cabinet, furniture, background, hotel etc. Strip is flexible and easy to be installed, free cut, free bend, free connect. Varity color are available.
Advantage:
*Long Lifespan is more than 30,000hours.
*Wide applicability, easy to install and maintain;
*Extremely luminous, with wide viewing angle;
*PCB flex board, unique waterproof technique;
*Energy saving and environmental conservation, long lifespan;
*Operation low voltage (DC12V) for human safety, various colors available.
* White, Color temperature as 3000K, 6500K, 10000K. Red, Yellow, Blue, Green, Amber. Pink. Purple.
* Low voltage, safe LED strip. DC12V.
* Width of the PCB is 5mm/8mm/10mm.
* led quantity, 60leds/m; 120leds/m; 240leds/m
* Protect degree: Indoor IP20, Outdoor IP65.
* ERP Spectroscopy.
* Light instantly without warm-up.
* Decade is 5meters.
* Bent freely.
* Easy to install and preserve; with 3M self adhesive tape.
* All of materials are accord with RoHS standards.
* Application: Letter signage, channel letter, 3D letter, Light box, decoration lighting, shop fitting, cabinet;
* Packing: 5meters/roll.
Application:
Ra comparisonChip brand:
Company profile:
Our Certification:
Transportation:
Installation Instruction:1.Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.2.We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters/roll.3.Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.4.Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip .
5.In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.
6.The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
7.It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).
FAQ:
