• Model NO.：DV-SFL-60S2835-X-12
• LED Type：SMD2835
• LED Qty/M：60LEDs
• Color：White, Red, Yellow, Blue, Green
• Life Hours：30, 000hours
• Transport Package：Carton
• Specification：CE, RoHs
• Trademark：Devry
• Origin：Made in China
• HS Code：9405409000
• Production Capacity：500, 0000meters,Year

Basic Info.

Model NO. DV-SFL-60S2835-X-12 LED Type SMD2835 LED Qty/M 60LEDs Color White, Red, Yellow, Blue, Green Life Hours 30, 000hours Transport Package Carton Specification CE, RoHs Trademark Devry Origin Made in China HS Code 9405409000 Production Capacity 500, 0000meters/Year

Product Description

DC12V Zigzag SMD2835 LED Strip Light for illuminated channel letter & signage

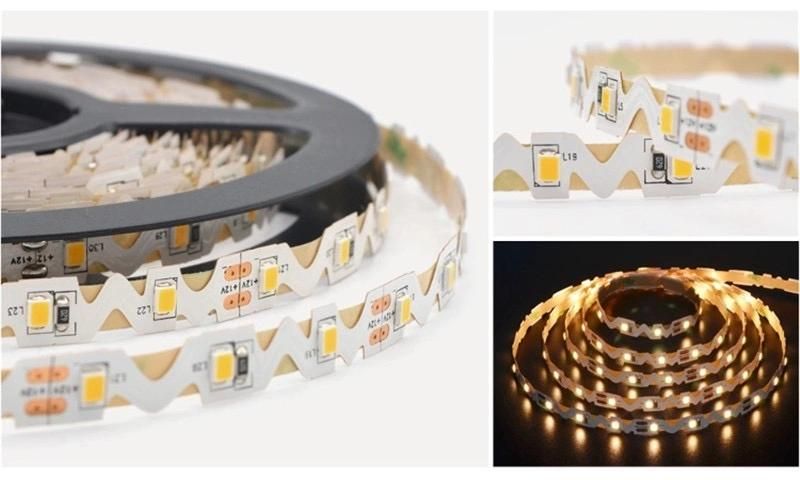

Product picture:


Description:
2835 Zig zag Flexible Strip Light is widely used in the indoor and outdoor projects, it is a free design decoration lighting. Easy bending is the most advantage of this item. Application like Signage lighting, 3Dletter, mini letter, Acrylic letter. Indoor and outdoor.

Application:

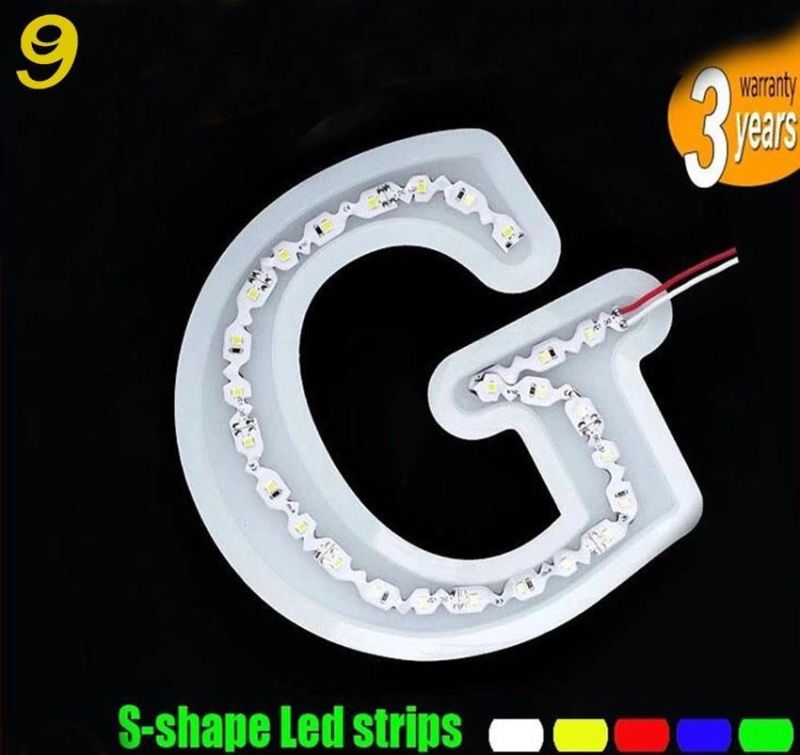

Application like Signage lighting, 3Dletter, mini letter, Acrylic letter.



Advantages:
1) Long Lifespan more than 30,000hours.
2) White, Color temperature as 3000K, 6500K, 10000K. Red, Yellow, Blue, Green, Amber. Pink. Purple.
3) Low voltage, safe LED strip. DC12V.
4) Width of the PCB is 6mm/8mm.
5) 60leds/72leds/120leds are available.
6) Cut points: 5cm per unit/60leds. 4.16cm per unit/72leds. 2.5cm per unit/120leds.
7) Protect degree: Indoor IP20, Outdoor IP65.
8) ERP Spectroscopy.
9) Light instantly without warm-up.
10) Decade is 3meters.
11) Bent freely,Easy to install and preserve; with 3M self adhesive tape.
12) All of materials are accord with RoHS standards.
Package: 5meters/roll, 10meters/roll.

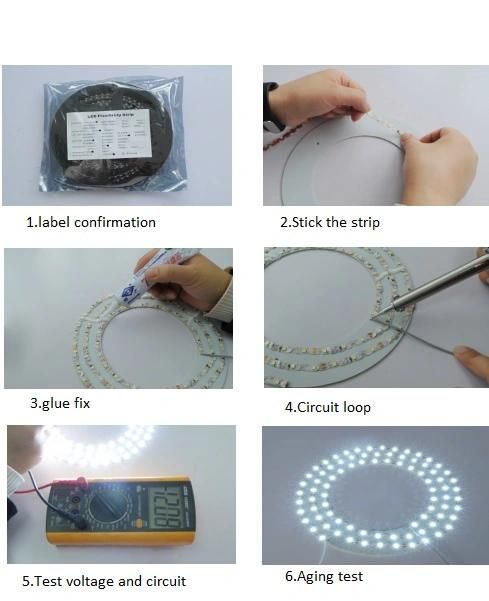

Installation Instruction:1.Make sure surface clean before installation.2.Please make sure of item no, color temperature, LED quantity, voltage and so on before open the bag.3.Take off the sticker at the back of strip, but do not take off the whole together, otherwise strips will be sticky.4.Use the silicone glue to fix strip stronger, please make there is no glue on the lamp deads.5.After glue fix, soldering the wire, every 3 meters make a circuit loop when soldering, please separate  positive and negative, soldering gun can stay on the PCB less than 3 seconds.6.After finishing installation, please make sure voltage drop is less than 5% and test no short circuit.

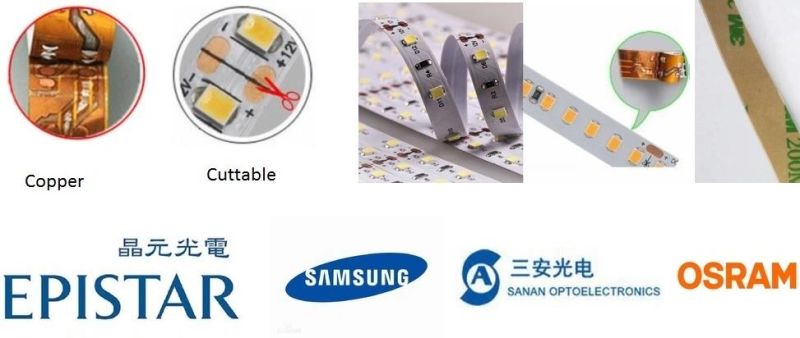

Detail show:

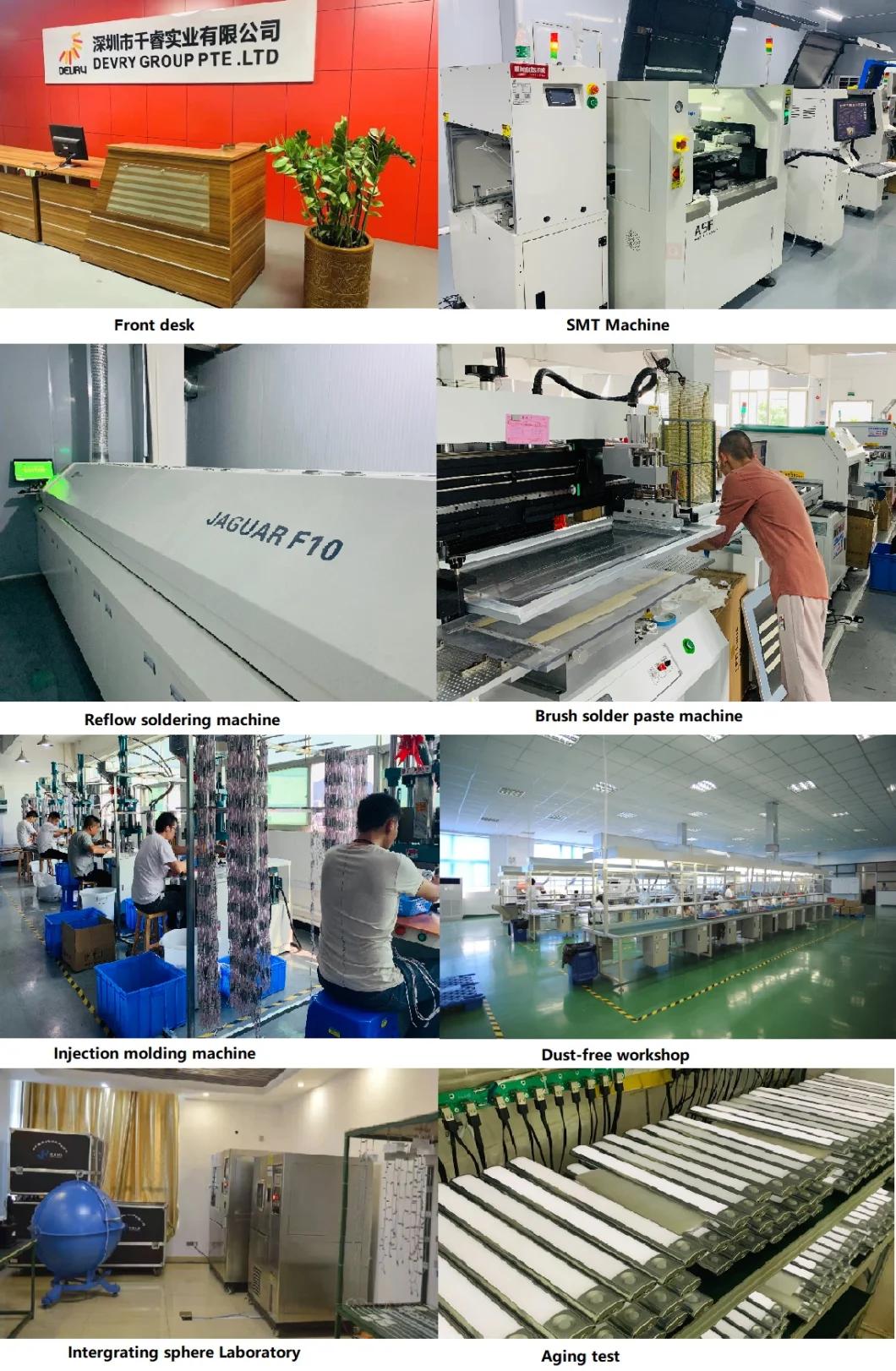

QA&QC:

Transportation:

Exhibition:
