• Model NO.：TLV-FS5050Q60RGB
• Type：Flexible LED Strip Light Non-Waterproof Waterproof
• LED Suppliers：Xuyu,Honglitronic,Osram,Samsung
• LED Chip Brand：Epistar Chip
• LED Material：Packaged by 99.99% Pure Gold Wire, Red Copper Pad
• LED Bins：2-Step,3-Step,6-Step, Same Bin for Each Order
• PCB Material：Double-Sided Pure Copper Circuit Board
• PCB Width：10mm
• PCB Thickness：2oz ( 3oz Optional )
• LED Testing：IEC,En62471
• Adhesive Tape：Original 3000lse 3m Tape
• Packing：5m,Roll, Color Box , Anti-Static Bag
• Warranty：3 Years
• Certificates：TUV CE, FCC, RoHS, IEC,En62471, Lm-80
• Transport Package：Inner Box and Carton, 100reels,CTN
• Specification：5000*10*1.8mm
• Trademark：Topledvision
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：100000m,Month

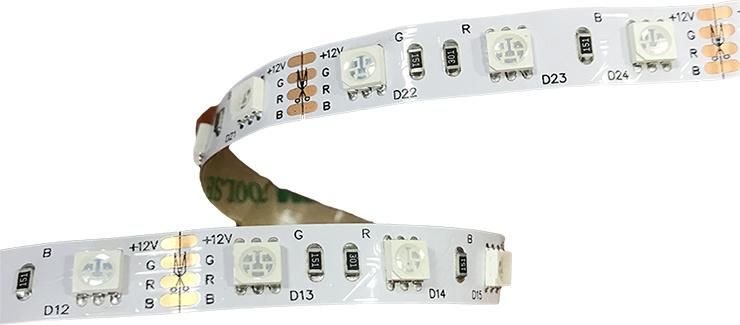

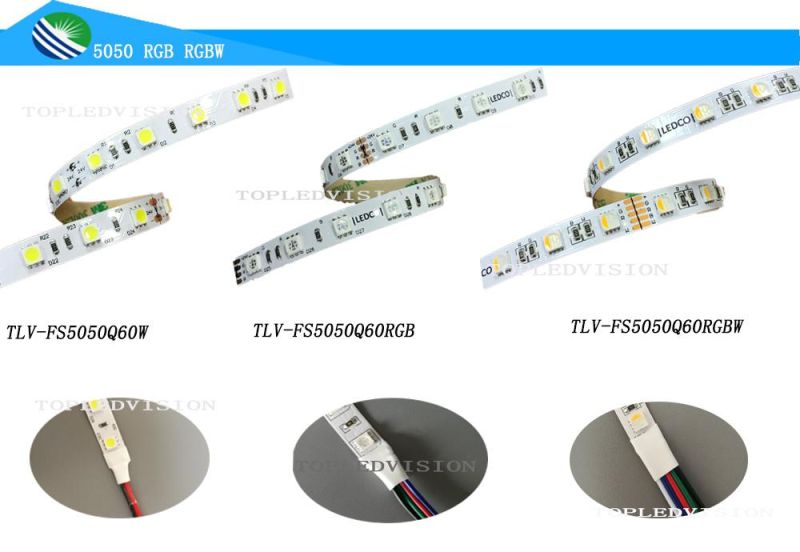

TLV-FS5050Q60RGBItemHigh quality 5050 RGB LED stripLED quantity60LEDs/mPower(watt)14.4W/m maxWorking voltage12V/24V DCColor temperaturePure Red, Pure Green, Pure Blue color change and color fade, mixed color changePCB10mm double sided FPCDimension5000*10*1.8mmIP rateIP20(IP33)/IP65/Nano coating/IP67/IP68Cutting unitevery 3LEDs(50mm) / 6LEDs(100mm)Backwith Original 3M adhesive tape ( strong double sided more viscous )Working lifespan>30,000hrsWarranty2 yearsCertificatesTUV CE, FCC, IEC/EN62471Good color temperature consistency and stable quality:
We do large stock materials for normal Products to keep the same color temperature and PCB and stable quality for each batch for you.

Features as follow:
1. LED source: 18-22lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size:10mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED rope light more than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS and IEC/EN62471 photobiological safety compliant.Service1. Provide free technology support by phone and e-mail2. We provide training to replace the broken part3. Two years guarantee: In guarantee period, we provide the free new part for replacing.Payment50/% deposit by T/T. Balance T/T before shipment.DeliveryApprox 7-10 working days normally ( from receiving the deposit )TransportationBy Air / SeaEffective date30days
We welcome OEM and ODM service, we have professional engineer to design and produce according your requirement.
