Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528

TOPLEDVISION PHOTONICS CO LIMITED
  • Certification：FCC, RoHS, CE, TUV,IEC,En62471
  • Power：15W,M
  • Emitting Color：RGB
  • Voltage：24V DC
  • IP Rating：IP20
  • Type：Flexible LED Strip

Base Info

  • Model NO.：TLV-FSWQ120-3528 RGB-15W
  • LED Source：High Quality SMD3528 RGB
  • LED：SMD3528 RGB LED
  • Model：Tlv-Fs3528q120RGB
  • PCB：Electrolytic Copper Double-Sided Circuit Board
  • LED Quantity：120LEDs,M
  • Watt：15W,M
  • Bright：Red:800-900mcd Green:1400-1600mcd, Blue:300-450mcd
  • Color：Red,Green,Blue,Color Change,Color Fade,Mixed Chang
  • Size：5000*8mm
  • Working Life：30000h
  • Certifications：TUV,Ce,FCC,IEC,En62471
  • Warranty：2years
  • Packing：5mts,Reel, Gift Box Packing or Anti-Static Bag
  • Protect Grade：IP20, IP65(Glue Protection , Nano Coating), IP68
  • Transport Package：5mts,Reel 100reel,Carton
  • Specification：5000x8x 1.8mm
  • Trademark：topledvision
  • Origin：Shenzhen China
  • HS Code：9405409000
  • Production Capacity：100000PCS,Month

Description

Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528
 Certifications: TUV CE, FCC, IEC/EN62471Advantages:
High quality SMD LED
Our SMD LED Use the quality 3chips smd3528 RGB led as light source with 1500-1900mcd brightness and low lumen decline. RGB led ribbon strip is better dissipation, long lifespan and low light decline. SMD LED is compliant with TUV certificate, less than 5% lumen down after 5000H working.
High quality double-side PCB
We use Electrolytic copper as PCB materrial, the electrolytic copper is equipped with a dual circuit board , which is better heat dissipation and more stable use.
Good color consistency and reliable quality
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.
Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528

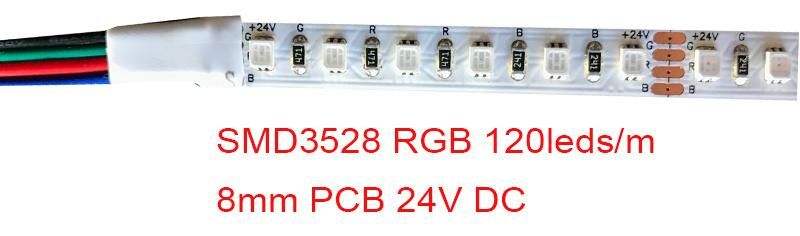

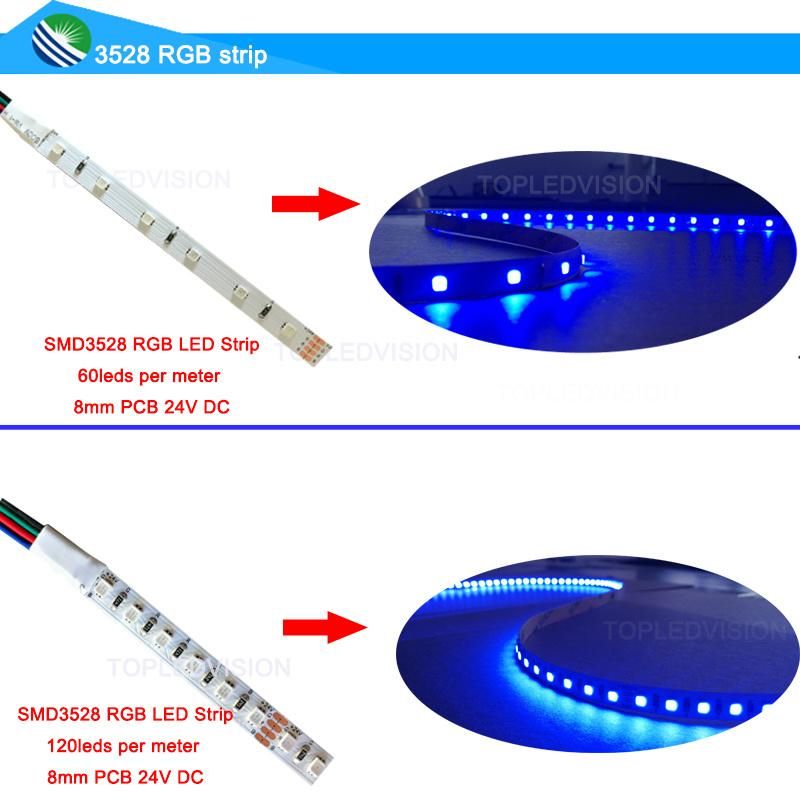

ModelLed quantityOutputPowerPCB Width
TLV-FS3528Q60RGB60leds/m12V/24V DC14W8mm
TLV-FS3528Q60RGB120leds/m12V/24V DC15W8mm/10mm

Features as follow:
High Brightness, Multi-color, Energy saving
a, Use the quality 3chips smd3528 RGB led as light source with 1500-1900mcd brightness and low lumen decline.
b, Pure Red, Pure Green, Pure Blue color change and color fade, mixed color change.
c, Low power consumption, more than 1/3 energy saving than the traditional neon light.


Good reliability, flexible, strip length can be cut
a, Every 6leds 3528 RGB led as min unit of RGB strip, each unit work separately with high reliability.
b, White color flexible printed circuit board made by rolled copper material which is flexible and not easy to break.
c, Led strip can be cut or connected by 6ledsmin unit.

Support Data controller
3528 RGB strip can be controlled by IR or wireless controller, can be change the color, brightness, pattern.

Cost-effective and easy installation
a, Led strip is large mechanized production,  it is economical and affordable.
b, Easy installing way

Other accessories(RGB controller), Adapter and Power supply are awailable.
Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528
Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528

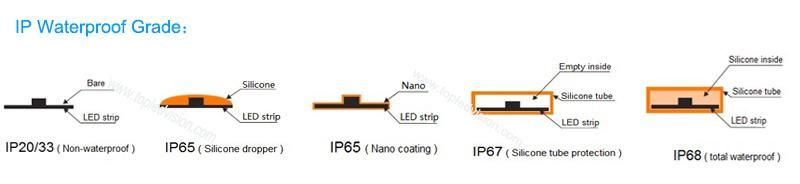

IP20 ( Bare Board ) be used indoor and keep away from rain wet
IP65 ( Silicone dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater.
 Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528

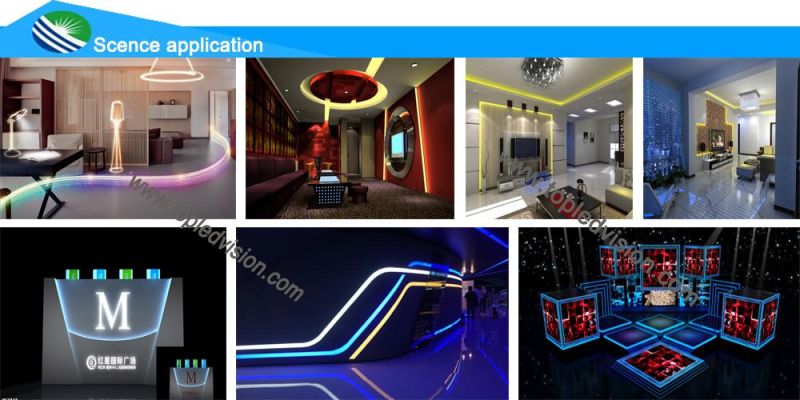

 Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528
Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528
Packaging and shipping :
1. Packaging: 5m/roll, box packing (132x132x15mm), 100 reels per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
 Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528
Decorative Commercial Lighting 120LEDs 15W/M RGB Color LED Strip 3528
Q1: Do you have free sample?
A1: Yes, we can offer you free samples, but you pay the shipping cost.
Q2: What is your minimum order quantity?
A2: Usually MOQ is 50m, but we also accept small order for trail.
Q3: What's your delivery time?
A3: Samples can be finished within 3-5 days, and bulk order is about 10-15 days according to quantity.
Q4: What's your delivery ways as usual?
A4: Normally, we send the products by Express, Air or Sea transportation.
Q5: What's the payment term?
A5: We accept  T/T, PayPal or Western Union.
Q6: Do you offer OEM customized services?
A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you.
