• Model NO.：NE3020CV24-R
• Specification：W12*20mm
• Trademark：Easing home
• Origin：China
• HS Code：9405409000
• Production Capacity：1000PCS , Day

Basic Info.

Model NO. NE3020CV24-R Specification W12*20mm Trademark Easing home Origin China HS Code 9405409000 Production Capacity 1000PCS / Day

Product Description

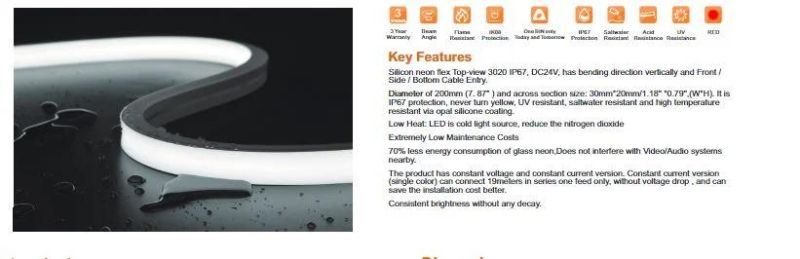

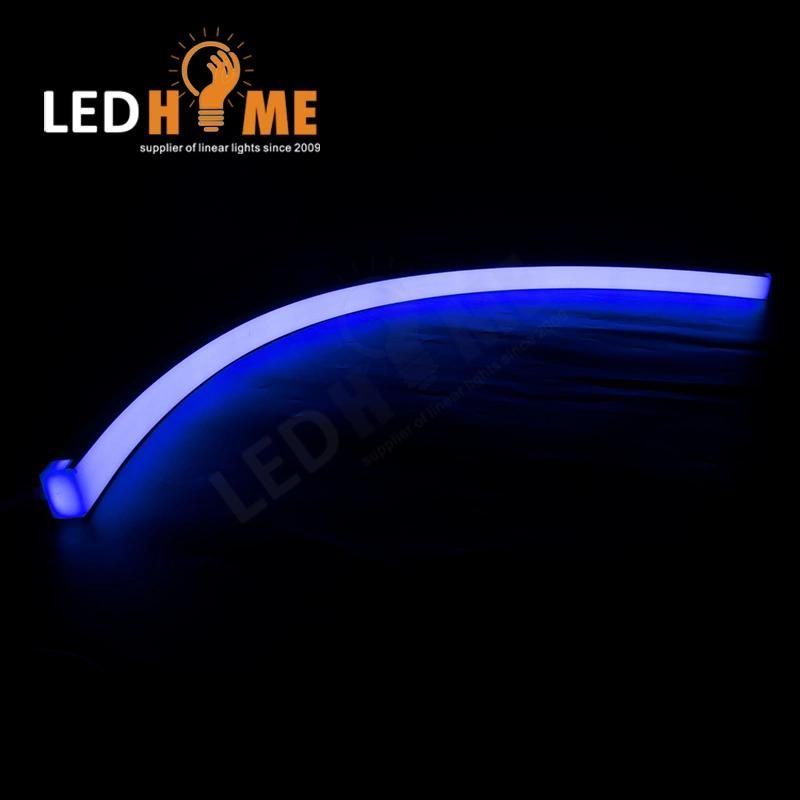

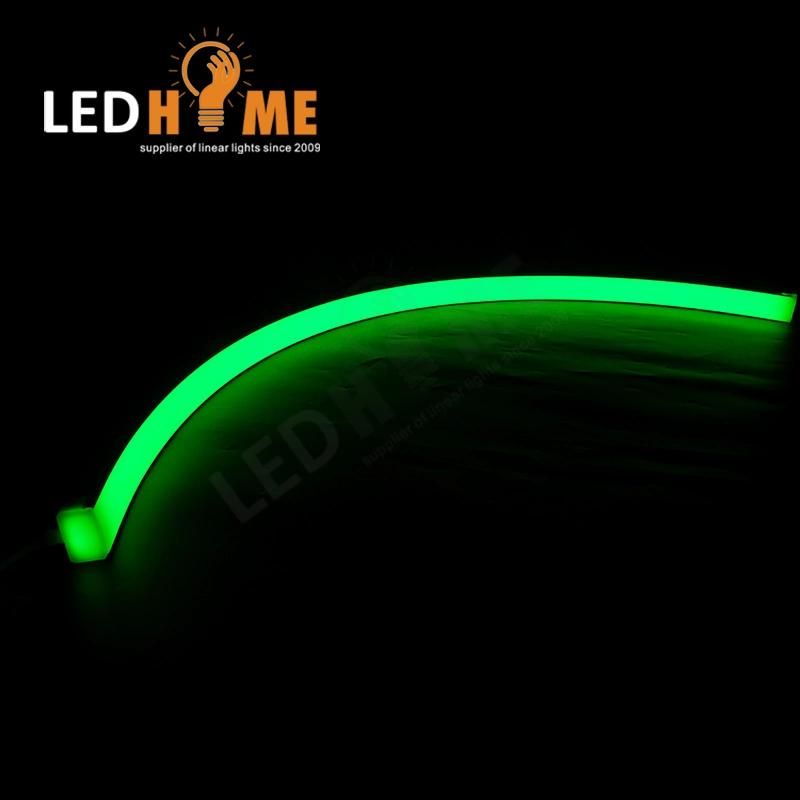

2021 Hot Sell Silicon neon flex Top-view NE3020 IP67, DC24V Red, Blue, Green , Pink, Yellow,







  kE , has bending direction vertically and Front /

 Side / Bottom Cable Entry
.70% less energy consumption of glass neon,Does not interfere with Video/Audio systemsnearby.The product has constant voltage and constant current version. Constant current version(single color) can connect 19meters in series one feed only, without voltage drop , and cansave the installation cost better.Diameterof 200mm (7.87" ) and across section size: 30mm*20mm/1.18'' *0.79'',(W*H). It is

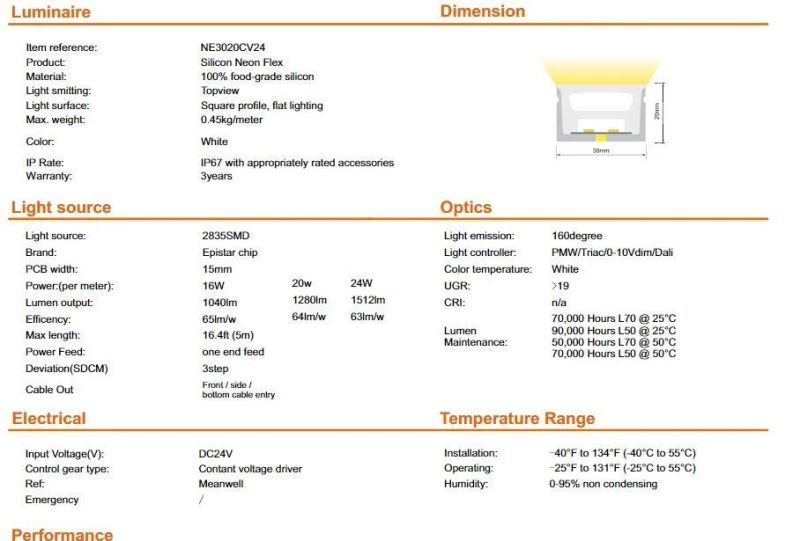

Details:

Material:	Silicon

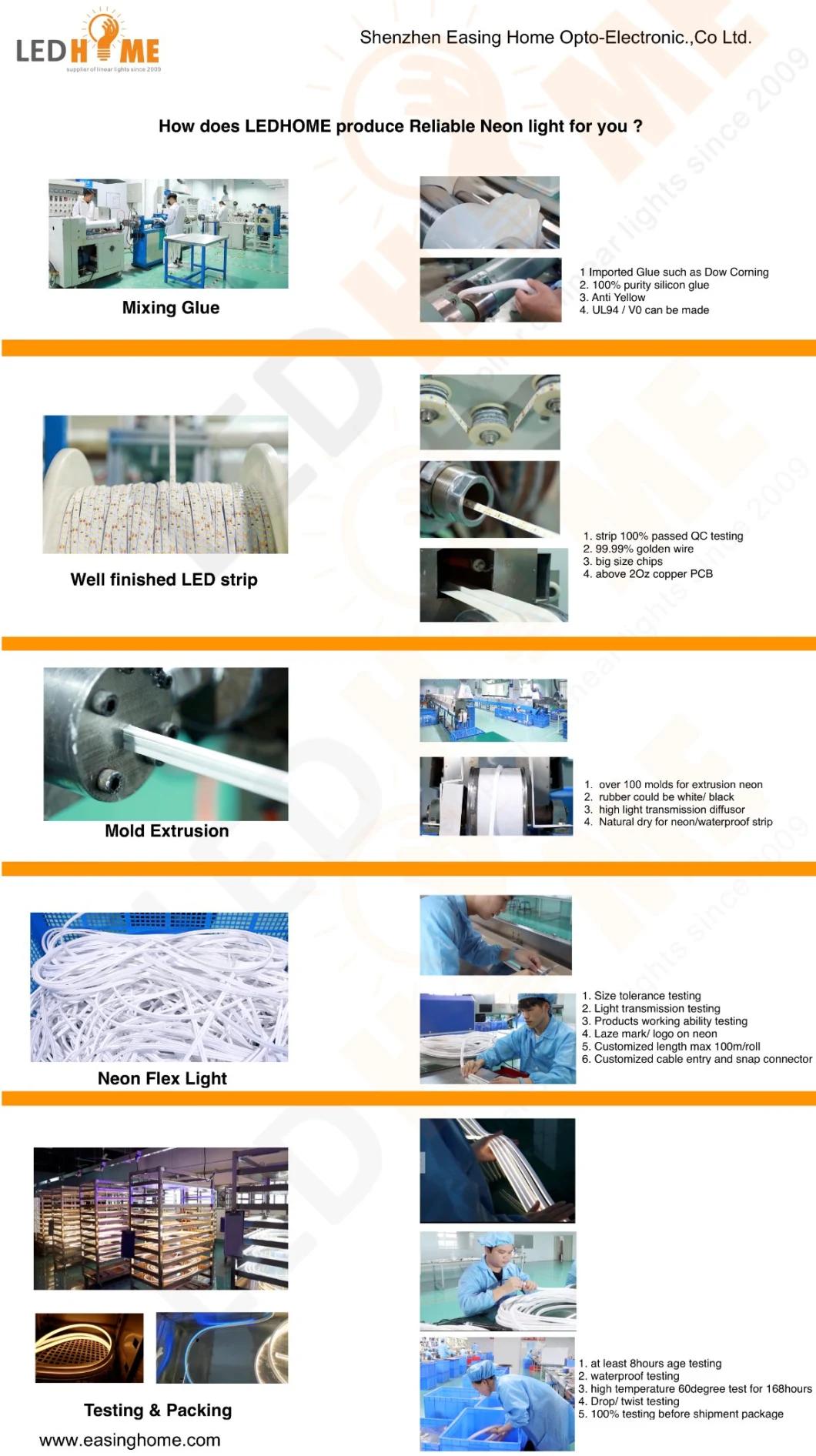

Process:	ONE time double extrusion molding by machine
Power:	16W- 20W /24W per meter
Color:	2700K-6500K, Red, blue, green, yellow, pink, purple, RGB, Tunable white, RGBW, smart RGB, smart RGBW. RGBWW (five color)
Cut Mark:	12V/ 24V    depend on the led quantity
Length	Max 18meter per pcs
PCB	siutable for 10mm PCB strip
CRI	Ra 80 / Ra 90
Accessories:	End caps, SS304 mounting clips
Lead time:	6-8days

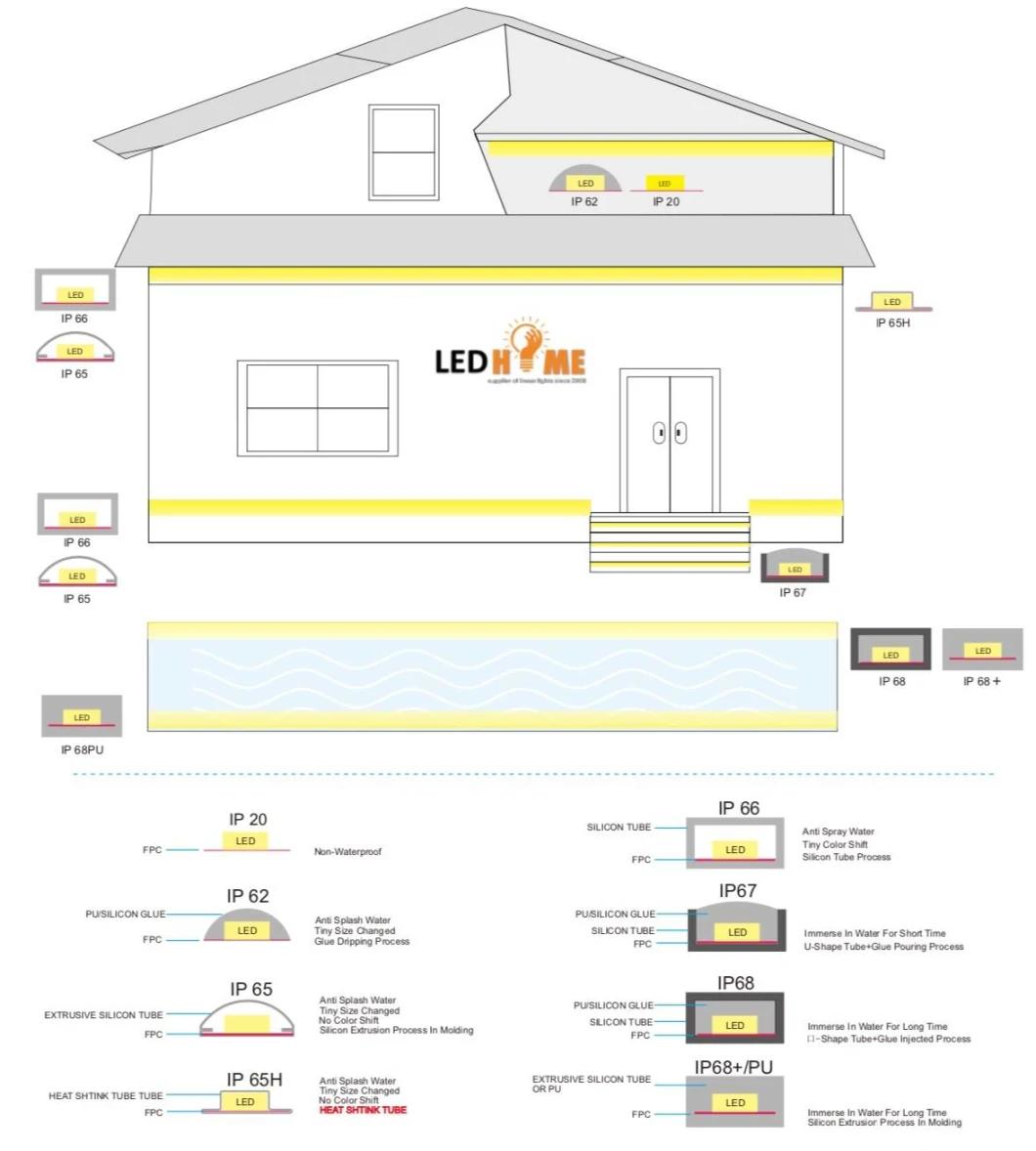

IP Rate	IP67 outdoor
Warranty	3years

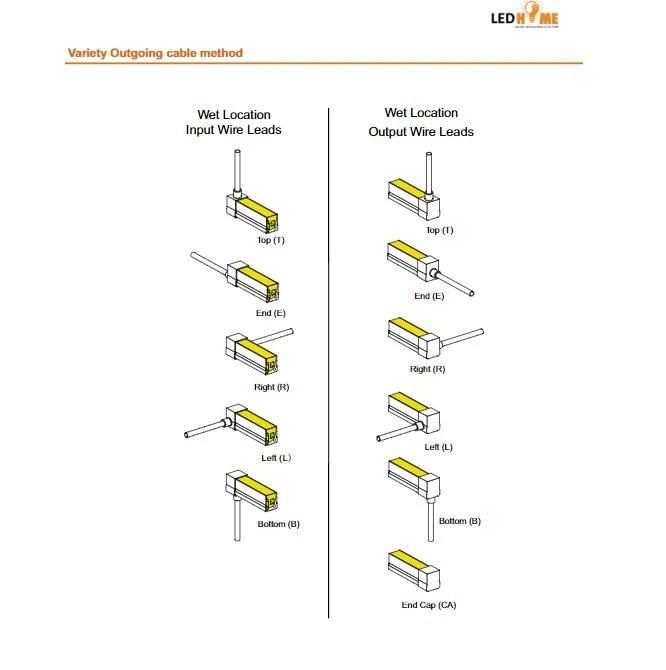

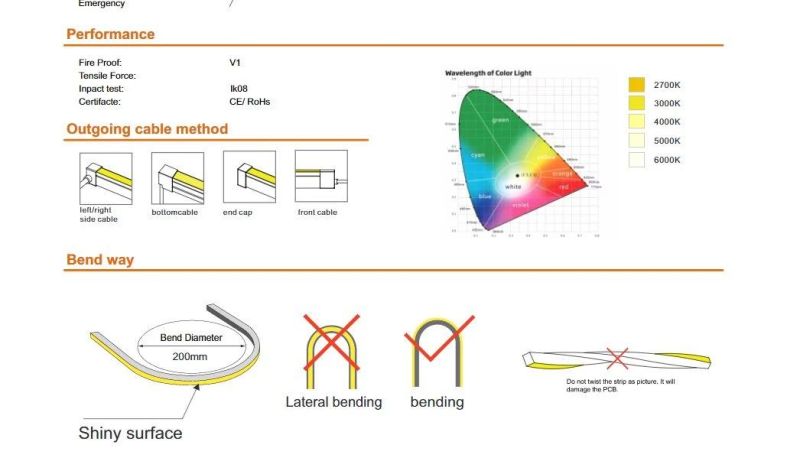

IP67 protection, never turn yellow, UV resistant, saltwater resistant and high temperatureresistant via opal silicone coating.a Consistent brightness without any decay.Dimensionaagt Light emission:a- 160degreeLight controller:PMW/Triac/0-10Vdim/DaliColor temperature:RedUGR:>19CRI:n/aLumenMaintenance:90,000 Hours L50 @ 25°C70,000 Hours L70 @ 25°C50,000 Hours L70 @ 50°C70,000 Hours L50 @ 50°CTemperature RangeInstallation:-40°F to 134°F (-40°C to 55°C)Operating:-25°F to 131°F (-25°C to 55°C)Hu0-95% non condensingOutgoing cable methodShiny surfaceBend DiameterbendingLateral bending200mm160°BeamAngleleft/rightside cablebottomcableend capfront cableRED   Low Heat: LED is cold light source, reduce the nitrogen dioxideSilicon neon flexTop-view 3020 IP67, DC24V, has bending direction vertically and Front /Side / Bottom Cable Entry.70% less energy consumption of glass neon,Does not interfere with Video/Audio systemsnearby.The product has constant voltage and constant current version. Constant current version(single color) can connect 19meters in series one feed only, without voltage drop , and cansave the installation cost better.Diameterof 200mm (7.87" ) and across section size: 30mm*20mm/1.18'' *0.79'',(W*H). It isIP67 protection, never turn yellow, UV resistant, saltwater resistant and high temperatureresistant via opal silicone coating.Consistent brightness without any decay.DimensionLight emission:160degreeLight controller:PMW/Triac/0-10Vdim/DaliColor tempe  >19CRI:n/aLumenMain90,000 Hours L50 @ 25°70,000 Hours L70 @ 25°C50L70 @ 000 Hours L50 @ Humidity:0-95% non coOut
About us:About us:

We are the manufacture have been in the lighting industry for ten years.We specialize in LED aluminum profile, LED neon light and LED strip light.
In the nearly 10 years since our founding, We been dedicated to manufacture high quality and cost efficient LED products that use the latest technology. We do honors on every improvement to our products and service in the marketing. To lead the field, we never stop to produce new products to meet the high expectations of our customers.
Which has an experienced team with rich backgrounds in technical and mechanical services in lighting industry, and we are always here ready to help you create whatever lighting solutions your imagination can come up with while using our products.






Our Team:


   Our certificate:

We are the manufacture have been in the lighting industry for ten years.We specialize in LED aluminum profile, LED neon light and LED strip light.
In the nearly 10 years since our founding, We been dedicated to manufacture high quality and cost efficient LED products that use the latest technology. We do honors on every improvement to our products and service in the marketing. To lead the field, we never stop to produce new products to meet the high expectations of our customers.
Which has an experienced team with rich backgrounds in technical and mechanical services in lighting industry, and we are always here ready to help you create whatever lighting solutions your imagination can come up with while using our products.






FAQ

Q1:Are you manufacturer?
A: Yes, We are manufacture since from 2008, is a well-known company with good reputation in China.

Q2:If I need sample, could you support?
A: We can supply you with the sample for free, but the delivery charges will be covered by our customers. For avoiding the misunderstanding, it is appreciated if you can provide the International Express Account for Freight Collect.

Q3:What's your MOQ?
A: 1 metric ton for each model.


Q4:How do you charge the mold fee?
A: In case we need to open new mold for your ordered profiles, the mold fee will be refunded to customers when your order quantity reaches a certain amount.


Q5:What is the difference between theoretical weight and actual weight?
A: Actual weight is the actual weight including packaging. Theoretical weight is identified according to the drawing, calculated by of the weight of each meter multiplied by the length of profile.

Q6: How do you quote price, per ton or per meter?
A: We provide more than two pricing modes


Q7:How can you ensure high quality?
A: 1) We have our own material production workshop and die factory for 10 years.
    2) 300 workers, and workers should be well trained before go to work.
    3) 100% QC on line and final inspection, no any defective products can be out from our factory.
    4) We have a lot of certificates to ensure our quality, such as ISO9001:2015, ISO14001:2015,SGS certificate,  etc.


Q8:What's your payment term?
A: 30% T/T deposit + 70% T/T before loading the container .
