24V 2110 LED Light Strip

Mynice Optoelectronics Co., Ltd.
  • Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
  • Power：19W
  • Emitting Color：Changeable
  • Voltage：24V
  • IP Rating：IP68
  • LED Color：2700-7000K

Base Info

  • Model NO.：R0Y0LW10B
  • Lm/M：2090
  • FPC Width(mm)：10
  • Transport Package：DHL
  • Specification：37*34*34cm
  • Origin：Shenzhen
  • HS Code：9405409000
  • Production Capacity：5000000

Description

Life Span50000HDriving Methodconstant voltageAvailable ColorWW/W/CWAngel>120°Working Temperature-40ºC-50ºCStore Temperature-50ºC-60ºCIP degreeIP20-68

Wires & Series Connection LengthWiresInput end connect two-core RVV red and blackwire,Red:VI+;Black:VI-Stand Length In Serial Connection5mMaximum Length In Serial Connection≤5m

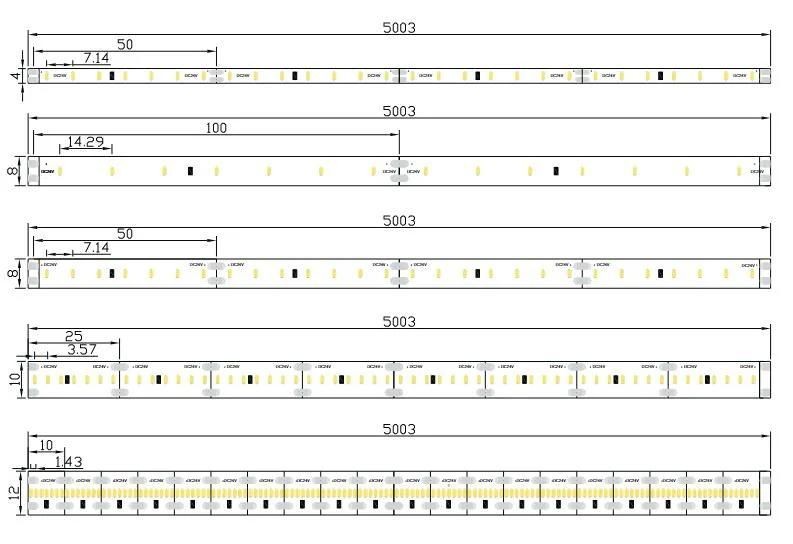

Dimension(Unit:mm):
24V 2110 LED Light Strip

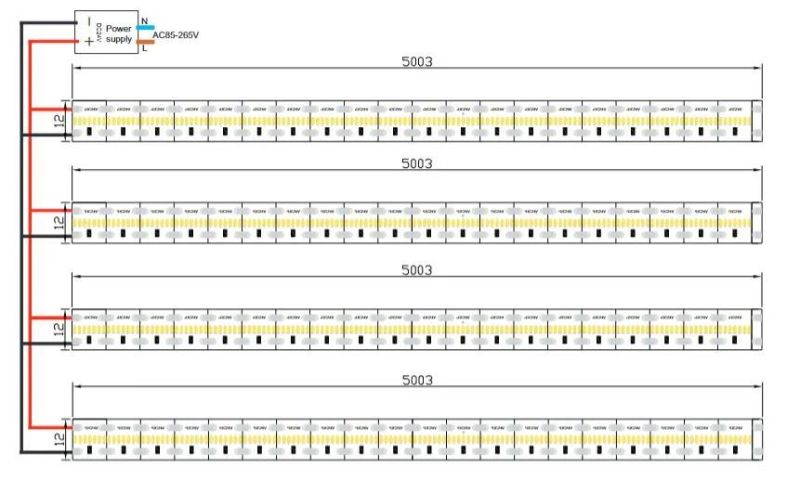

Connection Diagram(Unit:mm):
24V 2110 LED Light StripWavelength Scope(nm/K)Red lightGreen lightBlue lightYellow lightWarm whiteWhite lightCool white619-635512-528463-475584-5952700-33005500-7000>8000
Connection type:
Standard:2PIN-8mm,2PIN10MM,4PIN10MM
