24V IP68 UV Proof High Quality SMD 2835 CCT 2700K-6500K 10mm Side Bend Neon LED Light
Mynice Optoelectronics Co., Ltd.- Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
- Power：12W
- Emitting Color：Changeable
- Voltage：12V
- IP Rating：IP68
- Beam Angle：120
Base Info
- Model NO.：RCC0GX10X
- Max. Connection Length：5m
- Operation Temperature：-25°c~50°c
- Storage Temperature：-40°c~70°c
- Maximum Surface Temperature：70°c
- Transport Package：DHL
- Specification：37*34*34cm
- Origin：Shenzhen
- HS Code：9405409000
- Production Capacity：5000000
Description

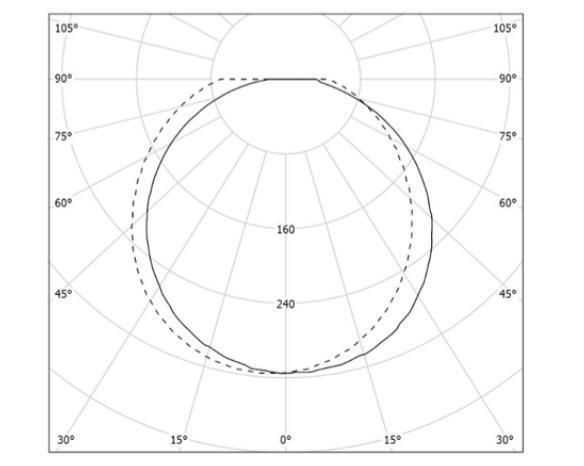

Photometric data:

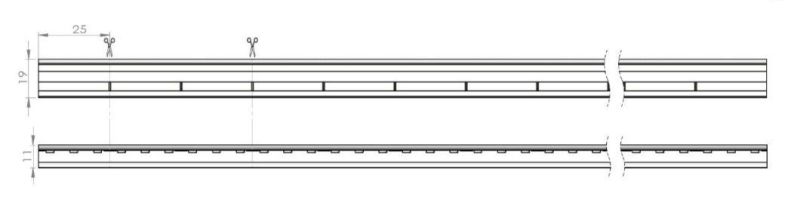

Size (units:mm)
RCC0GX10A
RCC0GX10B

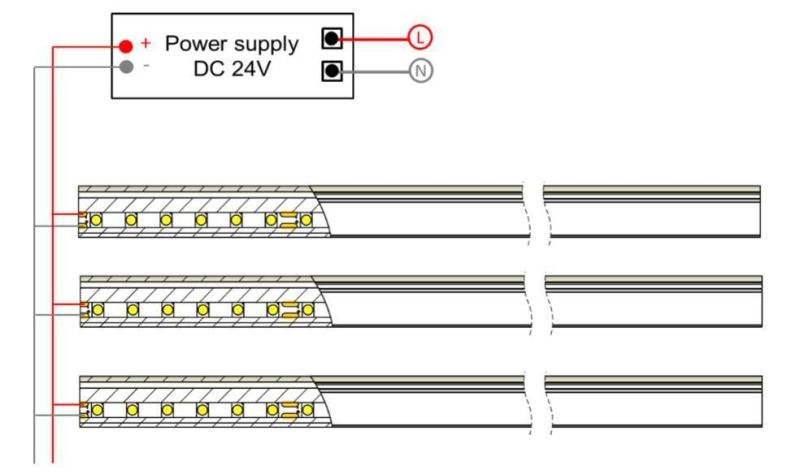

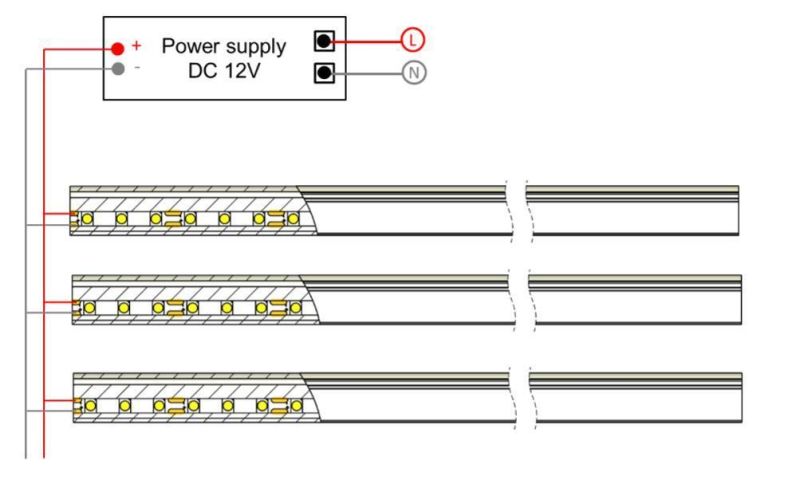

Wires connection:
RCC0GX10A:
RCC0GX10B:

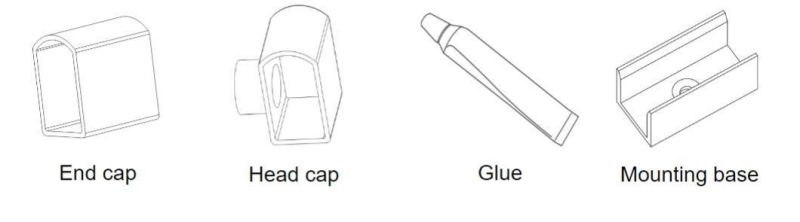

Product accessories:
Environmental and application condition:
Package:

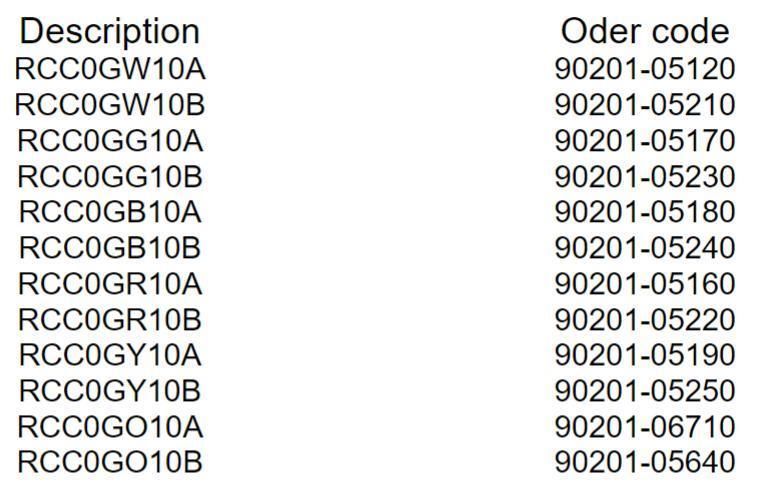

Oder code:
Notes:-The diameter of extension wires should be considered based on possible maximum current,load power and wire loss.
-The LED neon strips itself and all its components may not be mechanical stressed
-To avoid mechanical damage to the connecting cables,the LED neon strips should be attached securely to the fixture
-Installation of LED neon strips with (power supplies) needs to be made with regard to all applicable elec- trical and safety standards.Only qualified personnel should be allowed to perform installations
-Please ensure that the power supply/controller is of adequate power to operate the total load
-Please ensure that the power supply/controller with correct output parameters (driving mode, voltage,
current) for LED neon strips
-Pay attention to standard ESD precautions when installing the strips
-The LED neon strips should be driven by constant voltage SELV control gear with 24/12 VDC output.
Recommended to choose high qualified power supply/controller, which have short circuit protection, over voltage and over loading protection function etc.
-Must have extra power supply if the working length exceeds the maximum run length
-The joints of extended strips should be deal with waterproof when using waterproof products
