• Model NO.：R9C0GX10X
• Size：15.5mm*13mm

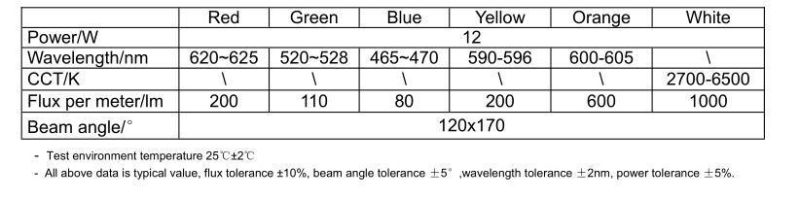

• Lumens：Red 200lm,M, Green 110lm,M, Blue 80lm,M White 1000

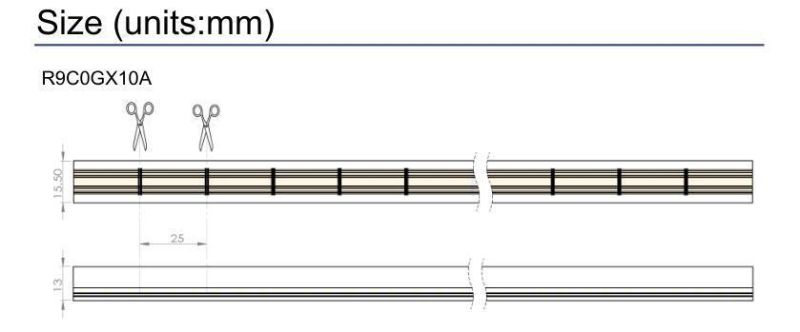

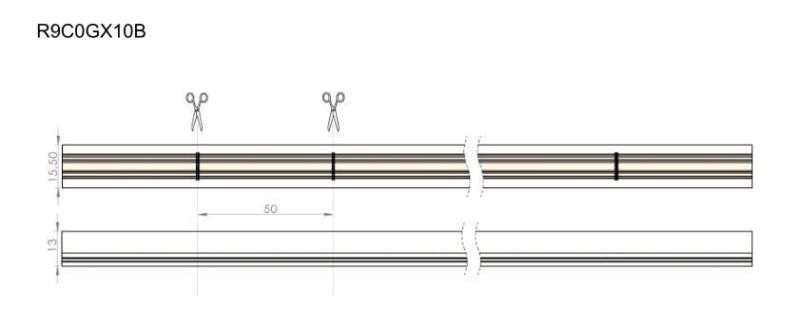

• Min. Cut：25mm for DC12V, 50mm for DC24V

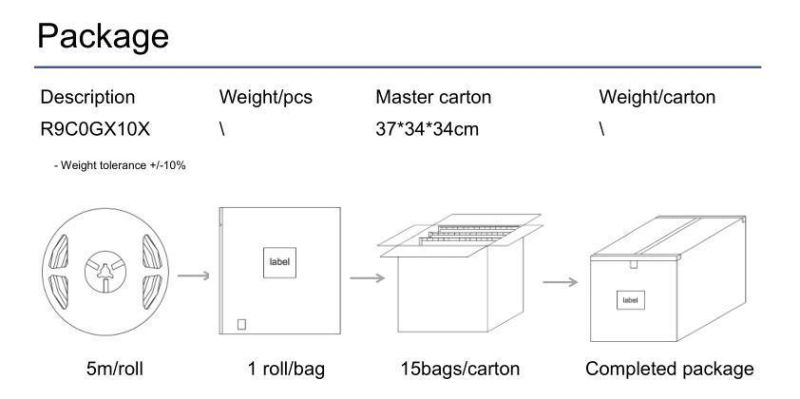

• Transport Package：Carton Packing
• Specification：5M per roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. R9C0GX10X Size 15.5mm*13mm Lumens Red 200lm/M, Green 110lm/M, Blue 80lm/M White 1000 Min. Cut 25mm for DC12V, 50mm for DC24V Transport Package Carton Packing Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Top view 120 LEDs/meter flexible neon led strips factory
Application
Landscape lighting, facade lighting, steps, bridges, roads, shape, etc.

Main features
High quality 2835 SMD LED
Top view, high efficacy
Excellent weather and corrosion resistance
CCT: 2700K-6500K, other color available
Warranty 3 years

Main Parameters








Instructions
-The diameter of extension wires should be considered based on possible maximum current, load power
and wire loss.
- The LED neon strips itself and all its components may not be mechanical stressed.
- To avoid mechanical damage to the connecting cables, the LED neon strips should be attached securely
to the fixture.
- Installation of LED neon strips with (power supplies) needs to be made with regard to all applicable elec-
trical and safety standards. Only qualified personnel should be allowed to perform installations.
- Please ensure that the power supply/controller is of adequate power to operate the total load.
- Please ensure that the power supply/controller with correct output parameters (driving mode, voltage,
current) for LED neon strips.
- Pay attention to standard ESD precautions when installing the strips.

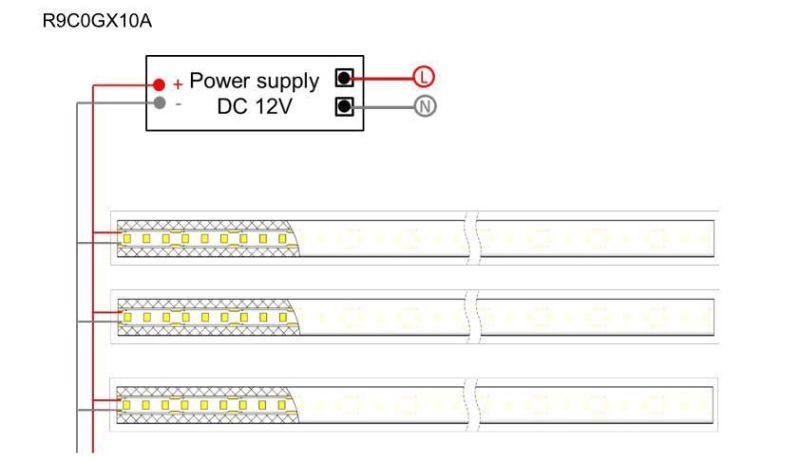

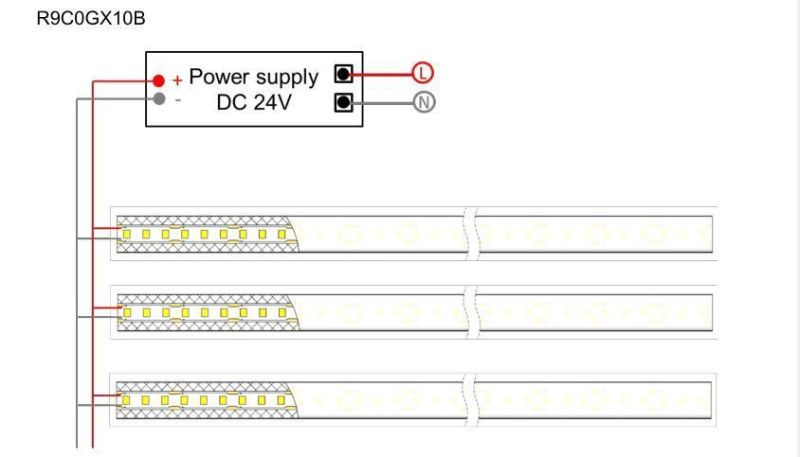

- The LED neon strips should be driven by constant voltage SELV control gear with 24/12 VDC output.
Recommended to choose high qualified power supply/controller, which have short circuit protection, over
voltage and over loading protection function etc.
- Must have extra power supply if the working length exceeds the maximum run length.
- The joints of extended strips should be deal with waterproof when using waterproof products.
