• Cascade Quantity：100 Meters Per Roll
• Beam Angle：120 Degree
• Lifetime：50, 000 Hrs
• Ceritification：CE,UL,Rosh,Lm-79,Lm-85
• Warranty：3 Yrs
• Transport Package：1 Carton
• Specification：5000*1000*800mm
• Origin：Shenzhen, China
• HS Code：9405409000
• Production Capacity：120000 Meters Per Month

Basic Info.

Cascade Quantity 100 Meters Per Roll Beam Angle 120 Degree Lifetime 50, 000 Hrs Ceritification CE/UL/Rosh/Lm-79/Lm-85 Warranty 3 Yrs Transport Package 1 Carton Specification 5000*1000*800mm Origin Shenzhen, China HS Code 9405409000 Production Capacity 120000 Meters Per Month

Product Description

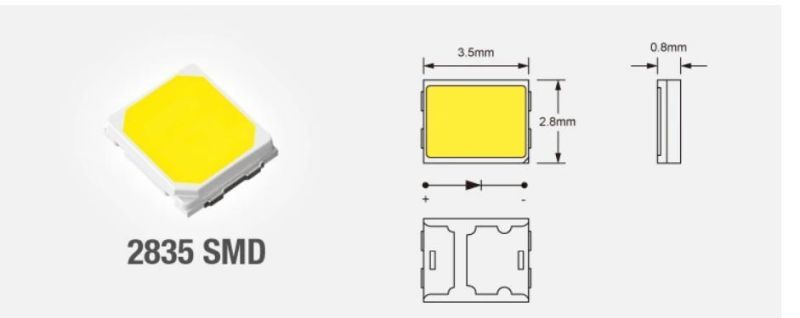

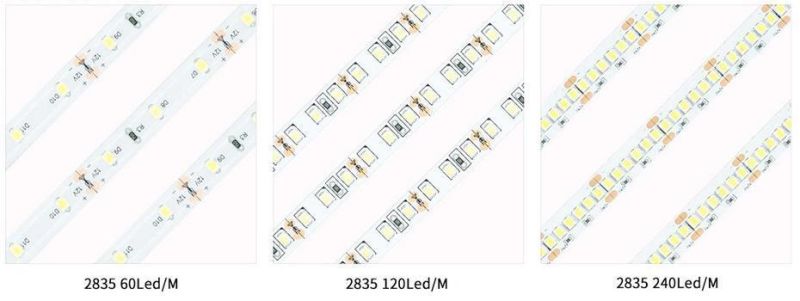

SMD2835 Waterproof flexible strip Green color lighting led strips


Techincal Data:
Item No.  Nominal  Voltage      Color Temperature          CRI          Flux                    Power
R060GG10A          12V/24V              GREEN                         >80         110LM                 7.2W
R120GG10A          12V/24V             GREEN                          >80         110LM                  9.6W
R120GG10A          12V /24V            GREEN                           >80         110LM                 14.4W

1. Tolerance range for optical and electrical data: -15/+15%.
2. All value @ ta=25ºC
3. Tolerance range for the supply voltage: 12V:±5%.

Application Data:
Max connection number   100 METERS
Ends of led strip (Wire)      150mm
Ambient temperature         -25ºC to +50ºC
Max working temperature      65ºC
Storage temperature          -40ºC to +85ºC
Risk group(EN62471:2008)      1
Certification list       CE/UL/ENEC/RoHS/LM-85


Shipping:
1. FedEx/DHL/UPS/TNT for samples/small orders, Door-to-Door;
2. By Air or by Sea for mass goods, for FCL; Airport/ Seaport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!


Noted:
_ The power cable should meet the actual maximum current and power.
_ All the end point of wire should be treated with waterproof;
_ Pay attention to the maximum number of connections, prohibit overloading.
_ All the power supply must has the corresponding certification.
_ Our company reserves the right of final interpretation.
_ Subject to change without notice.
