• Model NO.：RA0E0GW10B-QGP
• FPC Width：10mm
• Lumens：1450 Lm Lm,Meter
• Min. Cut：50mm
• Transport Package：Carton Packaging
• Specification：5M per roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. RA0E0GW10B-QGP FPC Width 10mm Lumens 1450 Lm Lm/Meter Min. Cut 50mm Transport Package Carton Packaging Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Full spectrum Ra>97 CRI>95 140pcs 2835 LED/meter flexible LED strip light
Application
It is suitable for high-end occasions such as education lighting, health lighting, medical lighting, museum lighting, camera lighting, showcase lighting, home lighting, plant lighting, equipment lighting, etc.

Main features
- Using high brightness and high color rendering LEDs, the color gamut saturation is good, and the color fidelity is high.
- The purple chip excites the yellow phosphor, and the blue light has low harm.
- The continuity of the spectrum is strong, close to the sun, and the human eye comfort is good.
- Excellent thermal and voltage drop design ( 2 OZ copper FPC design)
- Matching various dimming solutions, easy to use.

Main Parameters
Product size 5000*10*1.15 mm
Cut-able unit 50 mm
LED pitch 7.14 mm
LED quantity 140 LEDs/m
Max. cascade length 5 m
Min. bend diameter 20 mm
Mounting solution 3M tape
Operating ambient -25ºC~45ºC
Storage environment -25ºC~60ºC / 60% RH

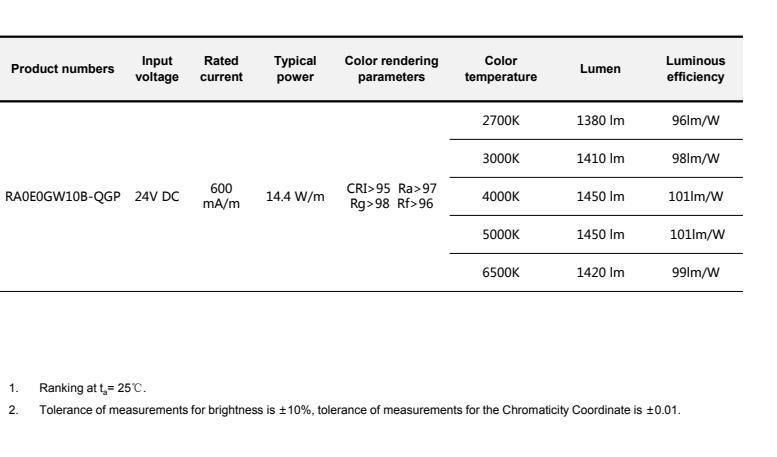

   Photometrical data

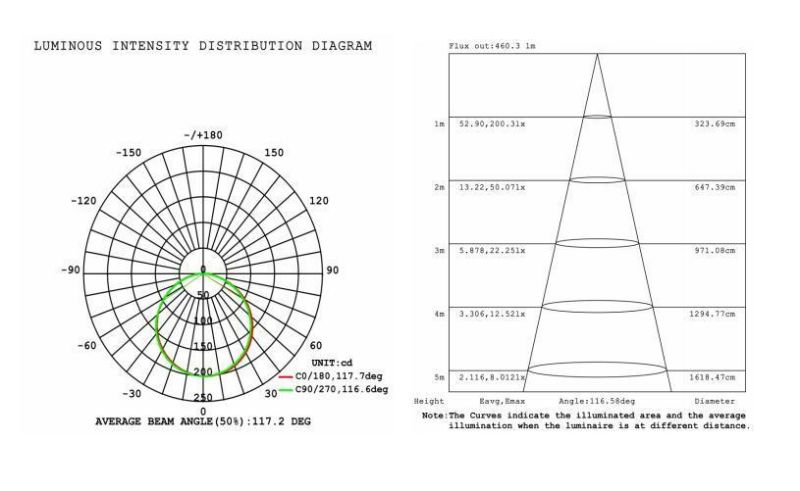

Optical illuminance parameters

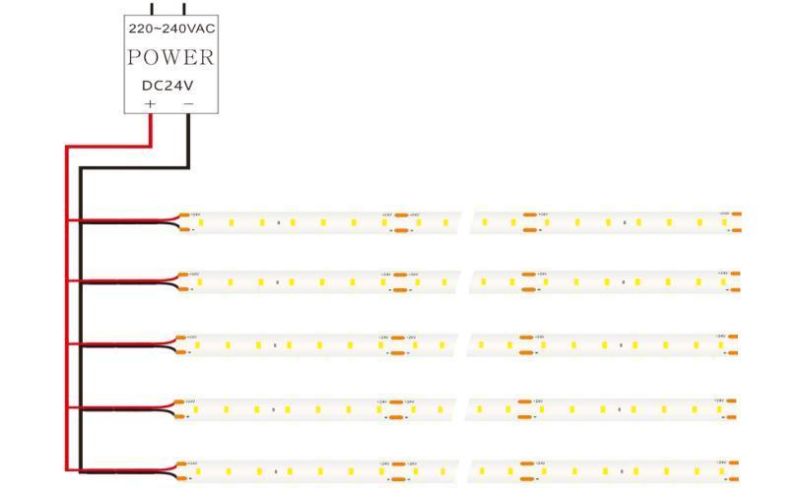

Product wiring diagram

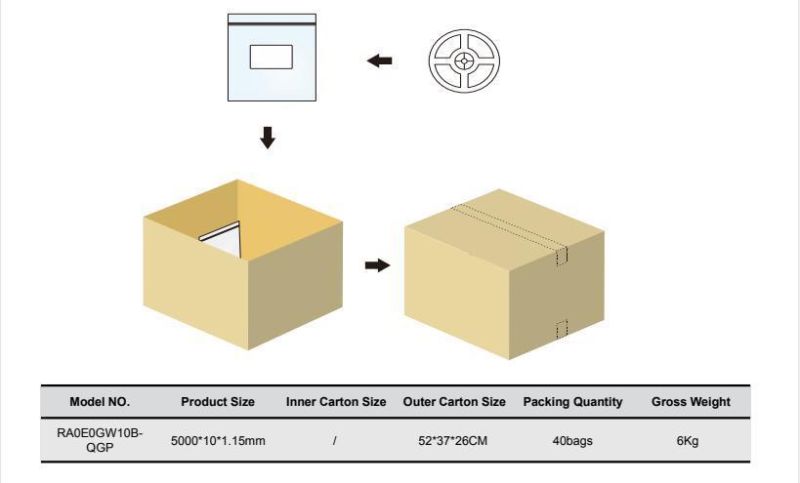

Package

Instructions
- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.
- Installation by qualified electrician only.
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.
- Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
- Do not fold it in case any damage of LED beads.
- Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
- Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the
voltage of the strip to avoid damage.
- LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40
ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH.
- Please use the strips without waterproof within indoor environment with humidity less than 70%.
- Please be careful during operation. Do not touch the AC power supply in case of electric shock.
- Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.
- Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
