• Model NO.：RNFC0GX13X

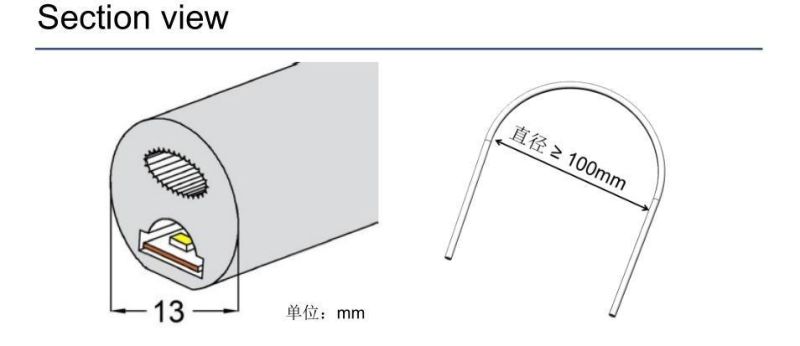

• Size：Diameter 13mm
• Lumens：Red 95lm,M, Green 54lm,M, Blue 35lm,M

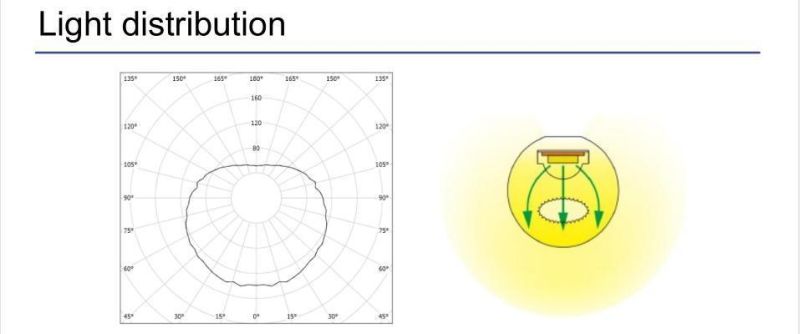

• Beam Angle：270 Degrees

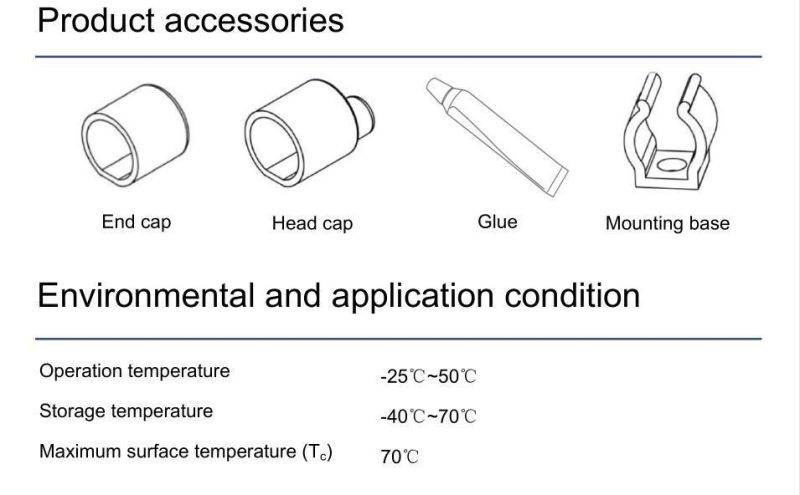

• Operation Temperature：-25 Centigrade Degrees to 50 Centigrade Degrees
• Storage Temperature：-40 Centigrade Degrees to 70 Centigrade Degrees
• Maximum Surface Temperature：70 Centigrade Degrees

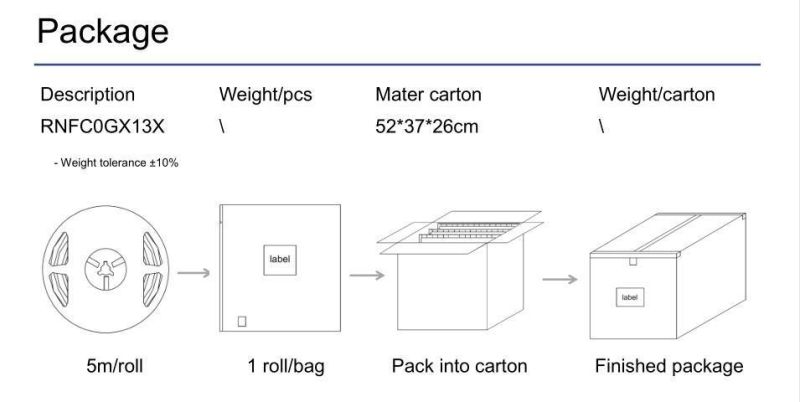

• Transport Package：Carton Packing
• Specification：5M per roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. RNFC0GX13X Size Diameter 13mm Lumens Red 95lm/M, Green 54lm/M, Blue 35lm/M Beam Angle 270 Degrees Operation Temperature -25 Centigrade Degrees to 50 Centigrade Degrees Storage Temperature -40 Centigrade Degrees to 70 Centigrade Degrees Maximum Surface Temperature 70 Centigrade Degrees Transport Package Carton Packing Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Beam angle 270 degrees 13mm diameter DC12V/DC24V 2835 flex neon LED strip
Application
Landscape lighting, facade lighting, steps, bridges, roads, shape, decorative lighting, etc.

Main features
- Excellent performance 2835 package SMD LED
- High quality FPC, more stable performance
- Ultra large beam angle, wide range lighting
- Excellent weather and corrosion resistance
- CCT: 2700K-6500K, other color available
- Warranty 3 years

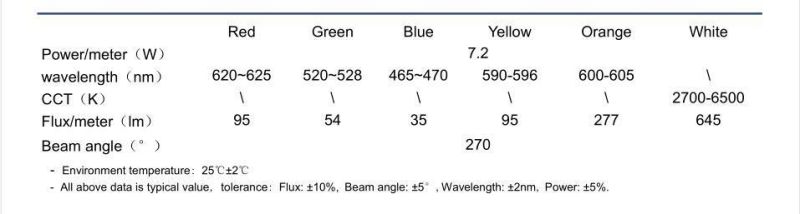

Main Parameters





Instructions
- The diameter of extension wires should be considered based on possible maximum current, load power
and wire loss.
- The LED neon strips itself and all its components may not be mechanical stressed.
- To avoid mechanical damage to the connecting cables, the LED neon strips should be attached securely
to the fixture.
- Installation of LED neon strips with (power supplies) needs to be made with regard to all applicable elec-
trical and safety standards. Only qualified personnel should be allowed to perform installations.
- Please ensure that the power supply/controller is of adequate power to operate the total load.
- Please ensure that the power supply/controller with correct output parameters (driving mode, voltage,
current) for LED neon strips.
- Pay attention to standard ESD precautions when installing the strips.

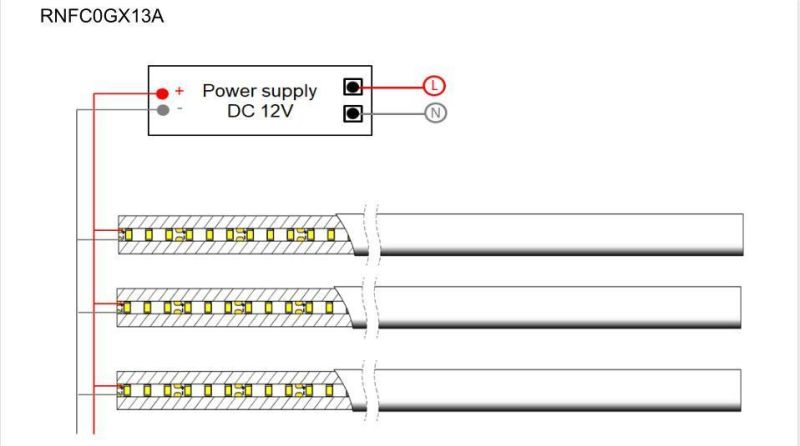

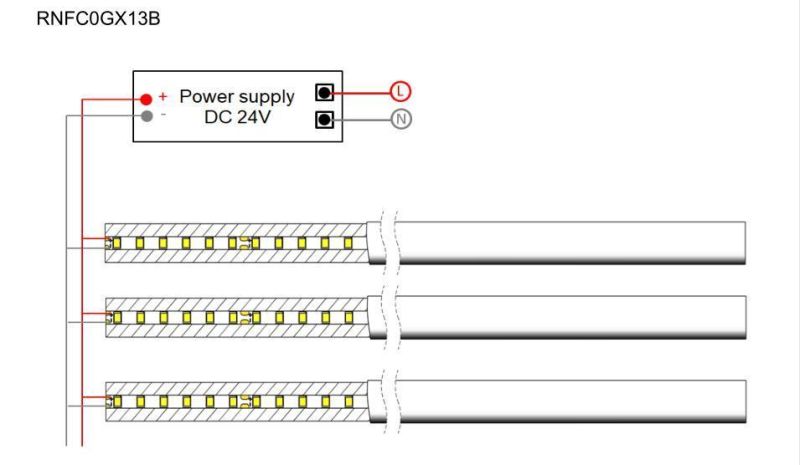

- The LED neon strips should be driven by constant voltage SELV control gear with 24/12 VDC output.
Recommended to choose high qualified power supply/controller, which have short circuit protection, over
voltage and over loading protection function etc.
- Must have extra power supply if the working length exceeds the maximum run length.
- The joints of extended strips should be deal with waterproof when using waterproof products.
