• Voltage：DC24V
• IP Rating：IP33
• Macadam Level：3~5 Step
• Max.Length：5m,Roll LED Strip
• Warranty：3 Years
• LED Type：COB,Fob
• PCB Width：8mm or 10mm or 12mm LED Strip
• Transport Package：Anti-Static Package
• Specification：5000*8mm LED Strip
• Trademark：MSS LED,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：60, 000m,Month
• Package size per unit product：1.00cm * 1.00cm * 1.00cm
• Gross weight per unit product：1.000kg

Basic Info.

Voltage DC24V IP Rating IP33 Macadam Level 3~5 Step Max.Length 5m/Roll LED Strip Warranty 3 Years LED Type COB/Fob PCB Width 8mm or 10mm or 12mm LED Strip Transport Package Anti-Static Package Specification 5000*8mm LED Strip Trademark MSS LED/OEM/ODM Origin China HS Code 9405409000 Production Capacity 60, 000m/Month

Packaging & Delivery

Package size per unit product 1.00cm * 1.00cm * 1.00cm Gross weight per unit product 1.000kg

Product Description

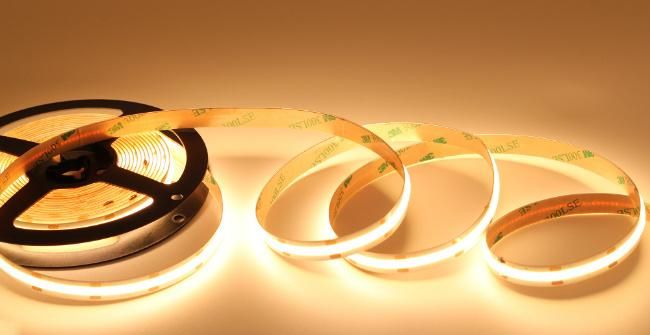

High Density Dots free Flexible Tape Light DC12V 24V COB LED Strip Light with CCT 3000K 4000K 6000K

Features

1. No light spots, no shadows, soft light.
2. The illumination angle can be up to 180°
4. Available Size: 5-10mtrs per roll
5. Antistatic rating (MIL-STD-883E): HBM 2 (2000~4000V)
6. Suitable for regular led strip installation way, this product no harmful substances and meets RoHS environmental protection standards.

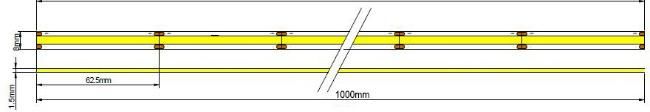

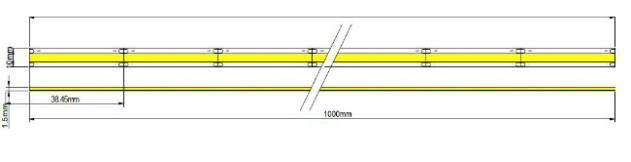

Dimension




Product parameters


Dimension	Input	Chips Qty	Resistor Qty	Watts	FPCB	Lumens	CCT	Ra
1000*8mm	24V DC	512	24	10W±0.5	35um+35um	120lm/W±10%	2700/3000K /4000K/6500	≥90
1000*8mm	24V DC	546	52	16W±0.5	35um+70um	105lm/W±10%	2700/3000K /4000K/6500	≥90

Application

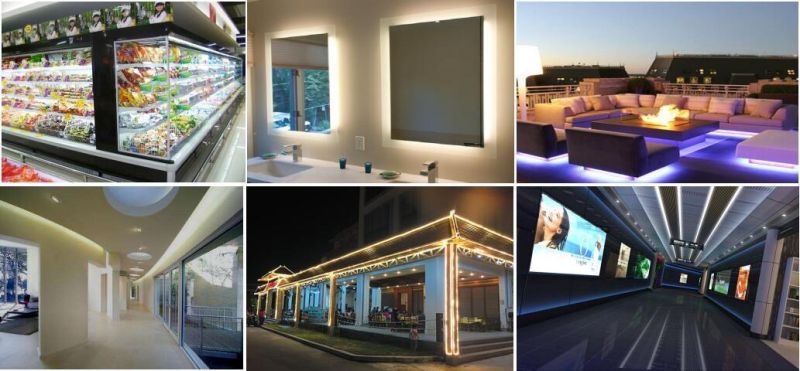

Decorative lighting, signage, advertising signs, booths, etc.




Company Profile :

MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products,  and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different  length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
