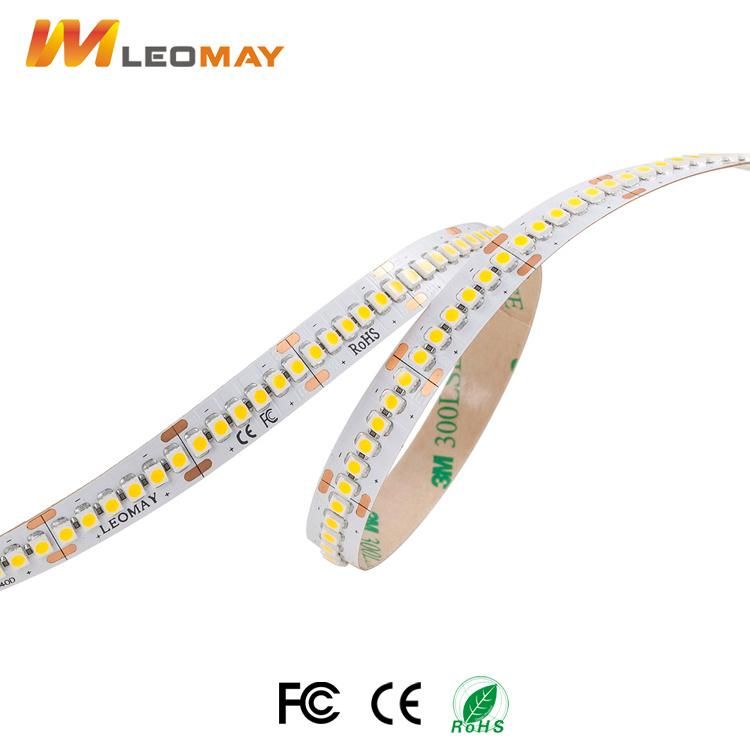

Super brightness SMD3528 240LEDs 24V Double row LED Strips
Leomay Technology Co., Ltd.- Certification：FCC, UL, RoHS, CE
- Power：19.2 W,M
- Emitting Color：White
- Voltage：24V
- IP Rating：IP65
- LED Qty/m：240LEDs,m 3528
Base Info
- Model NO.：LM3528-WN240-24V-15mm
- LEDs Suppliers：Honglitronic,Osram,Samsung
- LEDs material：packaged by 99.99% pure gold wire
- LED BINs：3-Step,5-Step, same BIN for each order
- LED Chip Brand：Sanan(Epistar optional)
- PCB Width：15mm
- PCB material：Double-sided coated pure copper
- PCB thickness：2Oz (front 35um,back 35um)
- Adhesive Tape：9495 3000LSE 3M tape
- IP Grade：IP20,IP60,IP65,IP68
- Transport Package：5m,Roll
- Specification：CE, RoHs, FCC
- Trademark：Leomay
- Origin：Zhongshan, Guangdong, China
- HS Code：940540900
- Production Capacity：50000meter,Month
Description
Basic Info.
Model NO. LM3528-WN240-24V-15mm LEDs Suppliers Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 15mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll Specification CE, RoHs, FCC Trademark Leomay Origin Zhongshan, Guangdong, China HS Code 940540900 Production Capacity 50000meter/MonthProduct Description
Super brightness SMD3528 240leds/M, DC 24V,Double rorw LED strips with long lifestime.Product Parameter
| Model No. | LM3528-WN240-WW-24V |
| LED Qty | 240 leds/m 3528 |
| Rated Power(W) | 19.2W/M, 96W/5M |
| Voltage(V) | 24V DC |
| PCB Width | 15 MM |
| PCB materials | 2Oz Double-sided coated pure copper |
| Luminous(lm/m) | 1500 lm/m |
| LED Chip Brand | Sanan(Epistar optional) |
| LED's material | Packaged by 99.99% pure gold wire |
| LED Bins | 3-Step/5-Step, same BIN for each order |
| LED Supplier | Honglitronic (Osram/Samsung optional) |
| CRI(RA>) | CRI80(CRI 90 optional) |
| Color | W/WW/CW/R/G/B/Y/O/UV/Pink |
| Color Temperature | 2200K, 2700K, 3000K, 3500K, 4000K, 6000K, 7000K |
| IP Rate | IP20 (IP54/IP67/IP68 optional) |
| View Angle | 120° |
| Product Size(mm) | 15*5000mm |
| Package(m/roll) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
| Working Temperature(ºC) | -20-60 |
| Cutting Unit | 6 LEDs |
| Adhesive Tape | 9495 3000LSE 3M tape |
| Dimmable | Yes |
| Certificate | UL, CE, RoHs, FCC |
| Warranty | 3 Years |
