• Model NO.：LM3014-WN140-CCT-24V
• LED Supplier：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• Width of PCB：12mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：Static-Resistant Bag or Customer′s Package
• Specification：14w
• Trademark：Leomay
• Origin：China
• HS Code：9405409000
• Production Capacity：10000m,Day

Basic Info.

Model NO. LM3014-WN140-CCT-24V LED Supplier Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) Width of PCB 12mm PCB material Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package Static-Resistant Bag or Customer′s Package Specification 14w Trademark Leomay Origin China HS Code 9405409000 Production Capacity 10000m/Day

Product Description

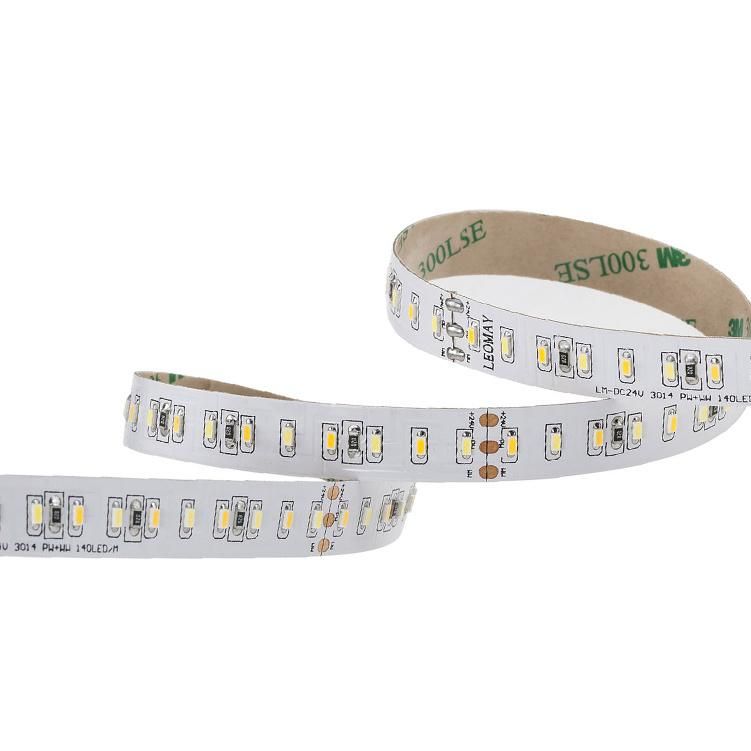

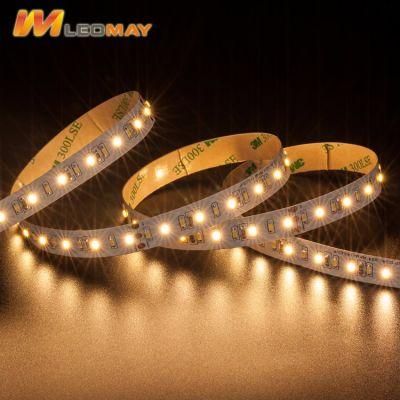

3014 Color Changing LED Strip Lights CCT LED Strip Light Ribbon

Product Specification:

Model NO	LM3014-WN140-CCT-24V-12MM
Product Name	SMD3014 140LEDS/M CCT LED strips
PCB Width	12MM
LED Qty/m	140leds/m 3014
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	7W/M, 35W/5M
Luminous(lm/m)	1820lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	12*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Payment Terms:

T/T(Bank Transfer),Paypal,Western union,Money Garm,Credit Card,Master Card.



MOQ:

For standard products, no MOQ, 1M is also acceptable.



Product Applications:

a. Indoor and outdoor decoration lightings.

b. Large scale backlight.

d. Window display lighting.

e. Building contour decorative lighting.

f.  Ad. Signs, light boxes.

g. Landscape outlines.

h. Car and motorcycle decorative lighting.

i. Bridge edge lighting.

j. Architectural decorative lighting.

k. Emergency hallway lighting.

l. Festival lighting, like Christmas.



Delivery time and methods:

1, Delivery Detail:2-3days for samples,6-10 days for mass production.

2, Shipping Detail:By express:DHL,UPS,TNT,FEDEX,EMS ect.

3, Air Freight:When your order more than 100kg which will be more economical than express.

4, Sea freight:Shipping by SEA is available after customer provide destination port.

5, Agent designated by customer:Please tell us the contact details of your shipping agent/forwarder.

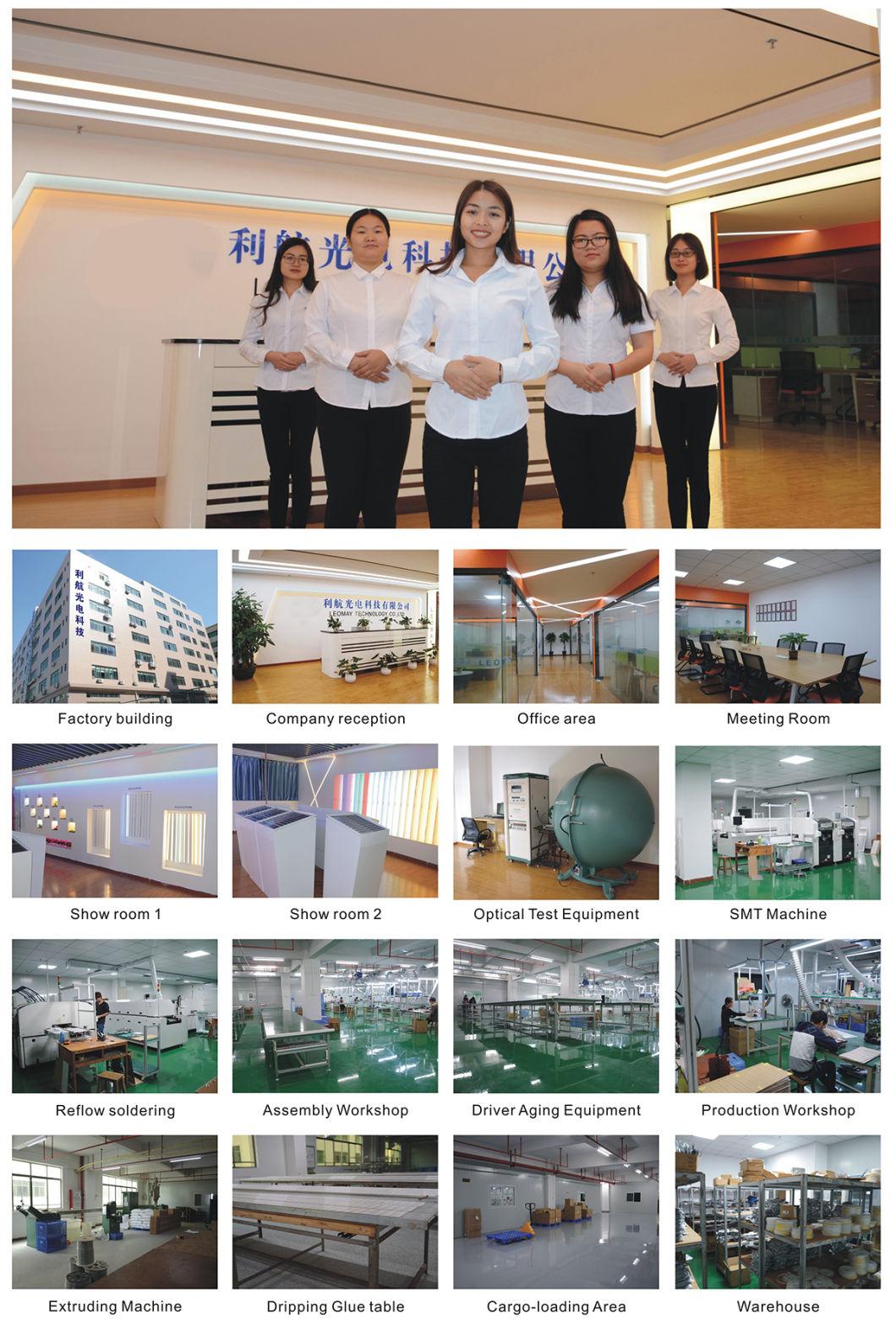

Company Information



Trade Shows

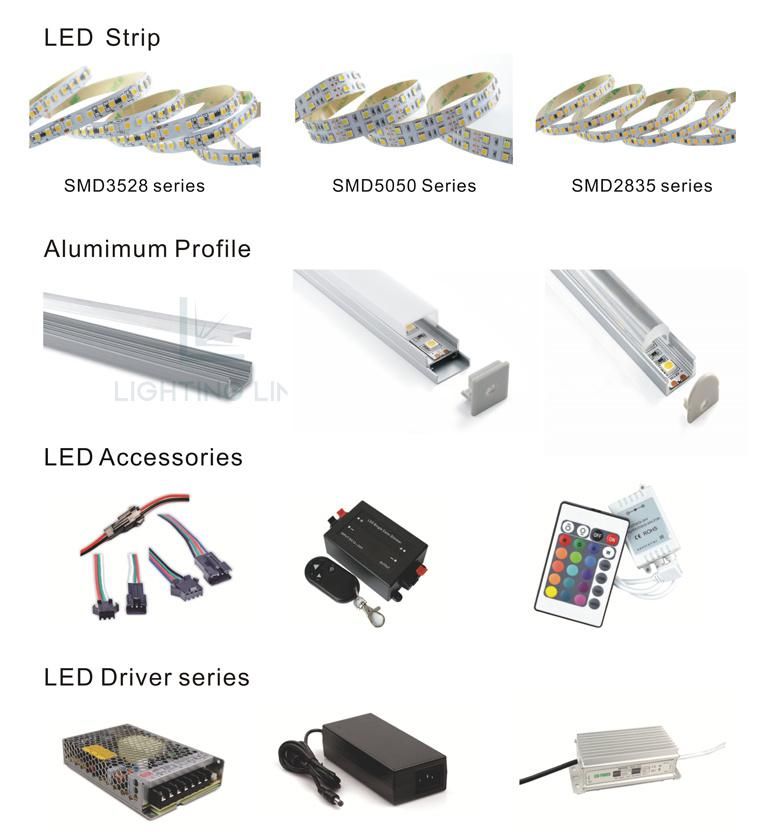

Catalog&Accessories



Packing & Delivery


customers Installation

FAQ
1) What are the best selling products in Leomay?
- LED Strip
- Aluminum LED Profiles
- Controllers&Remote
- Power Supply
- Connector

2) What is the main market for Leomay?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new Leomay LED technology. We are also optimistic about the markets for other American and Asian regions.

3) What is Leomay lead time for LED Strip?
Usually we ship orders in 7-15 Days. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

4) Can Leomay do custom assembly or offer OEM product?
Leomay has gained a lot of experience on OEM assembly of LED strip lighting. The LED strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won't disclose or sell customer unique designs or jointly developed products to another third party.

5) Do you have warranty for products?
Yes, we have 2 and 3 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Leomay engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

6) How to buy Leomay products?
In most case we sell directly to customers worldwide, also we have already set up Alibaba Chanels,you can directly click "Contact Us" in the below to email us or make a call.We will respond with quick service maximum within 12 hours.
