• Model NO.：LM3528-WN120-12V
• Lead Time：7-15 Days
• Life：50000hours
• LED Qty：120 LEDs 3528
• CCT：Green Color
• Cutting Unit：3LEDs
• PCB Width：8mm
• LED Supplier：Honglitronic,Osram,Samsung
• Chip Brand：Sanan(Epistar optional)
• Adhesive Tape：9495 3000LSE 3M tape
• BINs：3-Step,5-Step, same BIN for each order
• LEDs：packaged by 99.99% pure gold wire
• PCB：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Statie-Resistant Bag
• Specification：5000*8mm
• Trademark：Leomay
• Origin：Zhongshan Guangdong China
• HS Code：940540900
• Production Capacity：100000meters,Month

Basic Info.

Model NO. LM3528-WN120-12V Lead Time 7-15 Days Life 50000hours LED Qty 120 LEDs 3528 CCT Green Color Cutting Unit 3LEDs PCB Width 8mm LED Supplier Honglitronic/Osram/Samsung Chip Brand Sanan(Epistar optional) Adhesive Tape 9495 3000LSE 3M tape BINs 3-Step/5-Step, same BIN for each order LEDs packaged by 99.99% pure gold wire PCB Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Statie-Resistant Bag Specification 5000*8mm Trademark Leomay Origin Zhongshan Guangdong China HS Code 940540900 Production Capacity 100000meters/Month

Product Description

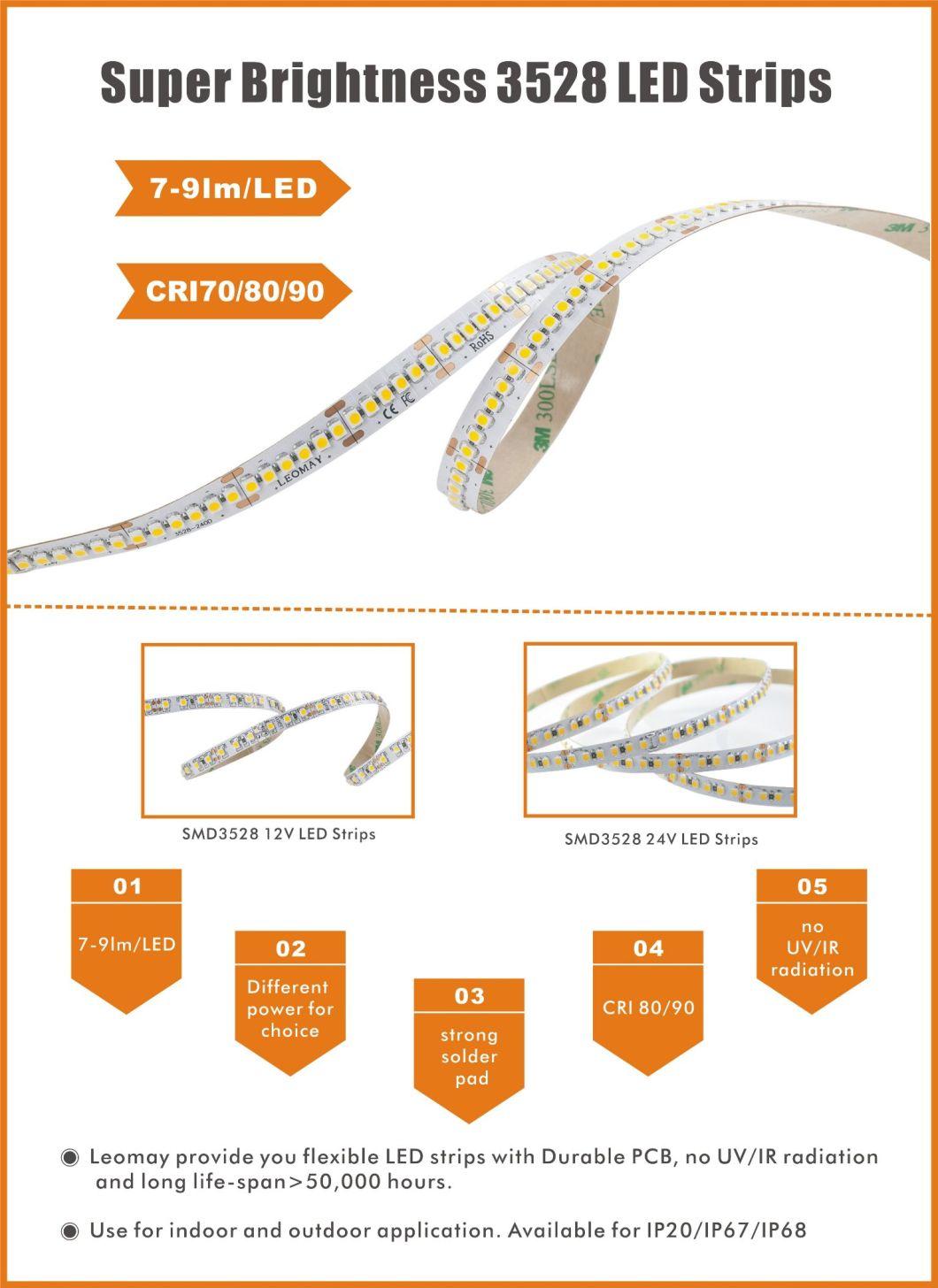

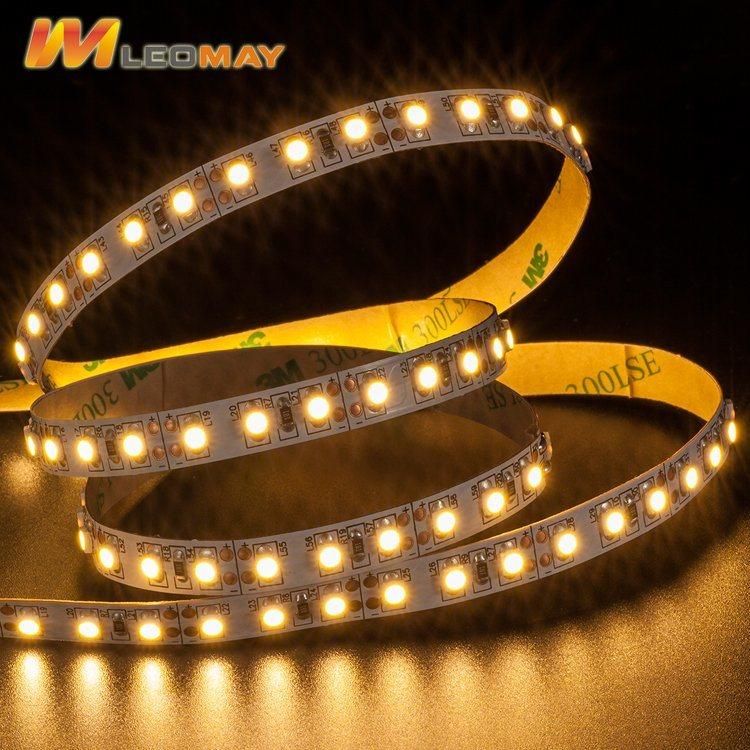

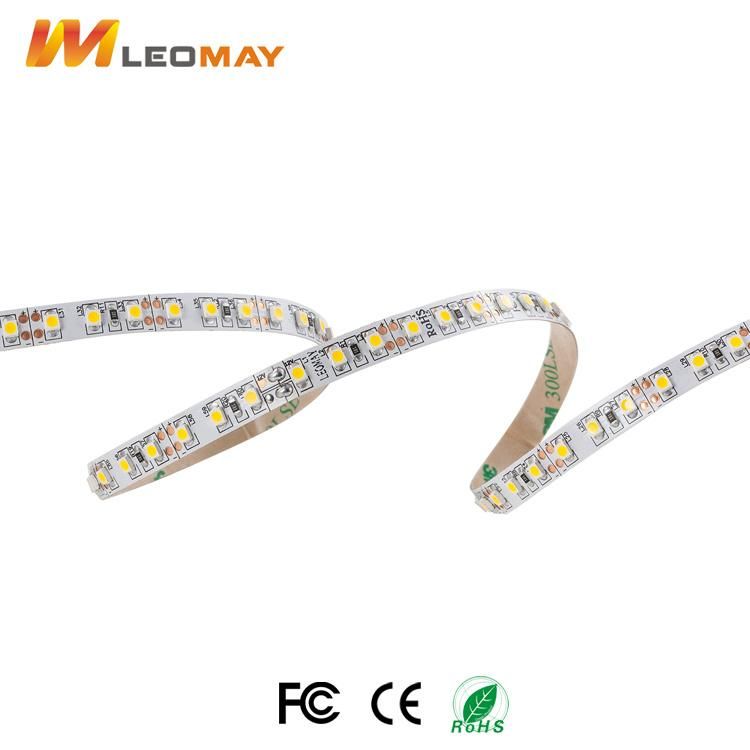

          Flexible Decorative Light Colorful SMD3528 120LED/M LED Strip with CE, UL, RoHS

Product Specification:

Model NO	LM3528-WN120-CCT-24V-8MM
Product Name	SMD3528 120LEDS/M CCT LED strips
PCB Width	8MM
LED Qty/m	120leds/m 3528
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	4.8W/M, 24W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years


Features


 A. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.

B. Reliable SMD Source, Epistar. SMD 3528, super brightness, high CRI, ideal for restraurant and super market, make everything looks more real.

C. Operating low voltage (DC12V, DC24V) for human safety.

D. Energy saving and environmental conservation, long lifespan.

 Our Services
 A. 16.4ft(5Meter) per reel as standard length, different length can be customize.

B. We are Very Honest and Careful factory direct sell the products.

C. Our all customer know: our Connector, Install Cips, Wires, is free with Orders.

D. The Shipping from us, very fast, because when we know the Normal prodcuts you often ordered, we will do stock produce.

E. We can support special customized package for you.

F. We can support complete cut/connection accessories, such as: aluminum profiles,led power supply, Mi.light controller,  connectors, etc.

We are will be Your Cheapest, Fastest, Most Professional and Reliable Suppier.


Certifications




 Company Information

About Leomay

Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL,CE,FCC,RoHS and SGS, which is engaged in researching, manufacturing and selling new LED lighting products. Now Leomay products mainly cover LED Strip Light, LED Rope Light, Aluminum profile, LED Linear Light, LED Panel Light, LED Tube, etc.

Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.


 FAQ
 1) What are the best selling products in Leomay?
- LED Strip
- Aluminum LED Profiles
- Controllers&Remote
- Power Supply
- Connector

2) What is the main market for Leomay?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new Leomay LED technology. We are also optimistic about the markets for other American and Asian regions.

3) What is Leomay lead time for LED Strip?
Usually we ship orders in 7-15 Days. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

4) Can Leomay do custom assembly or offer OEM product?
Leomay has gained a lot of experience on OEM assembly of LED strip lighting. The LED strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won't disclose or sell customer unique designs or jointly developed products to another third party.

5) Do you have warranty for products?
Yes, we have 2 and 3 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Leomay engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

6) How to buy Leomay products?
In most case we sell directly to customers worldwide, also we have already set up Alibaba Chanels,you can directly click "Contact Us" in the below to email us or make a call.We will respond with quick service maximum within 12 hours.
