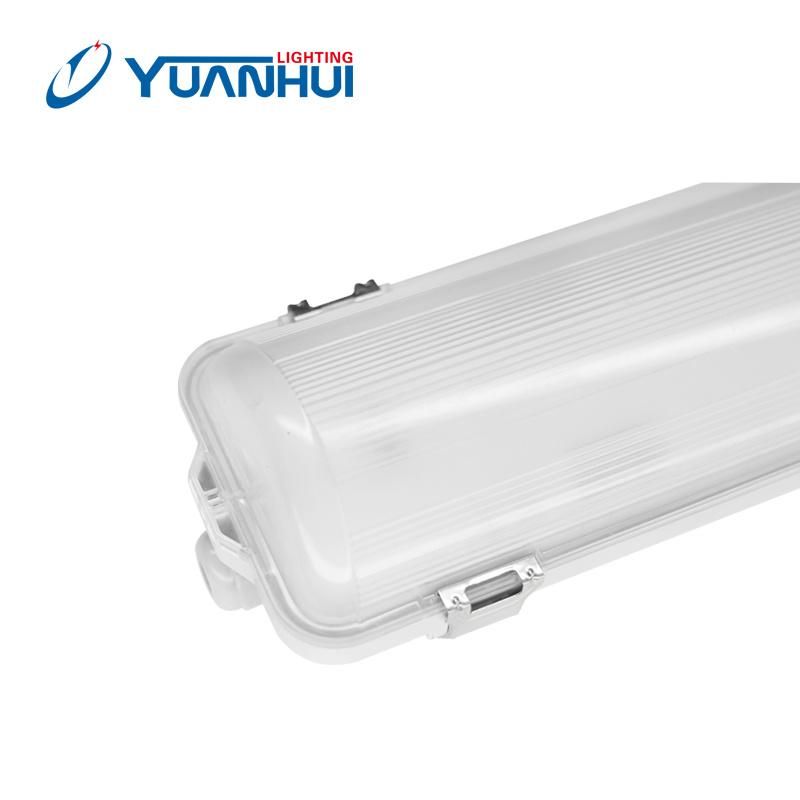

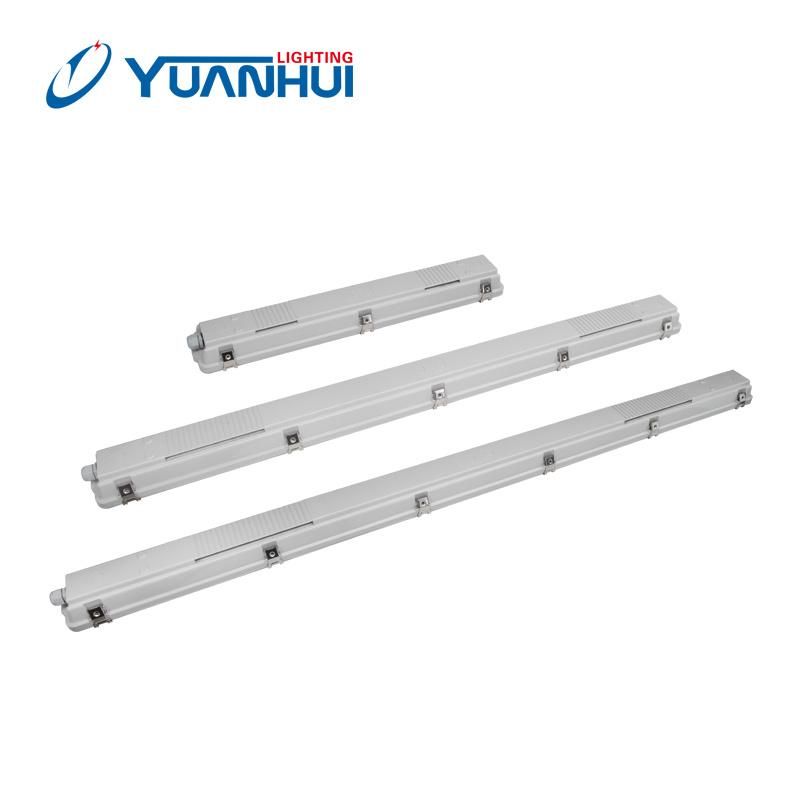

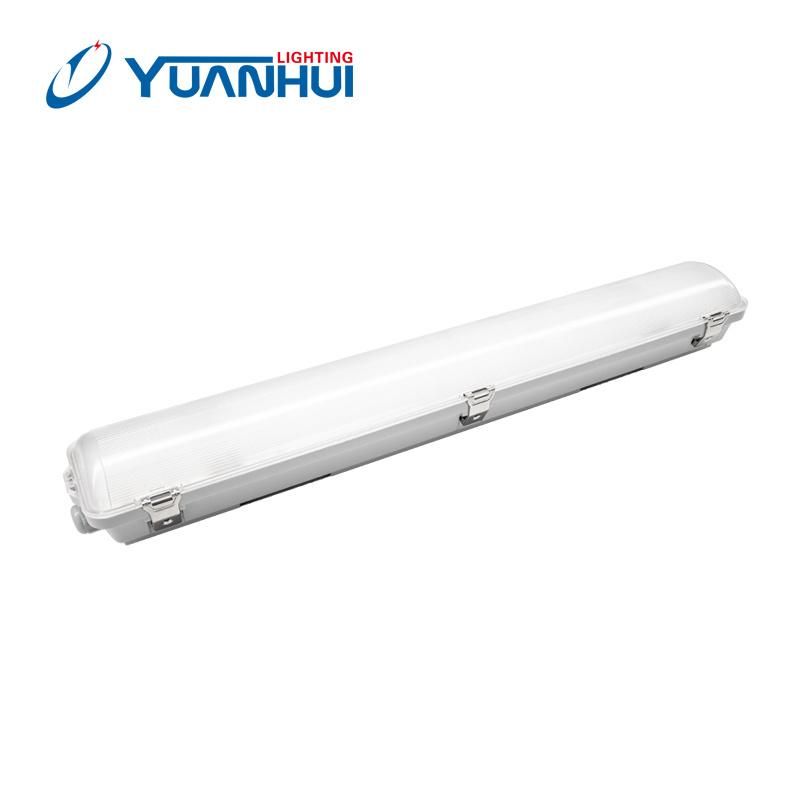

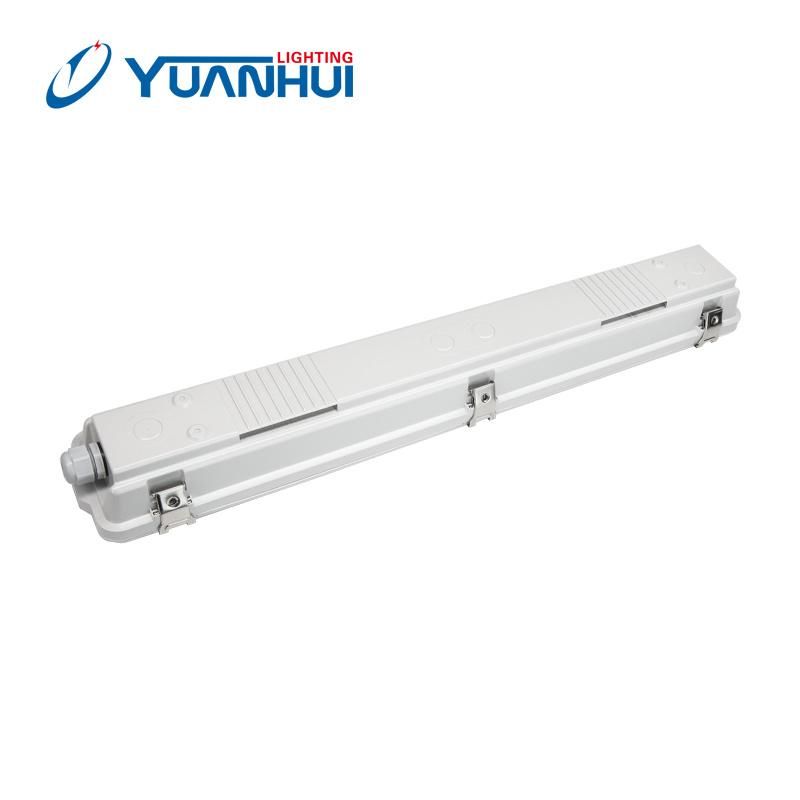

LED Tri-Proof Light IP66, with Opal or Clear
Cixi Yuanhui Lighting Electric Co., Ltd.- Certification：GS, SAA, CCC, UL, EMC, RoHS, CE, cUL Enec CB C-Tick
- Power：12-70W
- Emitting Color：White
- Voltage：220-240V
- IP Rating：IP66
- CRI：80
Base Info
- Model NO.：LMF
- IP：66
- Ik：08
- Material：Polycarbonate Material
- Lens：Opal or Clear
- Transport Package：in The Box,Cotton
- Specification：GS SAA CCC UL EMC ROHS CE CUL etc
- Trademark：Yuan Hui
- Origin：Cixi, Zhejiang, China
- HS Code：9405409000
- Production Capacity：10000PCS,Month
Description
LMF12-600LMF24-600 LMF24-1160 LMF36-1160 LMF48-1160 LMF34-1560 LMF54-1560 LMF70-1560 Lens OPAL CLEAR OPAL CLEAR OPAL CLEAR OPAL CLEAR OPAL CLEAR OPAL CLEAR OPAL CLEAR OPAL CLEA CCT@Lumen
Output(lm) 2700K-6500K(Standard: ANSI C78.377) 1372 1537 2648 2967 2527 2831 3716 4163 4840 5423 3207 3593 5082 5694 6291 7048 Certificate CE-LVD EMC ROHS GS CB ENEC SAA C-TICK CCC UL Power(W±10%) 12W 24W 24W 36W 48W 34W 54W 70W LED
No./Spec.(SMD) 24PCS 50PCS 50PCS 75PCS 104PCS 78PCS 120PCS 156PCS Input Voltage(V) AC220-240V,50/60Hz CRI 80 Beam Angle(°) 120 Driver Type OSRAM LED Chips EVERYLIGHT 2835/LEXTAR 2835 Operating
Ambient
Temperature(ºC) -20ºC~40ºC Operating
Humidity(ºC) 10-%~90% Warranty Up to 5 Years IP IP66 IK 08 GLOW WIRE TEST Pass 850ºC Material Polycarbonate material Net Weight(kg) 0.96 1.96 1.78 1.92 1.92 2.56 2.56 2.56 Product Size(mm) 600*120*108 1160*120*108 1560*120*108
1.INPUT VOLTAGE: AC220V-240V, 50/60Hz.
2.HIGH PERFORMANCE- OSRAM DRIVER for maximum efficiency.
3.EFFICACY- High Quality LED chips: from EVERYLIGHT /LEXSTAR for maximun light output and life.
4.RELIABILITY- Reflector with MCPCB as heat sink.
5.RUGGED- Body & Diffuser have an High Impact Rating IK08 and GLOW WIRE TEST Inflammability Test to 850ºC.
6.PERFECT REPLACEMENT for the whole set of T8 fluorescent lightig fixture.
7.SAVE UP to 60% in electricity consumption compared to fluorescent lighting fixture.
8.LONG LIFETIME- 50,000 hours or typically Ten Years before replacement.
9.LIGHTWEIGHT body material, corrosion resistant, waterproof and dustproof.
10.EASY INSTALLATION with fast connection design, shorten the installasion process and save labor cost.
11.FLEXIBILITY- Module can be fitted with Microwave sensors and an Emergency Battery to meet your special order requirement.
12.WIDE OPERATING RANGE- IP66 Dust, Dirt and water jet proof and temperature from -20ºC~40ºC.
3.Applications:
Multi-storey Car Parks, Warehouse and Factories, Farm Buildings & Stables, Transport Hubs(platforms), Schools & Hospitals (walkways & kitchens) ,Glasshouses/Horticultural buildings, Sports Stadiums etc.
FAQ:
Q1: Can I have a sample order for led light?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What is the lead time?
A2: Samples need 3-5 working days, mass products need 7-10 days.
Q3: Do you have any MOQ limit for led light order?
A3: Low MOQ, 1pc for sample checking is available.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to proceed an order for led light?
A5: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6: Is it OK to print my logo on led light product?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
