• Model NO.：LM335-WN60-12V
• LED Supplier：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：Neutral Packing, OEM Packing Are Available
• Specification：CE, RoHS, FCC
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

Basic Info.

Model NO. LM335-WN60-12V LED Supplier Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB material Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package Neutral Packing, OEM Packing Are Available Specification CE, RoHS, FCC Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

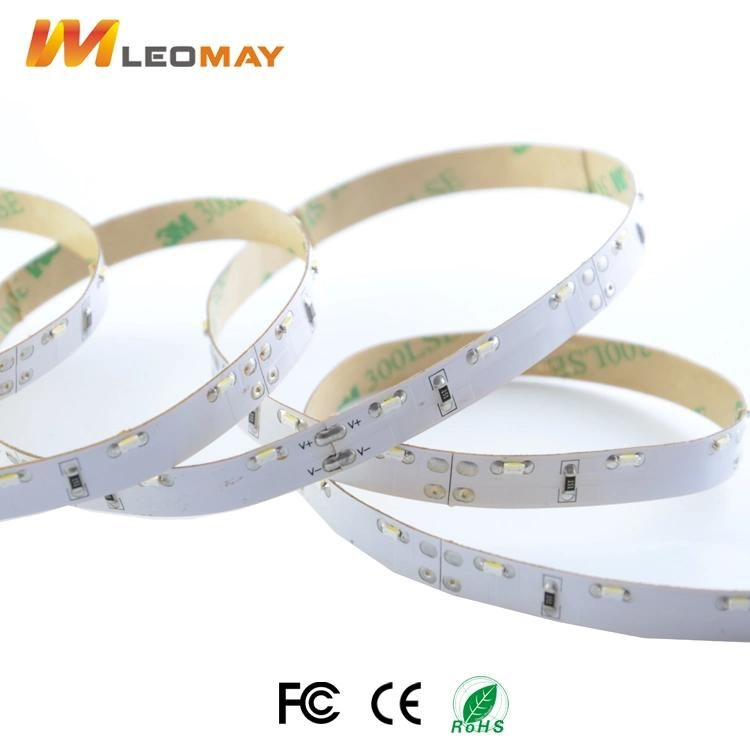

Home Decoration SMD335 Side Lighting LED Strip Light





LED STRIP LIGHT FEATURES:

1.Color changing led strip light is elegant design,excellent quality,fine craftsmanship and good high-stimulative effect

2.Low energy consumption and  can be adjusted according to needs voltage output,safe for touching

3.Waterproof,heatproof,cold resistant,anti-wind,anti-aging

4.Can be used for decorations and outline design .

5.Customized color and size are available

6.Simple installation,easy to maintain

7.Color changing led strip light meet 2 years warranty


Product Description

Model NO	LM335-WN60-12V-8MM
Product Name	SMD335  60LEDS/M  LED strips
PCB Width	8MM
LED Qty/m	60leds/m 335
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	12V DC
Rated Power(W)	4.8W/M, 24W/5M
Luminous(lm/m)	420lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years




Features
Super brightness, high intensity and reliability.
Low power consumption.
Long life span over 50, 000 hours.
Fast and simple installation with adhesive back tape
Low maintenance.
Real 3M adhesive tape
IP Rate: IP20/65/67/68





LED strip light applications

• Buildings
• Bridges
• Homes
• Display cabinets
• Hotel decoration
• City brightening
• Outdoor advertising
• Places of entertainment
• Pavilions Crochet lighting
• Interior dark groove decoration


Model	LED QTY	Volt	Power	Lumen/m	CRI	PCB Width	IP Rate	Color
LM335-WN60	60leds/m	12V-24V	4.8w/m	360lm/m	80	8mm	IP20/65/67/68	white/warm whte
LM335-WN120	120leds/m	12V-24V	9.6w/m	720lm/m	80	8mm	IP20/65/67/68	white/warm whte

Frequently Asked Questions

Q: Are you a factory?
A: Yes, we are LED lights manufacturer in Zhongshan, China.

Q: Can I have samples to test?
A: Yes, sample test is available and welcome.

Q: Can our logo or a simple parameter printed on the label of the led flexible strip?
A: Sure, if you like, we can print for you. Just telling us your requirements.

Q: Can you make the lamps using other brand led chip, e.g. CREE, OSRAM?
A: Yes, it is ok for other brand chips, we can produce the products according to your demands.

Q: What's the payment method you accept?
A: Usually we take T/T(bank wire transfer). You can also pay by Western Union.

Q: What is Delivery Time?
A: 5~7 days for normal orders; fast shipping for exact delivery time needs to discuss according to your order list; We keep our regular products in stock, you can consult with us about the shipping date.

Q: How about the warranty?
A: 2 years.

Q: Do you attend the Exhibitions?
A: Yes, we attend Canton Fair; HK Lighting Exhibition, International Exhibitions etc.

Q: What is the package?
A: Anti-static Package, 5M/roll. Also you can offer your own designs, you can also come to us for exact pictures for packing.

Q: What is your shipping method?
A: UPS, DHL, Fedex, TNT or EMS or Shipping by Air; Vessels by Sea or Domestic Shipping.
