• Model NO.：LM335-WN60-12V-8MM
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Static-Resistant Bag
• Specification：CE, RoHS, FCC
• Trademark：LEOMAY
• Origin：Guangdong, China
• HS Code：9405409000
• Production Capacity：10000 Meter,Day

Basic Info.

Model NO. LM335-WN60-12V-8MM LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Static-Resistant Bag Specification CE, RoHS, FCC Trademark LEOMAY Origin Guangdong, China HS Code 9405409000 Production Capacity 10000 Meter/Day

Product Description

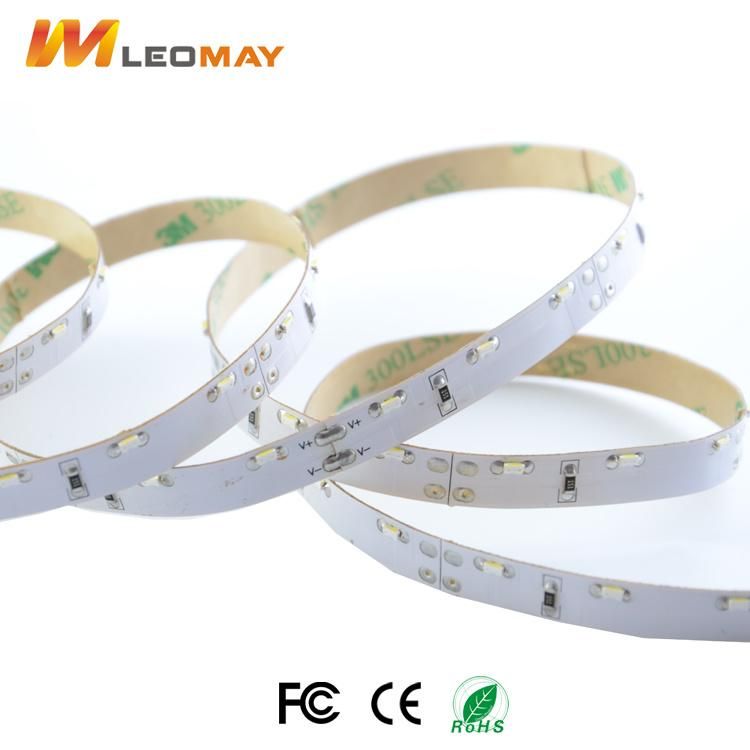

Side Emitting SMD335-WN60 12V LED Flexible Strip Light






Specification:

Model NO	LM335-WN60-12V-8MM
Product Name	SMD335  60LEDS/M  LED strips
PCB Width	8MM
LED Qty/m	60leds/m 335
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	12V DC
Rated Power(W)	4.8W/M, 24W/5M
Luminous(lm/m)	420lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes

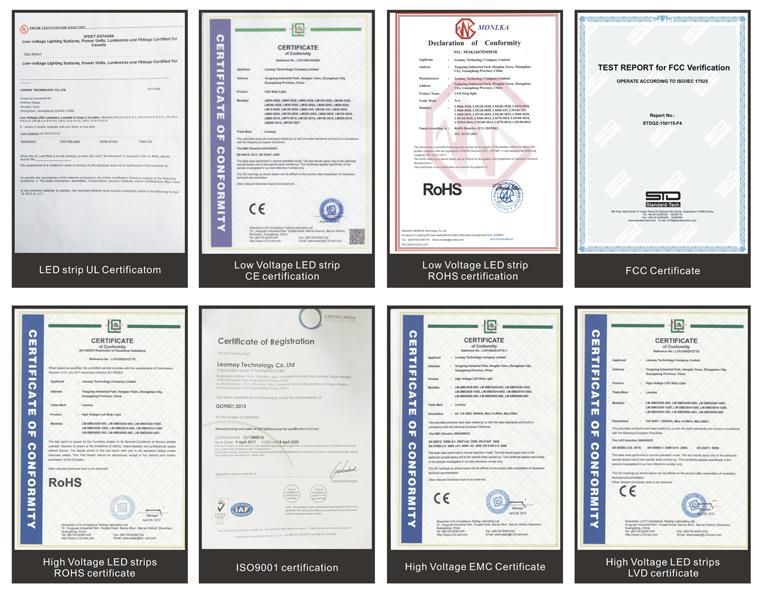

Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Features:
Super brightness, high intensity and reliability.
Low power consumption.
Long life span over 50, 000 hours.
Fast and simple installation with adhesive back tape
Low maintenance.
Real 3M adhesive tape
IP Rate: IP20

Application:
Widely used for Exterior & Interior decorations such as home, hotel, clubs, shopping malls, bars etc...
Widely used for automobile and bicycle decoration, border or contour lighting etc...
Popularly applied in backlighting, concealed lighting, channel letter lighting, advertisement sign lighting and emergency lighting etc.
Decorative lights for party, event, shows, exhibitions etc...


Model	LED QTY	Volt	Power	Lumen/m	CRI	PCB Width	IP Rate	Color
LM335-WN60	60leds/m	12V-24V	4.8w/m	360lm/m	80	8mm	IP20/65/67/68	white/warm white
LM335-WN120	120leds/m	12V-24V	9.6w/m	720lm/m	80	8mm	IP20/65/67/68	white/warm white
