• Model NO.：LM335-WN120-WW-24V
• LEDs Suppliers：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Static-Resistant Bag
• Specification：5000*8mm
• Trademark：Leomay
• Origin：Zhongshan Guangdong China
• HS Code：940540900
• Production Capacity：500000meters,Month

Basic Info.

Model NO. LM335-WN120-WW-24V LEDs Suppliers Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Static-Resistant Bag Specification 5000*8mm Trademark Leomay Origin Zhongshan Guangdong China HS Code 940540900 Production Capacity 500000meters/Month

Product Description

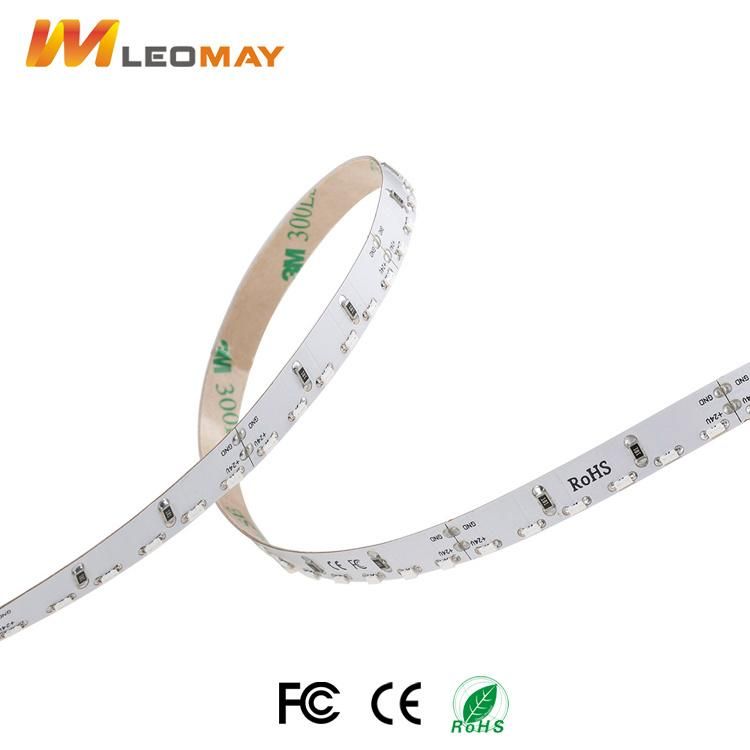

CRI90+ SMD335 Side-Emitting LED Strip Light with CE RoHS for decoration






335 Series LED Strip Options:
60leds/m or 120leds/m Option                      5MM or 8MM Width FPC Options
Single color or RGB COLOR Option             DC12V or DV24V Options
Can be Cut/Connect each 0.05M



Product Specification:

Model NO	LM335-WN120-24V-8MM
Product Name	SMD335  120LEDS/M  LED strips
PCB Width	8MM
LED Qty/m	120leds/m 335

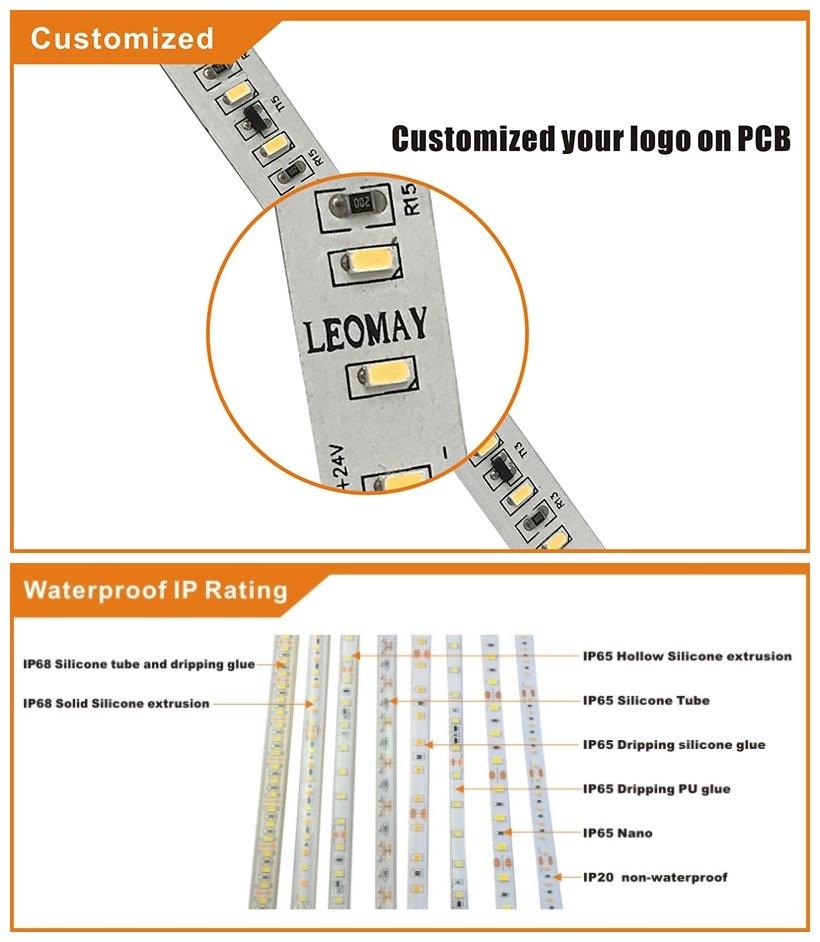

PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	9.6W/M,48W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes

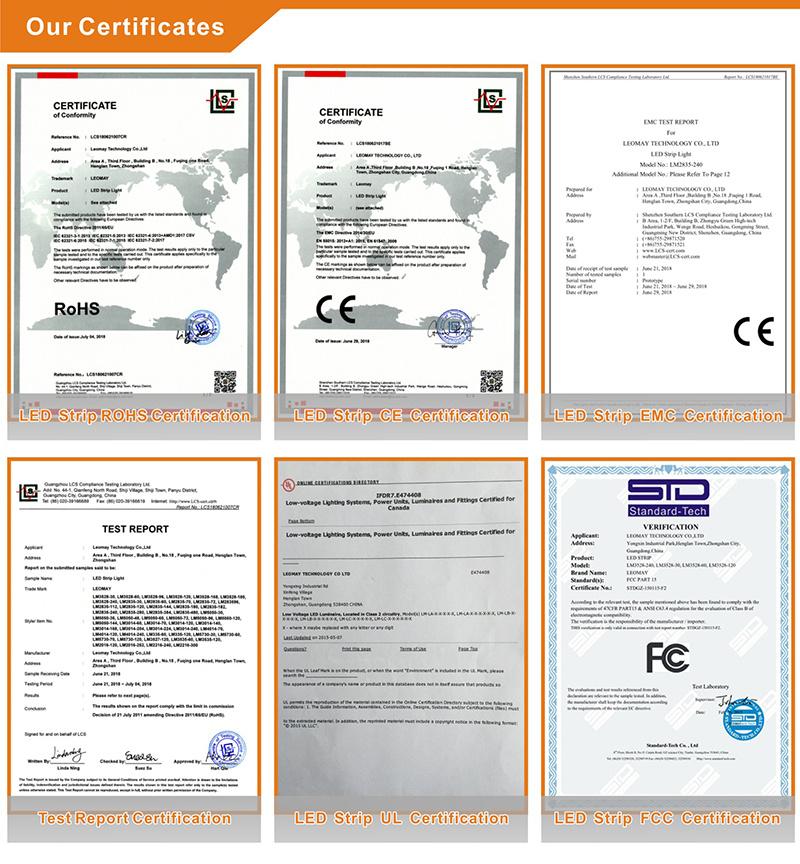

Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Product Features:

1. We have CE, RoHs, UL, DVE, GS and FCC certifications.
2.  White. Warm white, red, blue, green, RGB for optional.
3.Low power consumption and long lifespan for 50000 hours.
4. High CRI. 75-80 CRI.
5. High Lumen. 6-7 lumen per led lights.
6. We use 9495 3M Tape.
7.We offer OEM services.

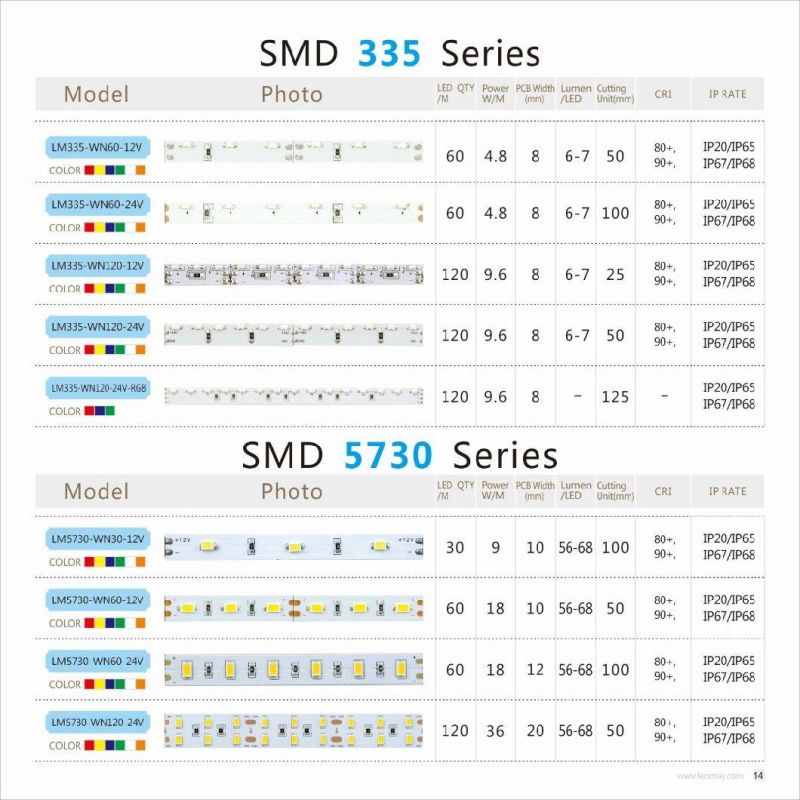

Model	LED QTY	Volt	Power	Lumen/m	CRI	PCB Width	IP Rate	Color
LM335-WN60	60 leds/m	12V/24V	4.8 w/m	360 lm/m	75-80	5mm/8mm	IP20/IP66/IP67/IP68	W/WW
LM335WN120	120 leds/m	12V/24V	9.6 w/m	720 lm/m	75-80	5mm/8mm	IP20/IP66/IP67/IP68	W/WW

Trade Show:







Frequently Asked Questions
 Q: Are you a factory?
A: Yes, we are LED lights manufacturer in Zhongshan, China.

Q: Can I have samples to test?
A: Yes, sample test is available and welcome.

Q: Can our logo or a simple parameter printed on the label of the led flexible strip?
A: Sure, if you like, we can print for you. Just telling us your requirements.

Q: Can you make the lamps using other brand led chip, e.g. CREE, OSRAM?
A: Yes, it is ok for other brand chips, we can produce the products according to your demands.

Q: Do you attend the Exhibitions?
A: Yes, we attend Canton Fair; HK Lighting Exhibition, International Exhibitions etc.
