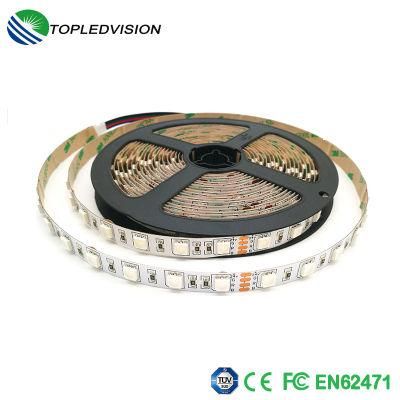

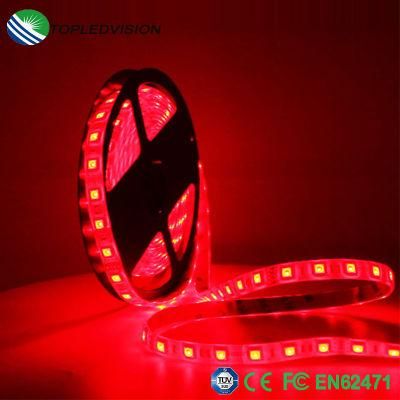

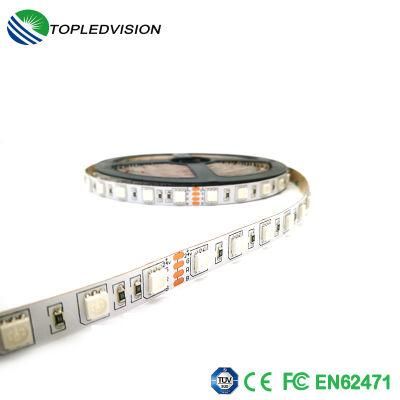

3years Warranty Epistar Chip RGB LED Strip with TUV CE

TOPLEDVISION PHOTONICS CO LIMITED
  • Certification：FCC, RoHS, CE, TUV CE, IEC,En62471, Lm-80
  • Power：14.4W,M

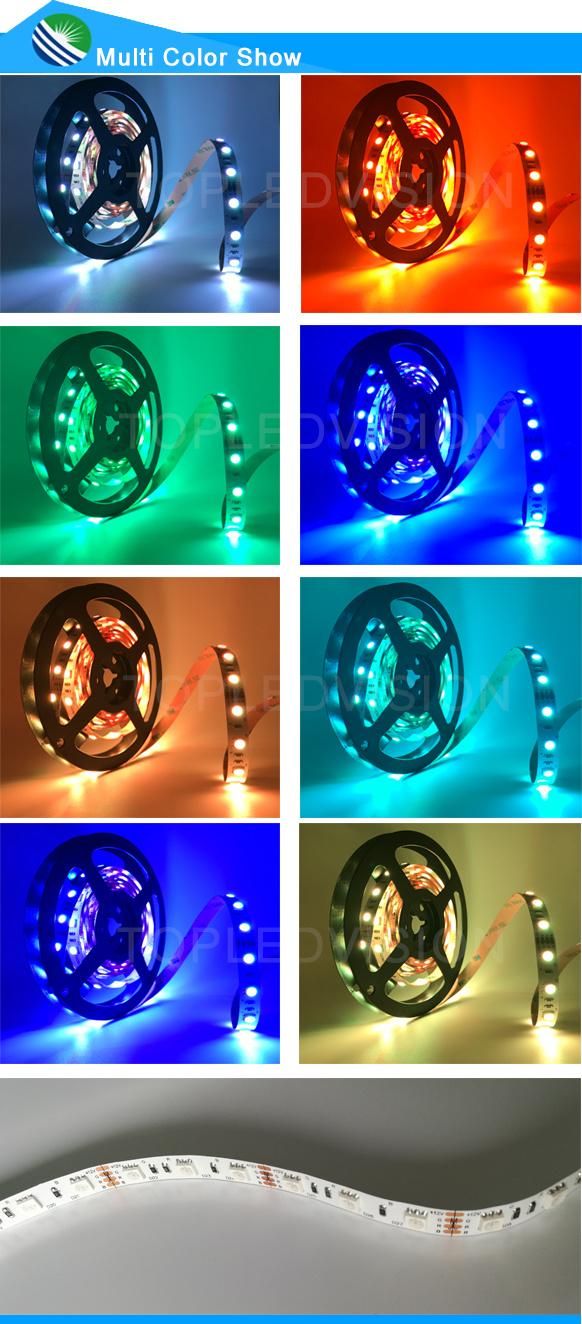

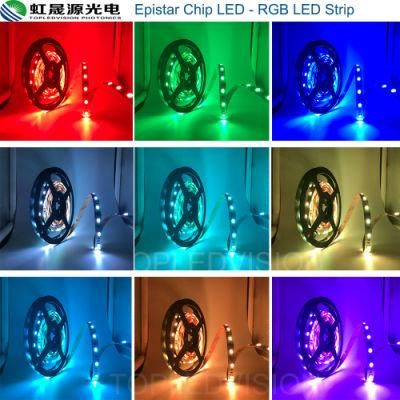

  • Emitting Color：Red,Green,Blue,Color Change,Color Fade,Mixed Chang
  • Voltage：12V,24V DC
  • IP Rating：IP20, IP65, IP67, IP68 Optional
  • LED Quantity：60LEDs,M 5050 RGB

Base Info

  • Model NO.：TLV-FS5050Q60RGB
  • Type：Flexible LED Strip Light Non-Waterproof Waterproof
  • LED Suppliers：Xuyu,Honglitronic,Osram,Samsung
  • LED Chip Brand：Epistar Chip
  • LED Material：Packaged by 99.99% Pure Gold Wire, Red Copper Pad
  • LED Bins：2-Step,3-Step,6-Step, Same Bin for Each Order

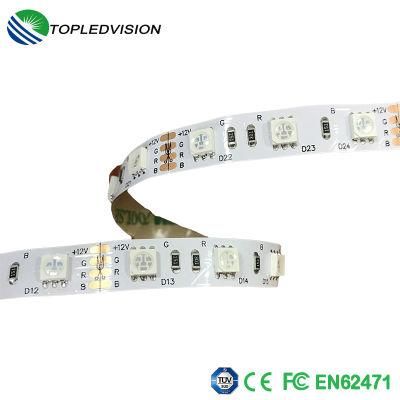

  • PCB Material：Double-Sided Pure Copper Circuit Board
  • PCB Width：10mm
  • PCB Thickness：2oz ( 3oz Optional )
  • LED Testing：IEC,En62471
  • Adhesive Tape：Original 3000lse 3m Tape
  • Packing：5m,Roll, Color Box , Anti-Static Bag
  • Warranty：3 Years
  • Certificates：TUV CE, FCC, RoHS, IEC,En62471, Lm-80
  • Transport Package：Inner Box and Carton, 100reels,CTN
  • Specification：5000*10*1.8mm
  • Trademark：Topledvision
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：100000m,Month

Description

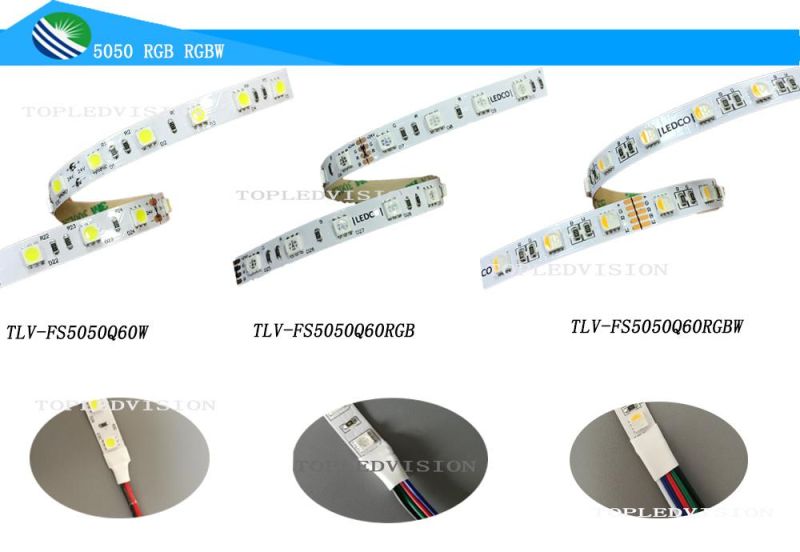

3years Warranty Epistar Chip RGB LED Strip with TUV CE
TLV-FS5050Q60RGBItemHigh quality 5050 RGB LED stripLED quantity60LEDs/mPower(watt)14.4W/m maxWorking voltage12V/24V DCColor temperaturePure Red, Pure Green, Pure Blue color change and color fade, mixed color changePCB10mm double sided FPCDimension5000*10*1.8mmIP rateIP20(IP33)/IP65/Nano coating/IP67/IP68Cutting unitevery 3LEDs(50mm) / 6LEDs(100mm)Backwith Original 3M adhesive tape ( strong double sided more viscous )Working lifespan>30,000hrsWarranty2 yearsCertificatesTUV CE, FCC, IEC/EN62471Good color temperature consistency and stable quality:
We do large stock materials for normal Products to keep the same color temperature and PCB and stable quality for each batch for you.
3years Warranty Epistar Chip RGB LED Strip with TUV CE
Features as follow:
1. LED source: 18-22lm/LED high brightness and low decline (less than 3%) after 3000hours working.

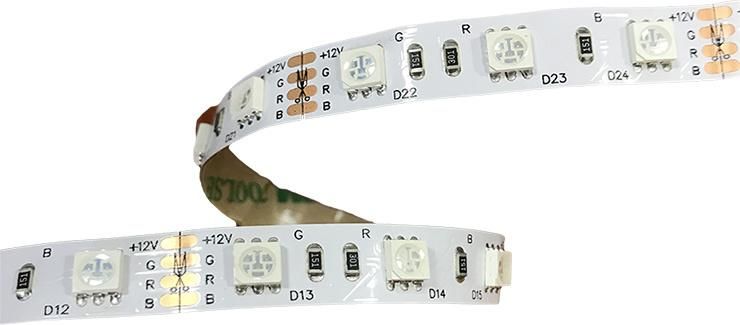

2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size:10mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED rope light more than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our flexible led strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS and IEC/EN62471 photobiological safety compliant.3years Warranty Epistar Chip RGB LED Strip with TUV CEService1. Provide free technology support by phone and e-mail2. We provide training to replace the broken part3. Two years guarantee: In guarantee period, we provide the free new part for replacing.Payment50/% deposit by T/T. Balance T/T before shipment.DeliveryApprox 7-10 working days normally ( from receiving the deposit )TransportationBy Air / SeaEffective date30days
We welcome OEM and ODM service, we have professional engineer to design and produce according your requirement.
