• Model NO.：J020GW15B-TJ
• Luminous Efficiency：115lm,W
• Color Temperature：2700K-17000K, Red, Green, Blue, Yellow
• Color Rendering Index：>80
• Rated Current：416mA,M
• Product Size：5000*15*5.6mm
• Cuttable Unit：100mm
• LED Pitch：50mm
• Max. Cascade Length：5m
• Min. Bend Diameter：30mm
• Mounting Solution：3m Tape
• Operating Ambient：-25 Degrees to 45 Degrees
• Storage Environment：-25 Degrees to 60 Degrees, 60% Rh
• Transport Package：Carton Packaging
• Specification：5M,roll
• Trademark：OEM,ODM,MYNICE,Neutral
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. J020GW15B-TJ Luminous Efficiency 115lm/W Color Temperature 2700K-17000K, Red, Green, Blue, Yellow Color Rendering Index >80 Rated Current 416mA/M Product Size 5000*15*5.6mm Cuttable Unit 100mm LED Pitch 50mm Max. Cascade Length 5m Min. Bend Diameter 30mm Mounting Solution 3m Tape Operating Ambient -25 Degrees to 45 Degrees Storage Environment -25 Degrees to 60 Degrees/ 60% Rh Transport Package Carton Packaging Specification 5M/roll Trademark OEM/ODM/MYNICE/Neutral Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Beam angle 160 degrees Lens S type 2835 flexible led light strip

Application
- It is suitable for indoor advertising light box lighting in hotels, shopping malls, etc.
- Suitable for light boxes and channel letters with a thickness of 50~300mm

Main features
- Use high-efficiency 2835 LED, 20 LED chips per meter
- Excellent thermal and voltage drop design ( 2 OZ copper FPC design)
- Beam angle: 160°.
- IP Grade: IP20.
- Roll-like packaging, convenient and quick installation.
- S shape design, large bending angle,it is flexible to use and can be cut to different lengths.
- The normal life span can reach 30,000 hours (at tc 50°C).

Main Parameters
Product size:  5000*15*5.6 mm
Cut-able unit:  100mm
LED pitch: 50 mm
LED quantity:  20 LEDs/m
Max. cascade length:  5 m
Min. bend diameter:  30 mm
Mounting solution:  3M tape
Operating ambient:  -25ºC~45ºC
Storage environment  -25ºC~60ºC / 60% RH


1. Ranking at t a = 25ºC.
2. Tolerance of measurements for brightness is ±10%, tolerance of measurements for the Chromaticity Coordinate is ±0.01.

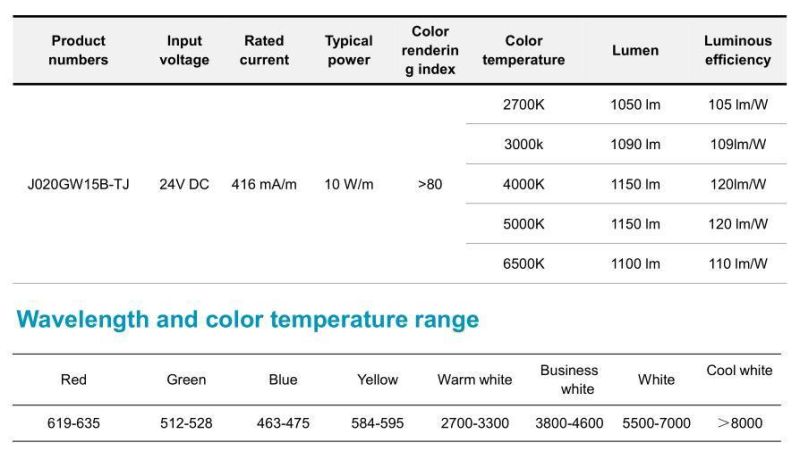

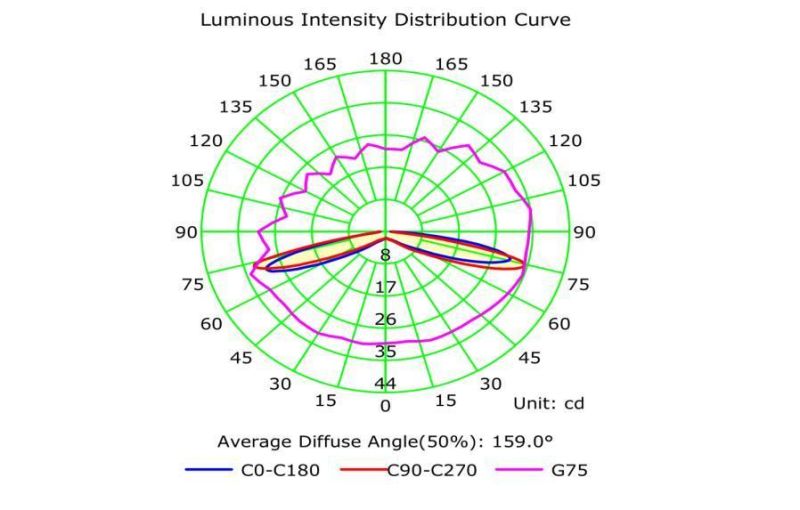

Technical data & Light distribution

Product wiring diagram

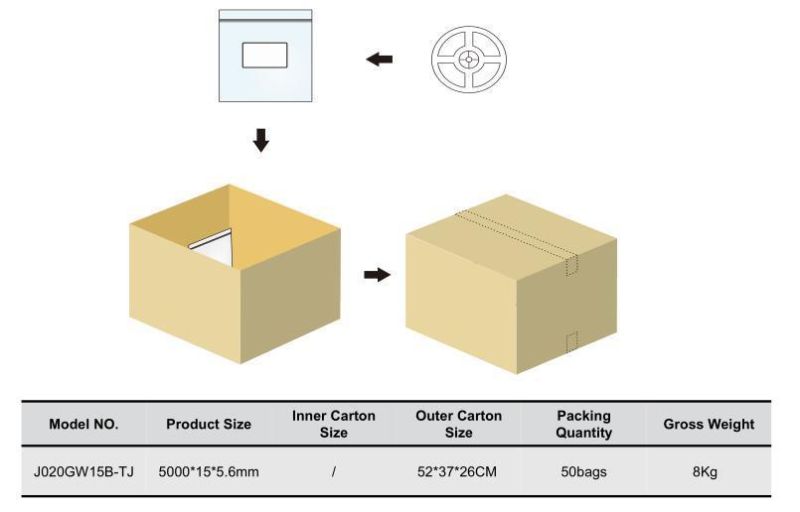

Package



Instructions
- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and
norms.
- Installation by qualified electrician only.
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.
- Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
- Do not fold it in case any damage of LED beads.
- Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
- Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent
with the voltage of the strip to avoid damage.
- LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20
ºC ~ + 40 ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH.
- Please use the strips without waterproof within indoor environment with humidity less than 70%.
- Please be careful during operation. Do not touch the AC power supply in case of electric shock.
- Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the
product.
- Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
