• Model NO.：RM60GX08A,RM60GX08B
• Product Size：10000*8*1.15 mm
• Cuttable Unit：50mm for DC12V, 100mm for DC 24V
• LED Pitch：16.6 mm
• Max. Cascade Length：10m
• Min. Bend Diameter：20 mm
• Mounting Solution：3m Tape
• Operating Ambient：-25 Centigrade Degrees to 45 Centigrade Degrees
• Storage Environment：-25 Centigrade Degrees to 60 Centigrade Degrees
• Current：600mA,M for DC 12V, 300mA,M for DC 24V
• CRI：>80
• Outer Carton Size：52*37*26cm
• Gross Weight：14kgs
• Transport Package：Carton Packaging
• Specification：10M,roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. RM60GX08A/RM60GX08B Product Size 10000*8*1.15 mm Cuttable Unit 50mm for DC12V, 100mm for DC 24V LED Pitch 16.6 mm Max. Cascade Length 10m Min. Bend Diameter 20 mm Mounting Solution 3m Tape Operating Ambient -25 Centigrade Degrees to 45 Centigrade Degrees Storage Environment -25 Centigrade Degrees to 60 Centigrade Degrees Current 600mA/M for DC 12V, 300mA/M for DC 24V CRI >80 Outer Carton Size 52*37*26cm Gross Weight 14kgs Transport Package Carton Packaging Specification 10M/roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Super long no welding DC 12 V 2835 60 led/M flexible led tape

Application
-  Suitable for hotels, shopping malls, homes, cabinets, display racks, etc., used in main lighting, indirect lighting, dark groove lighting, Outline lighting, decorative lighting, etc.

Main features
- Using 2835 SMD LEDs, the color consistency is good.
- It adopts a new type of rolled copper process, which has good heat dissipation and strong conductivity.
- Long cascade connection, no welding, high efficiency.
- The single-ended power supply can be cascaded up to 10 meters, the voltage drop is small, and the brightness consistency from the beginning to the end is high.
- Low temperature treatment, more environmentally friendly.

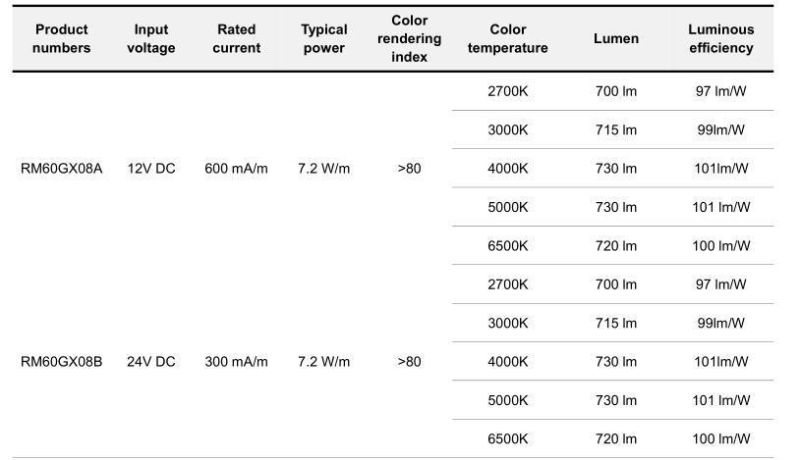

Main Parameters

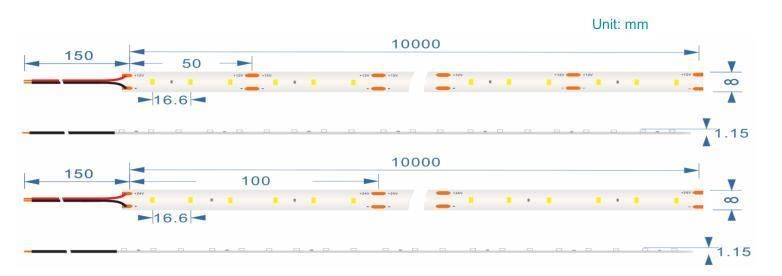

Product size : 10000*8*1.15 mm
Cut-able unit:  50/100mm
LED pitch:  16.6 mm
LED quantity:  60 LEDs/m
Max. cascade length:  10m
Min. bend diameter:  20 mm
Mounting solution:  3M tape
Operating ambient:  -25ºC~45ºC
Storage environment:  -25ºC~60ºC / 60% RH



1. Ranking at t a = 25ºC.
2. Tolerance of measurements for brightness is ±10%, tolerance of measurements for the Chromaticity Coordinate is ±0.01.

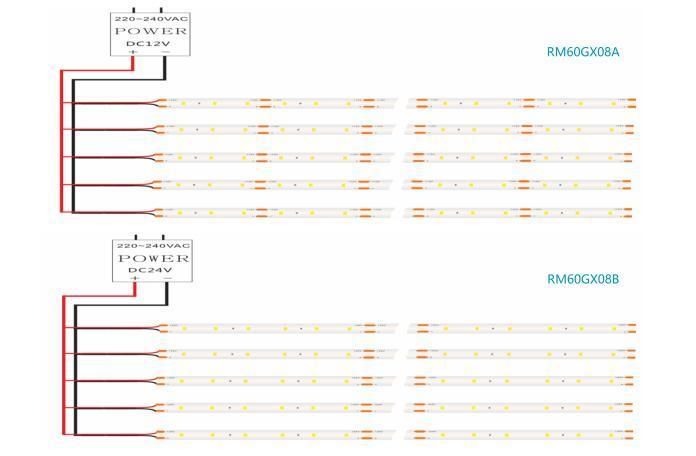

Product wiring diagram

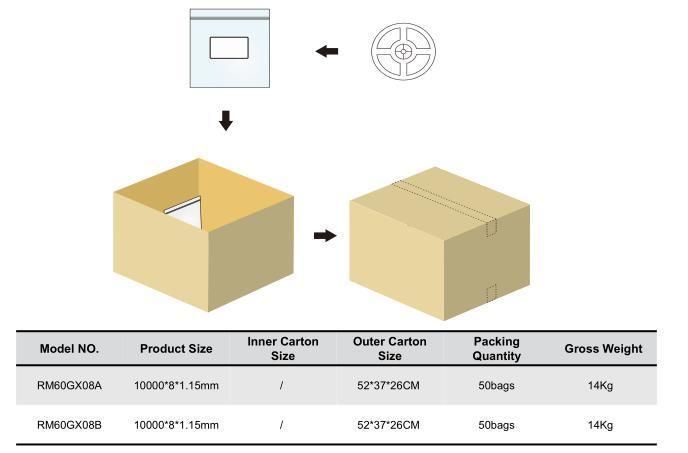

Package

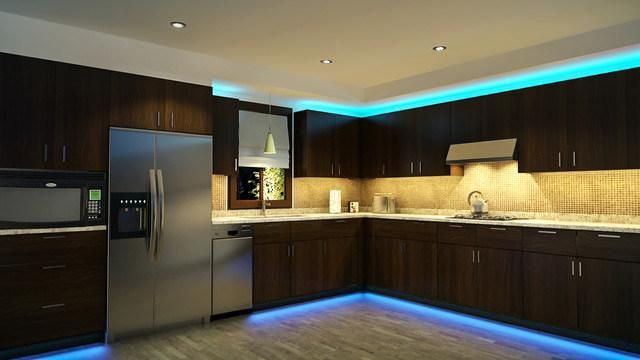

Application Pictures

Instructions
- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and
norms.
- Installation by qualified electrician only.
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.
- Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
- Do not fold it in case any damage of LED beads.
- Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
- Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent
with the voltage of the strip to avoid damage.
- LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20
ºC ~ + 40 ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH.
- Please use the strips without waterproof within indoor environment with humidity less than 70%.
- Please be careful during operation. Do not touch the AC power supply in case of electric shock.
- Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the
product.
- Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
