• Model NO.：R060AI12R
• FPC Width：12mm

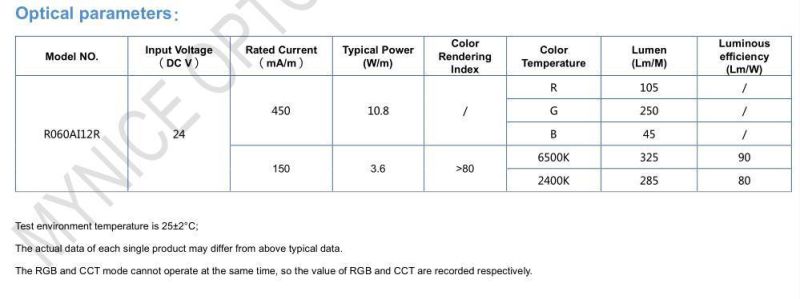

• Lumens：Red 105lm,M, Green 250lm,M, Blue 45lm,M
• Min. Cut：100mm
• Transport Package：Carton Packing
• Specification：5M per roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. R060AI12R FPC Width 12mm Lumens Red 105lm/M, Green 250lm/M, Blue 45lm/M Min. Cut 100mm Transport Package Carton Packing Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

DC24V 5050 60LED/meter RGBWW LED tape light
Application
Main lighting system, indirect lighting, covered channel lighting, outline and decoration lighting in such as hotel, shopping
mall, home, cabinet, display shelf etc.

Main features
New ID design, simple and pretty, highly textured;
SMD5050 5 in 1 package, good light mixing;
2oz double sided copper circuit board with low voltage drop;
Long lifetime thanks to high lumen maintenance LED;
Matching control and dim solutions, easy to use;
Certification: UL, CE, RoHS, FCC,TUV etc.

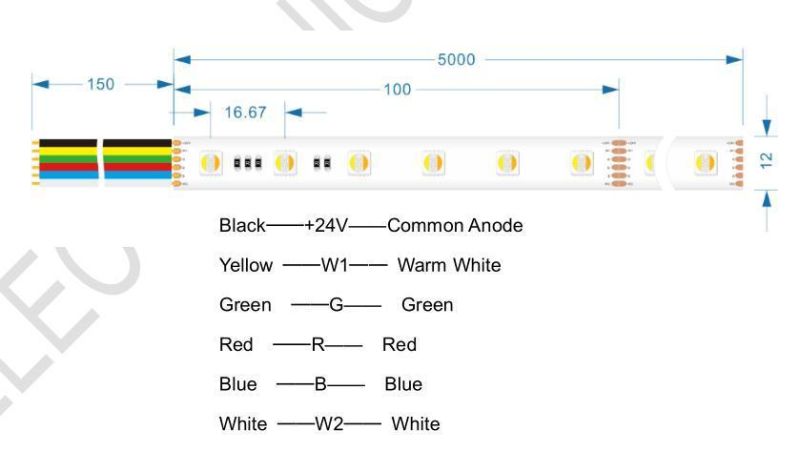

Main ParametersProduct Size 5000*12*2.1mm [16.4ft*0.47in*0.08in]
Cutting Unit 100mm [4in]
LEDs Pitch 16.67mm [0.66in]
LEDs Quantity 60Pcs/m [20Pcs/ft]
Max. Cascade Length 5m [19.6ft]
Min. Bend Diameter 20mm [0.79in]
Mounting 3M
Operating Ambient  -25ºC~45ºC
Storage Environment -25ºC~60ºC / 60% RH


Package

Instructions
Please drive the led strip with isolated power, and the ripple of the constant voltage source should beless than 5%.
Please do not bend the strip into an arc with a diameter less than 20mm and the twist angle per meter is less than 1080º to ensure the longevity and reliability.
Do not fold it in case any damage of LED beads.
Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.;
Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid
damage.
LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 ºC ~ + 40 ºC.Storage temperature: --25 ºC ~ + 60 ºC/60%RH.Please use the strips without waterproof within indoor environment with humidity less than 70%.
Please be careful during operation. Do not touch the AC power supply in case of electric shock.
Please leave at least 20% power for the power supply during using to ensure there is enough power supply todrive the product.
Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
