• Model NO.：RCC0GX05X
• Size：5mm*12mm
• Lumens：Red 80lm,M, Green 45lm,M, Blue 32lm,M White 535

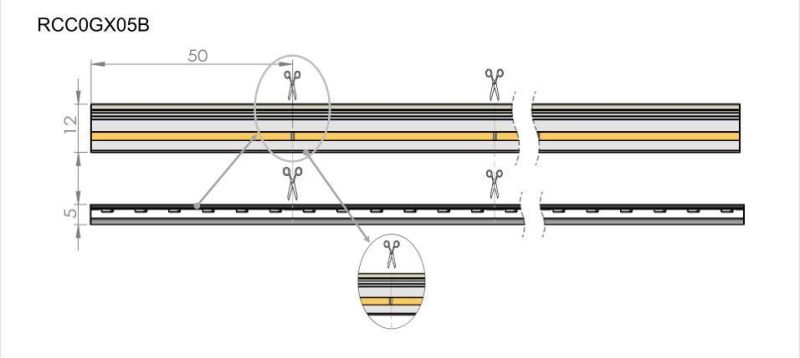

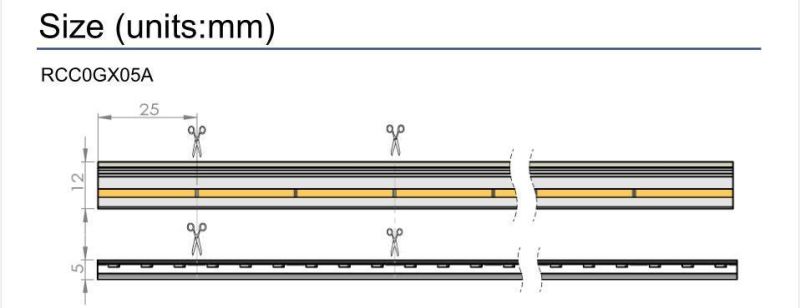

• Min. Cut：25mm for DC12V, 50mm for DC24V
• Transport Package：Carton Packing
• Specification：5M per roll
• Trademark：MYNICE,Neutral,OEM,ODM
• Origin：China
• HS Code：9405409000
• Production Capacity：1, 000, 000m,Month

Basic Info.

Model NO. RCC0GX05X Size 5mm*12mm Lumens Red 80lm/M, Green 45lm/M, Blue 32lm/M White 535 Min. Cut 25mm for DC12V, 50mm for DC24V Transport Package Carton Packing Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Sideview 2835 120LEDs/meter DC12V/DC24V 5*12mm flexible neon LED strips
Application
Landscape lighting, facade lighting, steps, bridges, roads, shape, etc.

Main features
- High quality 2835 SMD LED
- Ultra slim, good flexibility, can be suitable for various shapes
- Excellent weather and corrosion resistance
- CCT: 2700K-6500K, other color available
- Warranty 3 years

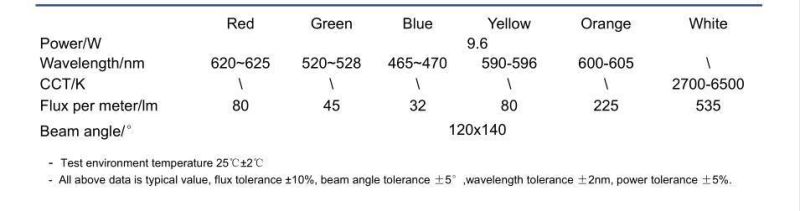

Main Parameters








Instructions
-The diameter of extension wires should be considered based on possible maximum current, load power
and wire loss.
- The LED neon strips itself and all its components may not be mechanical stressed.
- To avoid mechanical damage to the connecting cables, the LED neon strips should be attached securely
to the fixture.
- Installation of LED neon strips with (power supplies) needs to be made with regard to all applicable elec-
trical and safety standards. Only qualified personnel should be allowed to perform installations.
- Please ensure that the power supply/controller is of adequate power to operate the total load.
- Please ensure that the power supply/controller with correct output parameters (driving mode, voltage,
current) for LED neon strips.
- Pay attention to standard ESD precautions when installing the strips.

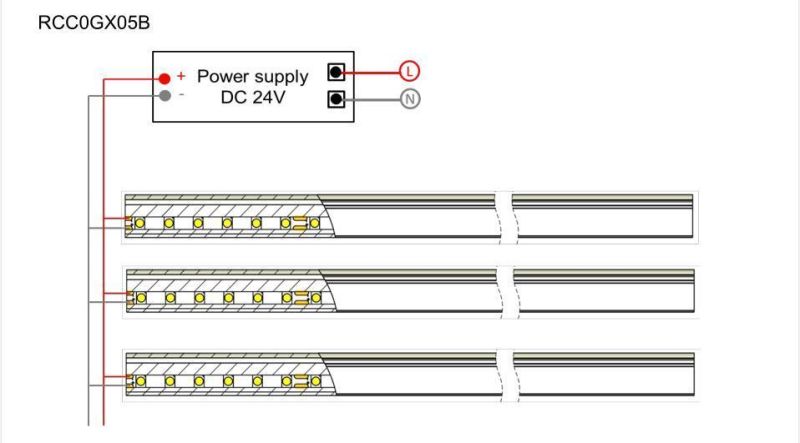

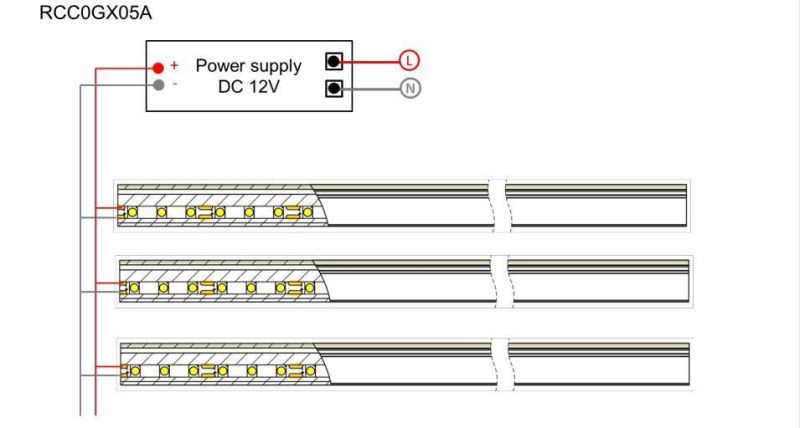

- The LED neon strips should be driven by constant voltage SELV control gear with 24/12 VDC output.
Recommended to choose high qualified power supply/controller, which have short circuit protection, over
voltage and over loading protection function etc.
- Must have extra power supply if the working length exceeds the maximum run length.
- The joints of extended strips should be deal with waterproof when using waterproof products.
