120LEDs/M DC12V 24V 9.6W/M 3528 LED Strip for Decorative Lighting
TOPLEDVISION PHOTONICS CO LIMITED- Certification：FCC, RoHS, CE, TUV Ce, IEC,En62471, Lm-80
- Power：9.6W,M
- Emitting Color：Warm White,Nature White,Cool White, R,G,B,O,Y,P
- Voltage：12V,24V DC
- IP Rating：IP20, IP65, IP67, IP68 Optional
- Size ( L*W*D )：5000*8*1.8mm
Base Info
- Model NO.：TLV-FSWQ120-3528-9.6W
- Type：Flexible LED Stripe LED Rope Light Waterproof
- LED Source：Quality SMD3528
- LED：with Good Heat Dissipation
- PCB：Double-Sided FPC
- Color：Warm White,Nature White,Cool White, R,G,B,O,Y,P
- Working Voltage：12V,24V DC
- Power Consumption：9.6W,M
- LED Luminous：7-8lm,LED
- LED Testing：IEC,En62471
- Usage：House,Commercial,Landscape,Decorative,Kitchen...
- Working Life：>30,000hours
- Warranty：2 Years
- Packing：5mts,Roll, Color Box Packing or Anti-Static Bag
- Certificates：TUV Ce, FCC, RoHS, IEC,En62471, Lm-80
- Transport Package：Inner Box and Carton, 100reels,CTN
- Specification：SMD3528 120LEDs,m
- Trademark：Topledvision
- Origin：Shenzhen, China
- HS Code：9405409000
- Production Capacity：50000meters,Month
Description
ItemHigh quality 3528 LED strip LED quantity 120LEDs/m Power(watt) 9.6W/m max Working voltage 12V/24V DC Color temperature 2700K/3000K/4000K/6000K/
Red/Green/Blue/Yellow/Orange/Amber... PCB 8mm double sided FPC Luminous Flux Dimension IP rate IP20(IP33)/IP65/Nano coating/IP67/IP68 Back Working lifespan >30,000hrs Warranty 2 years Certificates TUV CE, FCC, IEC/EN62471
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.
Features as follow:
1. LED source: 7-8lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED rope light more than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our LED flexible strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS, LM-80 and IEC/EN62471 photobiological safety compliant.

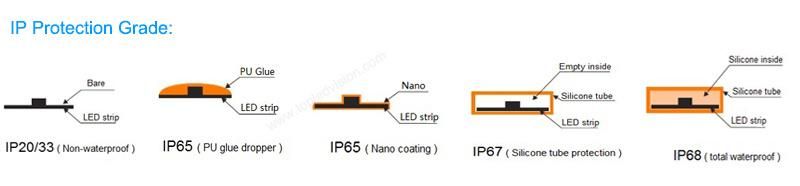

IP20 ( Bare Board ) be used indoor and keep away from rain wet
IP65 ( PU glue dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater

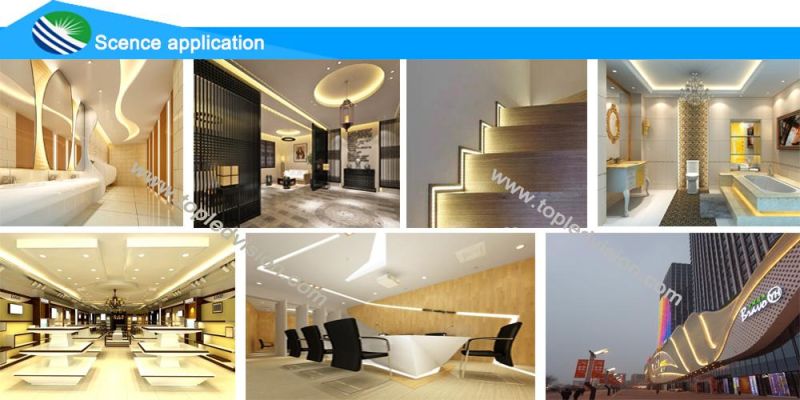

. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
Packaging and shipping :
1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
We give you a warm welcome to visit our factory at anytime.
Our factory's address is: 6F, Jianghai industrial park, No.7 Yonghe Road, Shiyan Town, Baoan District, Shenzhen, China.
If you are willing to come, just call me +86 13560038346!
Red/Green/Blue/Yellow/Orange/Amber...
We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.
Features as follow:
1. LED source: 7-8lm/LED high brightness and low decline (less than 3%) after 3000hours working.
2. Modular design: every 3LEDs or 6LEDs as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm width FPC and smaller components, LED stripe is more flexible.
6. Support customized size: you can cut the LED strips into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED stripes brightness.
8. Lifespan: our LED rope light more than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of strip light and maintenance free.
10. IP rating: our LED flexible strip light have different IP level be able to install in any indoor/outdoor environments (non-waterproof, waterproof)
11. ≤ 15º C temperature rise.
12. 100% aging line test before packing minimizes the possibility of defective products out of the factory.
13. TUV CE, FCC, RoHS, LM-80 and IEC/EN62471 photobiological safety compliant.

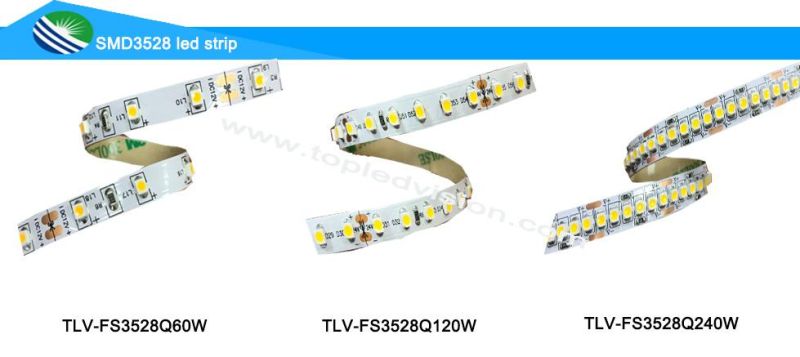

| Model | LED quantity | Output | Power | PCB Width |
| TLV-FS3528Q60W | 60LEDs/m | 12/24V DC | 4.8W | 8mm |
| TLV-FS2835Q120W | 120LEDs/m | 12/24V DC | 9.6W | 8mm |
| TLV-FS3528Q240W | 240LEDs/m | 12/24V DC | 19.2W | 10mm |
IP20 ( Bare Board ) be used indoor and keep away from rain wet
IP65 ( PU glue dropper ) fit on damp location (bathroom,kitchen and corridor...)
IP67 ( Silicone tube protection ) fit on indoor and outdoor
IP68 ( Silicone tube with silicone filling ) can be used outdoor and underwater
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
Packaging and shipping :
1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
| Q1: Do you have free sample? A1: Yes, we can offer you free samples, excluding shipping cost. |
| Q2: What is your minimum order quantity? A2: Usually MOQ is 50m, but we also accept small order for trail. |
| Q3: What's your delivery time? A3: Samples can be finished within 3-5 days, bulk order is about 7-10 working days according to quantity. |
| Q4: What's your delivery ways as usual? A4: Normally, we help you send the products by Express, Air or Sea transportation. |
| Q5: What's the payment term? A5: We accept T/T, PayPal or Western Union, Cash. |
| Q6: Do you offer OEM customized services? A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you. |
We give you a warm welcome to visit our factory at anytime.
Our factory's address is: 6F, Jianghai industrial park, No.7 Yonghe Road, Shiyan Town, Baoan District, Shenzhen, China.
If you are willing to come, just call me +86 13560038346!
