Sideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED Strips

Mynice Optoelectronics Co., Ltd.
  • Certification：UL, RoHS, CE, Bis
  • Power：12 W,M
  • Emitting Color：Red, Green, Blue, Yellow, Orange, White
  • Voltage：24V DC or 12V DC
  • IP Rating：IP67
  • LEDs Qty：120PCS,Meter

Base Info

  • Model NO.：RCC0GX06X

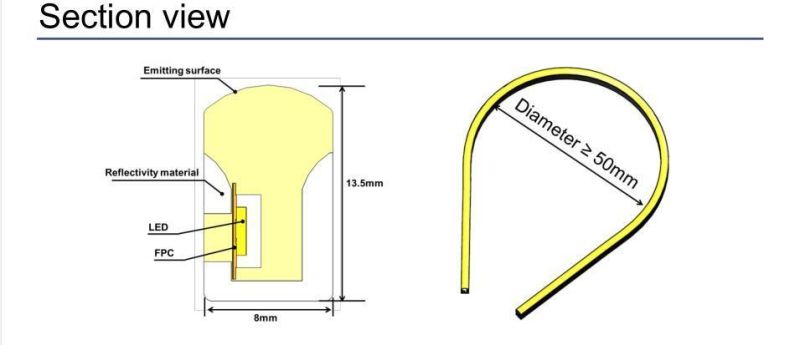

  • Size：8mm*13.5mm
  • Lumens：Red 90lm,M, Green 50lm,M, Blue 35lm,M White 600

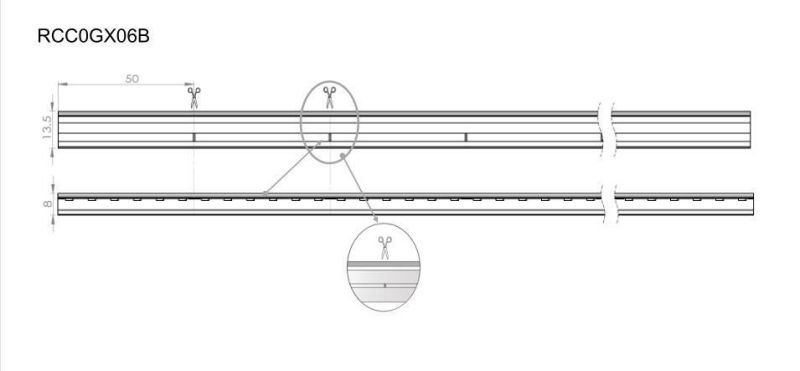

  • Min. Cut：25mm for DC12V, 50mm for DC24V

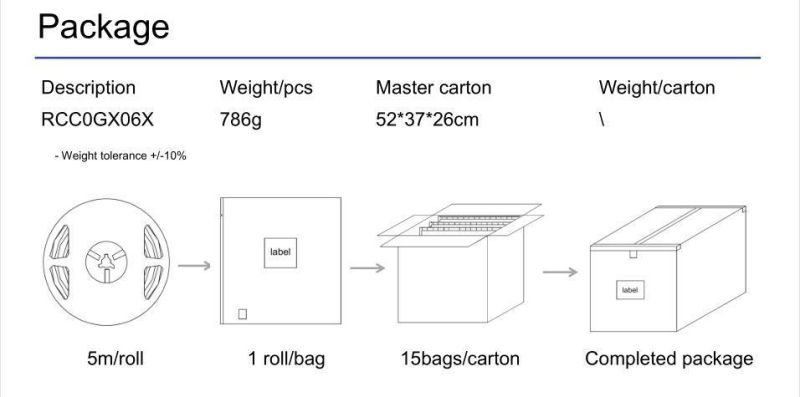

  • Transport Package：Carton Packing
  • Specification：5M per roll
  • Trademark：MYNICE,Neutral,OEM,ODM
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：1, 000, 000m,Month

Description

Basic Info.

Model NO. RCC0GX06X Size 8mm*13.5mm Lumens Red 90lm/M, Green 50lm/M, Blue 35lm/M White 600 Min. Cut 25mm for DC12V, 50mm for DC24V Transport Package Carton Packing Specification 5M per roll Trademark MYNICE/Neutral/OEM/ODM Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

Sideview 8*13.5mm 120 leds/meter 2835 flex neon LED strips
Application
Landscape lighting, facade lighting, steps, bridges, roads, shape, etc.

Main features
- High quality 2835 SMD LED
- Calendaring copper processing for FPC, more stronger and reliable
- Uniform lighting, dot free
- Good flexibility, can be suitable for various shapes
- Excellent weather and corrosion resistance
- CCT: 2700K-6500K, other color available
- Warranty 3 years

Sideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED Strips

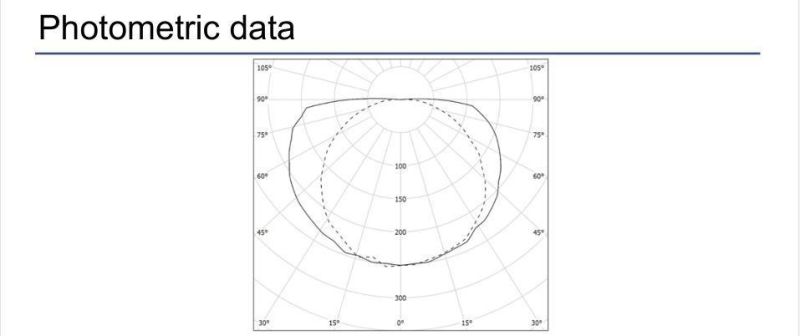

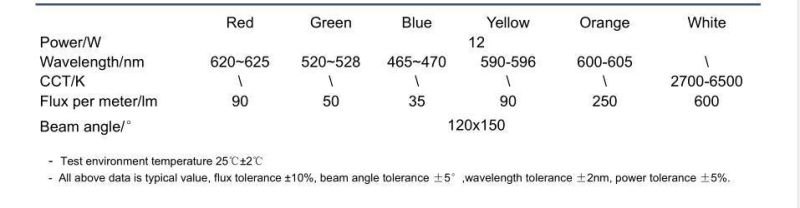

Main Parameters
Sideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED Strips


Sideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED Strips
Sideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED Strips Sideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED StripsSideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED StripsSideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED Strips
Sideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED StripsSideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED Strips
Sideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED StripsSideview 8*13.5mm 120 LEDs/Meter 2835 Flex Neon LED Strips
Instructions

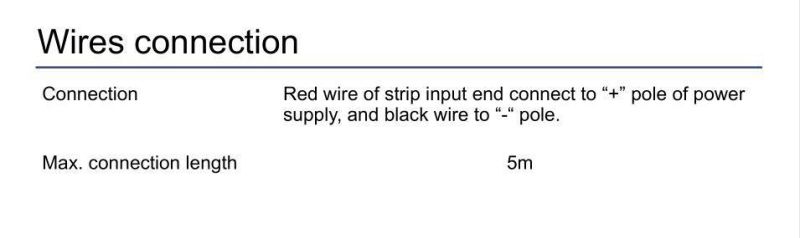

-The diameter of extension wires should be considered based on possible maximum current, load power
and wire loss.
- The LED neon strips itself and all its components may not be mechanical stressed.
- To avoid mechanical damage to the connecting cables, the LED neon strips should be attached securely
to the fixture.
- Installation of LED neon strips with (power supplies) needs to be made with regard to all applicable elec-
trical and safety standards. Only qualified personnel should be allowed to perform installations.
- Please ensure that the power supply/controller is of adequate power to operate the total load.
- Please ensure that the power supply/controller with correct output parameters (driving mode, voltage,
current) for LED neon strips.
- Pay attention to standard ESD precautions when installing the strips.

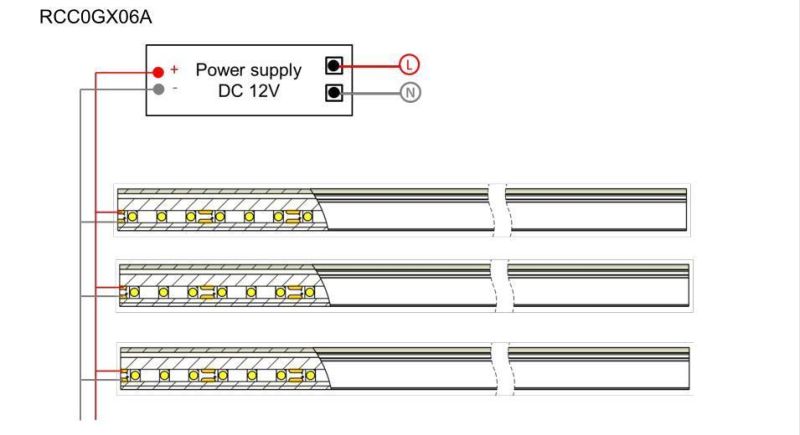

- The LED neon strips should be driven by constant voltage SELV control gear with 24/12 VDC output.
Recommended to choose high qualified power supply/controller, which have short circuit protection, over
voltage and over loading protection function etc.
- Must have extra power supply if the working length exceeds the maximum run length.
- The joints of extended strips should be deal with waterproof when using waterproof products.
