• Model NO.：Digital RGBWW strip
• Beam Angle：120degree
• SMD：5050(5chip in 1 LED)
• CRI：Ra >80
• Working Hour：50000hours
• Warranty：3years
• LED Brand：Refond
• IC：TM1914 IC (8PCS)
• Grey：256
• Pixel：8 Pixel
• Transport Package：Reel to Antistatic Bag, Then in Paper Box
• Specification：5meter per reel, 10meter per reel
• Trademark：Easing Home
• Origin：China
• HS Code：9405409000
• Production Capacity：10000meter Per Day

Basi Parameter:LED Qty48LED per meterSMD Type5050  ( 5 chips in 1 LED)PCB Width12mmPCB Material2Ounce FPCPCB Color:white, Black, BrownWarranty3years
Specification ParametersLuminous Flux(lm)RGB: 360-385lm
WW+PW: 595-625lm
RGB+WW: 620-645lm
RGB+PW: 685-715lm
RGB+WW+PW: 930-965lmInput VoltageDC2VCRIRa >80ColorRed+ Blue + Green+ white + warm white ( 5chips in 1)Power8.4W per meterCurrent/LED70mABeam angle120degreeWorking temperature-20ºC~+45ºCMinim cuttable length125mm (6LEDs 12V)
AcceessoriesEnd cap, mounting clips, 300P 3M tape

Accessories:

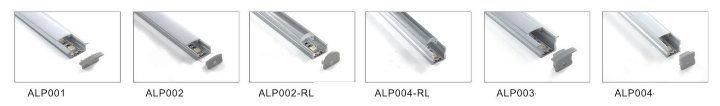

Adviced Aluminum Channel:
Any aluminum profile that suitable for 12mm PCB LED strip. we have over 300 types LED profiles. if you
have special request, pls contact us for more details on our profile catalogues. thanks.

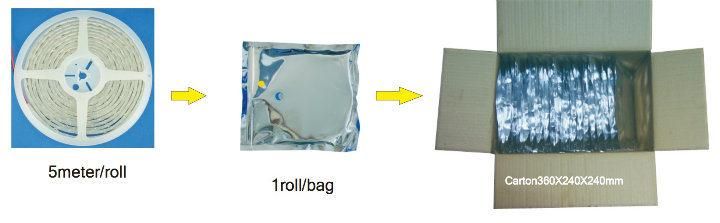

Package:

Application:

• City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
• Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
• establishments ceiling cavity design)
• Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
• Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
• Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)



What's difference between RGBW and RGBWW Led strip ?
RGBW 4in 1 LED, RGBWW 5in 1LED

RGBW  VS RGBWW

RGBW LED strip has been around for a while now and has opened the door to previously unheard-of lighting possibilities, allowing not only a wide range of customisable colors but also the ability to cut and join any length to create totally unique shapes. In response to popular demand though, there's now a new kid on the block, RGB+CCT, which adds an extra white chip into the mix. Why might you need this? Read on..



What's the difference between RGBW and RGBWW LED strip?

Standard RGBW LED strip use a 4-in-1 LED chip made up of red, green,blue and W chips. It can produce a wide range of colors by mixing the four  and looks almost white with all  at full brightness. RGB+W+W LED strip uses either a 5-in-1 LED chip that has A Warm white chip and RGB Led, also has a White color on the right.



Why would you want an extra Warm White and  white chip?

Although RGB and RGBW  can produce a colour close to white, a dedicated white LED provides a much purer white tone and allows you the option of an extra warm or cool white chip. The extra white chip also provides extra scope for colour mixing with the RGB chips to create a huge range of unique shades.The RGB+Warm white and white color. They are adjustable. You can control bright of warm white and white. Really suitable for bed room and KTV, so it is welcome.



Which is better?

The better choice is really down to the application. If all you're after are basic RGB colours with no requirement for pure white then basic RGB LED strip is generally more cost effective and efficient. However for those looking for the option of white and RGB colours, as well as a mix of both, then RGB+W is a better bet. But is you want to get the different bright of white color. The RGB+Warm white +white will be a great choice. Also has a special RGB+WW+W controller.

This RGB+Warm white +White controller is just for RGB+Warm White+White. Not connect other RGB and RGBW led strip.

Are the controllers different?

Yes. RGB+W lighting controllers have five outputs, one for each colour and one for power. As RGB has one less chip, it only requires four. The functionality of the control also has to be different to control the white part of the LED in RGB+W. The RGB+Warm white+White will have own controller. This is only one controller,you can choose what color you want.
