Decoration Flexibile LED Strip Lighting DC24V SMD2835 240LEDs/M with TUV Ce
TOPLEDVISION PHOTONICS CO LIMITED- Certification：FCC, RoHS, CE, TUV, En62471, Lm-80
- Power：20watt,M
- Emitting Color：Warm White,Nature White,Cool White,Red,Green,Blue
- Voltage：24V DC
- IP Rating：IP20, IP65, IP67, IP68
- Type：Flexible LED Strip
Base Info
- Model NO.：TLV-FS2835Q240W-24V
- LED Source：High Quality SMD2835
- LED：99.99% Gold Wire and Red Copper Pad
- Model：Tlv-Fs2835q240W
- PCB：Electrolytic Copper Double-Sided Circuit Board
- LED Lumen：24-26,26-28lm
- LED Quantity：240LEDs,M
- Watt：20W,M
- CRI：High CRI >95ra

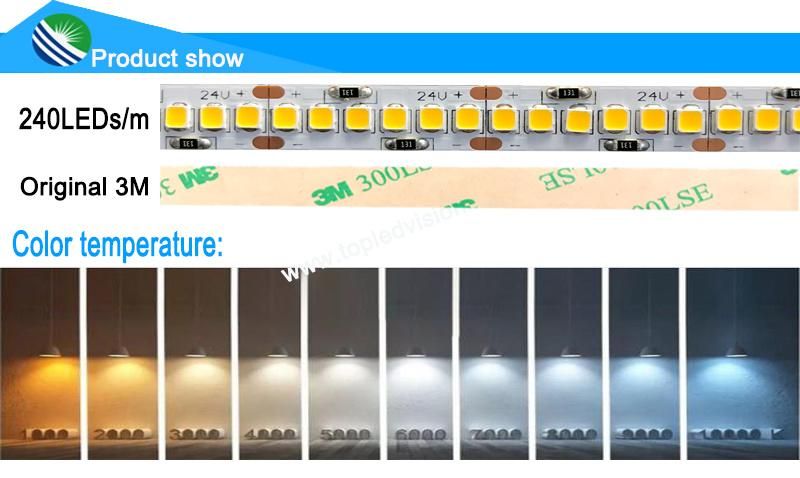

- Color Temp：2700K,3000K,4000K,6000K
- Working Life：30000h
- Certifications：TUV,Ce,FCC,IEC,En62471,Lm-80
- Warranty：2-3 Years
- Packing：5mts,Reel, Gift Box Packing or Anti-Static Bag
- Usage：Commercial,Office,Kitchen,Bar,
- Transport Package：5mts,Reel 100reel,Carton
- Specification：5000x10x 1.3mm
- Trademark：Topledvision
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：10000PCS,Month
Description
TLV-FS2835Q240W-24V
| High quality SMD LED Our SMD LED use 99.99%(Au) gold wire and red copper pad. 24-26lm led lumen, which is better dissipation, long lifespan and low light decline. SMD LED passed LM-80 testing standard, less than 5% lumen down after 5000H working. |
| High quality double-side PCB We use Electrolytic copper as PCB materrial, the electrolytic copper is equipped with a dual circuit board , which is better heat disspation and more stable use. |
| Good color consistency and reliable quality We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch. |
| Suppliers | Ours | Cheaper |
| Wire | 99.99% gold wire | Alloy wire |
| Pad | Red coppper | Yellow copper/Iron |
| Led lumen | 24-26lm | 22-24lm |
| Light decline rate | 3-5% after 5000H | 10% after 3000H |
| Working life | 3-5years | 1-2years |
| Packing | Coloful gift box | Aluminum foil bag |
| Certification | LM-80 | Unknow |
Features as follow:1. LED source: 24-26lm/LED high brightness and low decline(Less than 3%) after 5000hours working.
2. Modular design: every 6leds as a module and work independently.
3. Voltage: 24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely.
5. FPC size: 10mm width FPC and smaller components, LED strip is more flexible.

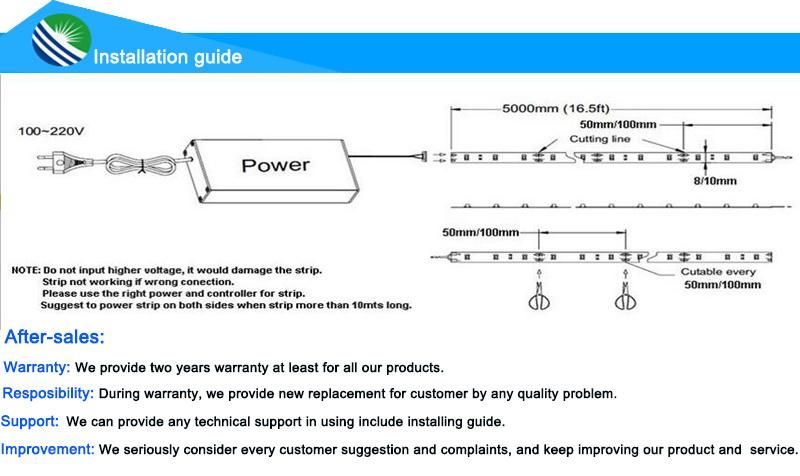

6. Support customized size: you can cut the LED strip into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED strip brightness.
8. Lifespan: More than 30000hours working life with 2-3 years warranty.
9. Easy Installation: 3M tape on the back of led strip and maintenance free.

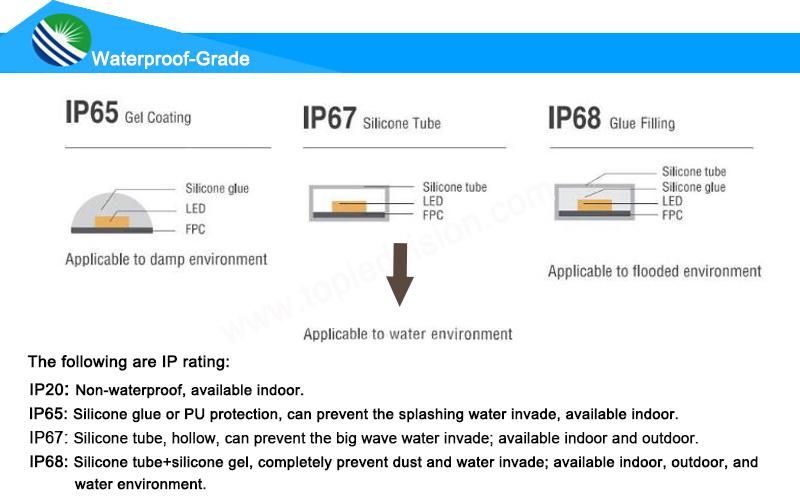

10. IP rating: have different IP level be able to install in any indoor/outdoor environments.
11. ≤ 15º C temperature rise.
12.100% aging line test before packing minimizes the possibility of defective products out of the factory.

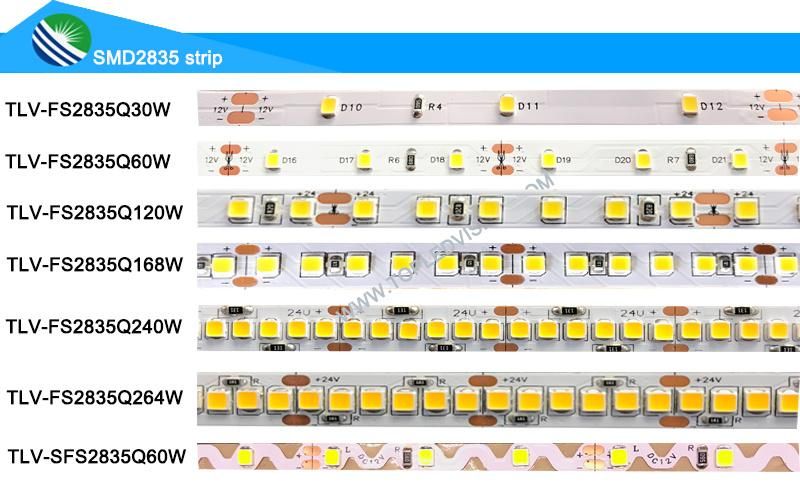

| Model | Led quantity | Output | Power | PCB Width |
| TLV-FS2835Q30W | 30leds/m | 12/24V DC | 6W | 8mm |
| TLV-FS2835Q60W | 60leds/m | 12/24V DC | 12W | 8mm |
| TLV-FS2835Q120W | 120leds/m | 12/24V DC | 16W | 8mm |
| TLV-FS2835Q168W | 168leds/m | 12/24V DC | 18W | 10mm |
| TLV-FS2835Q240W | 240leds/m | 24V DC | 20w | 10mm |
| TLV-FS2835Q264W | 264leds/m | 24V DC | 22w | 10mm |
| TLV-SFS2835Q60W | 60leds/m | 12V DC | 12w | 6mm |

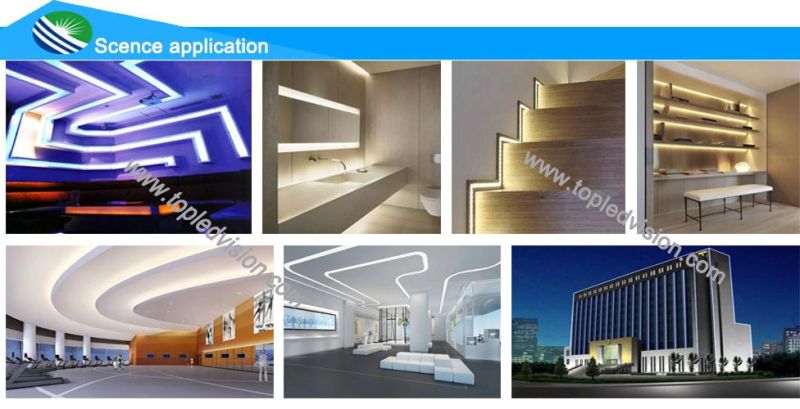

Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.

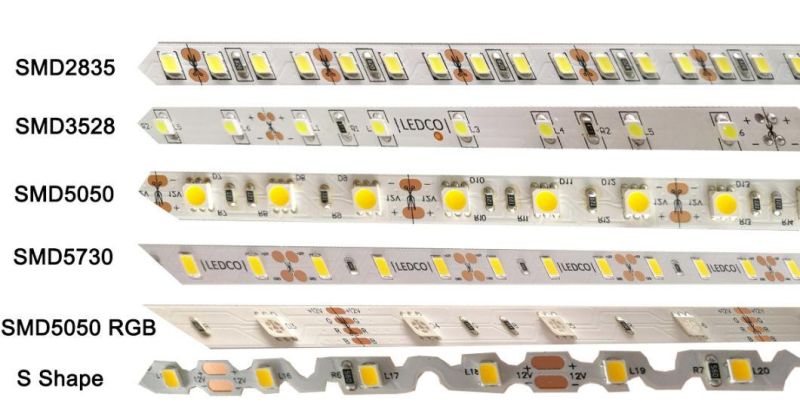

Other type of led strips for your reference:
Packaging and shipping :
1. Packaging: 5m/roll, box packing (132x132x15mm), 100 reels per carton
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.
| Q1: Do you have free sample? A1: Yes, we can offer you free samples, but you pay the shipping cost. |
| Q2: What is your minimum order quantity? A2: Usually MOQ is 50m, but we also accept small order for trail. |
| Q3: What's your delivery time? A3: Samples can be finished within 3-5 days, and bulk order is about 10-15 days according to quantity. |
| Q4: What's your delivery ways as usual? A4: Normally, we send the products by Express, Air or Sea transportation. |
| Q5: What's the payment term? A5: We accept T/T, PayPal or Western Union. |
| Q6: Do you offer OEM customized services? A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you. |
