Waterproof 2835 SMD LED Light LED Strip with TUV Ce Certification
TOPLEDVISION PHOTONICS CO LIMITED- Certification：FCC, RoHS, CE, TUV,En62471,Lm-80
- Power：16-20W
- Emitting Color：Warm White, Nature White, Cool White
- Voltage：12V DC

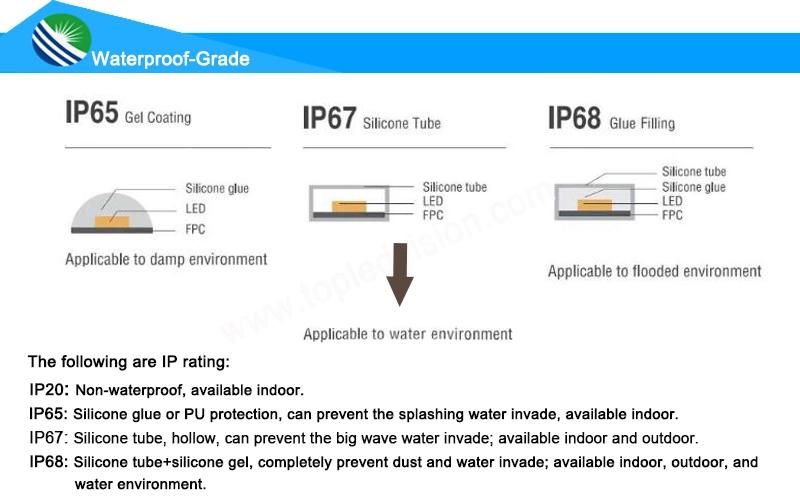

- IP Rating：IP20,IP65,IP67,IP68
- Type：Flexible LED Strip
Base Info
- Model NO.：TLV-FS2835Q120W
- Model：SMD2835
- LED：99.99% Gold Wire and Red Copper Pad
- PCB：Double-Side PCB
- PCB Width：8mm
- Material of PCB：Electrolytic Copper
- Flexibility：Better
- LED Lumen：24-26, 26-28lm
- Light Decline Rate：Less Than 5% Lumen Down After 5000h Working
- LED Quantity：120LEDs,M
- Watt：12W,M
- CRI：>80,95ra
- Color Temp：2700K,3000K,4000K,5000K
- Certifications：TUV, Ce, FCC, En62471, Lm-80
- Usage：Commercial, Office, Kitchen, Bar
- Transport Package：5mts,Reel 100reel,Carton
- Specification：5000x8x1.3mm
- Trademark：topledvision
- Origin：Shenzhen China
- HS Code：9405409000
- Production Capacity：100000PCS,Month
Description
TLV-FS2835Q120W
Advantage:
| Suppliers | Ours | Cheaper |
| Wire | 99.99% gold wire | Alloy wire |
| Pad | Red coppper | Yellow copper/Iron |
| Led lumen | 24-26lm | 22-24lm |
| Light decline rate | 3-5% after 5000h | 10% after 3000h |
| Working life | 3-5years | 1-2years |
| Packing | White gift box | Aluminum foil bag |
| Certification | LM-80 | Unknow |
Features:
High Bright, Energy saving and Long working life
a, Use quality and high lumen smd 2835 led as light source and low bright decline(LM-80 testing).
b, 50% Lower power consumption than the traditional light.
c, Light Strip have a long working life at low working temperature control and good production processing.
Reliable quality and same color supply
a, Every 3leds design for min unit which can be cut or connected, it dosen't effect other units when one unit off.
b, Double-side PCB made by rolled copper material which is flexible and not easy to break.
c, Always same led color temperature and strict production for Led ribbon strip to keep the same color and stable quality for every batch.
Support dimming
Flexible Led strip be controlled by different controller or dimmer, colors and brightness be controlled.
Cost-effective and easy installation
a, Large scare Mechanized production, it is economical and affordable.
b, Easy installing way.

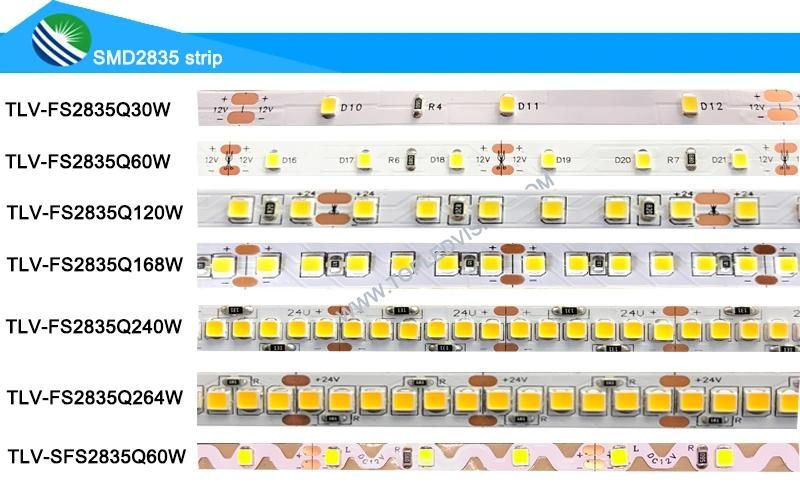

| Model | Led quantity | Volt(output) | Power | Width PCB |
| TLV-FS2835Q30W | 30leds/m | 12/24V DC | 6W | 8mm |
| TLV-FS2835Q60W | 60leds/m | 12/24V DC | 12W | 8mm |
| TLV-FS2835Q120W | 120leds/m | 12/24V DC | 16W | 8mm |
| TLV-FS2835Q168W | 168leds/m | 12/24V DC | 18W | 10mm |
| TLV-FS2835Q240W | 240leds/m | 24V DC | 20w | 10mm |
| TLV-FS2835Q264W | 264leds/m | 24V DC | 22w | 10mm |

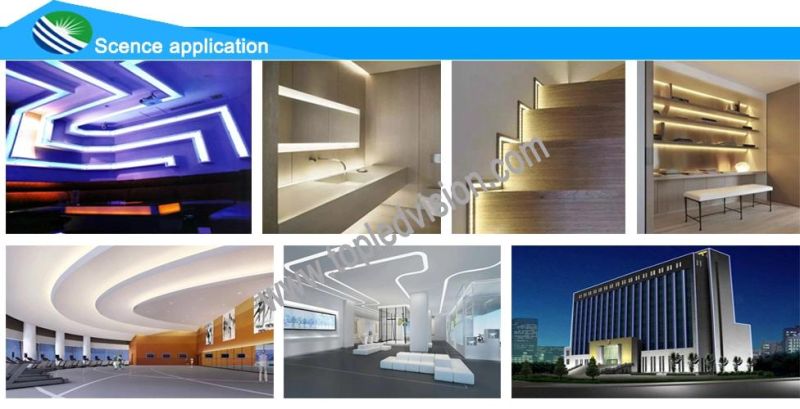

Applications:
. Hotel, kitchen, house decoration
. Hospitals, museum, School
. Bar, stage, casino, KTV, supermarket
. Store, cafe, restaurant, shopping center
. Residential, commercial, institution buildings
. Ad, Sign, Corridors, and other background decorative lighting.
| FRQ: |
| Q1: Do you have free sample? A1: Yes, we can offer you free samples, but you pay the shipping cost. |
| Q2: What is your minimum order quantity? A2: Usually MOQ is 50m, but we also accept small order for trail. |
| Q3: What's your delivery time? A3: Samples can be finished within 3-5 days, and bulk order is about 10-15 days according to quantity. |
| Q4: What's your delivery ways as usual? A4: Normally, we send the products by Express, Air or Sea transportation. |
| Q5: What's the payment term? A5: We accept T/T, PayPal or Western Union. |
| Q6: Do you offer OEM customized services? A6: Yes, we offer OEM services. We can print your logo on products, and customize the products and packaging and the other things for you. |
