• Model NO.：TLV-FS2835Q60RGB12V
• LED Lumen：20-22lm
• Type：LED Strip
• LED Type：SMD5050
• LED Source：Quality SMD5050
• LED Width：10mm
• LED Qty：60LEDs,M
• Lifespan：50000h
• Certificate：Ce,IEC,En62471,Lm-80
• Transport Package：5mts,Reel 100reel,Carton
• Specification：5000x10x 1.8mm
• Trademark：topledvision
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：100000PCS,Month

LedQuality SMD5050 RGBLed quanty60leds/mLed Lumen20-22lm,Working valage12V DCPower consumption14.4watt/mSize5000x10x1.8mmWorking lifespan>50000HoursFlexiblegoodProtect gradeIP20,IP65,IP67,IP68Warranty2 yearsPackage5m/reel ,100reel/cartonCertificateTUV,FCC,CE,IEC/EN62471 IP20 LED strip- bare/ non-waterproof, be used indoor
IP65 LED strip- glue protection, be used indoor and dust-proof/ moisture-proof
IP67 LED strip- silicone tube protection
IP68 LED strip- silicone tube with silicone filling inside, total waterproof, can be used outdoor enviroment

Product features:
High luminous,better flexibility
a.use quality 20-22lm SMD led as light source
b.white ,red,green,blue,yellow and other single color option,CRI>80ra
c.the led strip with better flexibility by use smaler smd led and resistance and roled copper FPC.

Good reliability ,long working lifespan
a.90-95% working current of standard is safe for led strip and keep the high lumen efficiency.
b.12V DC working voltage and low current which has less heat for a long strip.
c.loss than 3% light decline rate after 30000hours continuously working.

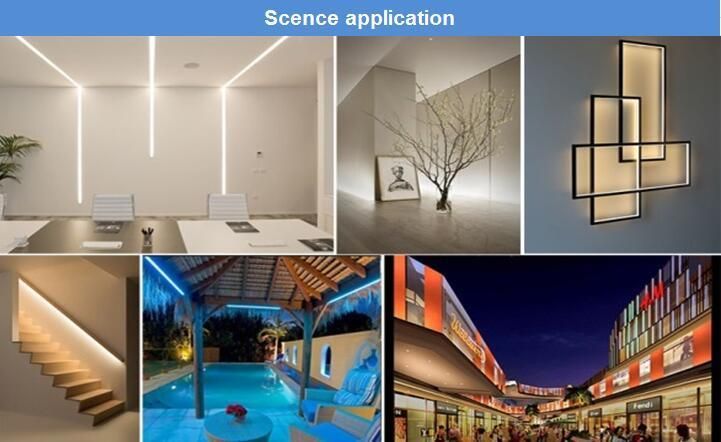

LED strip installation guide:


1.Light-Box lighting: Install around and behind the light box to get a better brightness.
2.Commercial Cabinet Lighting. Installed in the cabinets and stores as commercial lighting
3.Display Lighting. Use behind the display board to make it more bright and effective.
4.Decorative lighting. Use Colorful lights as decoration
5.General Lighting used as replacement of common lights.
6.Advertising Lighting. Use flexible strips to make different attractive letters

Packaging and shipping :
1. Packaging: 5 meters/roll, box packing (132X132X15mm), 100 rolls/ctn.
2. Delivery time: normally about 3-5 working days if less than 2000m.
3. Shipping by DHL, FedEx, UPS...Express, or Air, Sea transportations.



FAQ:
1. Can you do the designs for us?
Yes. We have a professional team with rich experience in products design and manufacturing. We can manufacture the products as per your requirements.
2. Are your samples free or need cost?
Actually it depends on the products. For low value products, we will provide free samples and freight collect.
3. Why choose us?
For service, 7days ( 24hours) are working for your urgent request.
For quality, all goods will be 100% inspected before shipment.
For price, reasonable and competitive factory Wholesale pricewill be provided.
For delivery , fast and safety delivery service at your choose.
4. How can I get a sample to check your quality?
After price confirmation, we will make according to your details requirement and send to you by DHL, UPS, FEDEX, TNT, EMS.This process need 3-5 days.
5. What about the lead time for mass production?
Suggest that you start inquiry 60 days before the date you would like to get the products at your country.

plz send enquiry for details.
