• Model NO.：TLV-FS2835-60L-12W
• Model：SMD2835
• LED：Gold Wire and Red Copper Pad
• LED Lumen：24-26,26-28lm
• LED Quantity：60LEDs,M
• Watt：12W,M
• CRI：>80ra
• Color：Ww,Nw,Cw,R,G,B,Y,P
• Usage：Commercial,Office,Kitchen,Bar,
• Certifications：TUV,Ce,FCC,En62471,Lm-80
• Transport Package：5mts,Reel 100reel,Carton
• Specification：5000x8(10)x 1.3mm
• Trademark：topledvision
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. TLV-FS2835-60L-12W Model SMD2835 LED Gold Wire and Red Copper Pad LED Lumen 24-26,26-28lm LED Quantity 60LEDs/M Watt 12W/M CRI >80ra Color Ww,Nw,Cw,R,G,B,Y,P Usage Commercial,Office,Kitchen,Bar, Certifications TUV,Ce,FCC,En62471,Lm-80 Transport Package 5mts/Reel 100reel/Carton Specification 5000x8(10)x 1.3mm Trademark topledvision Origin Shenzhen China HS Code 9405409000 Production Capacity 100000PCS/Month

Product Description

Product Keywords: Flexible led strip light ,smd led,led strip 12v ,led ribbon light, led rope light ,led ribbon strip ,led strip 4000k,Waterproof LED Strip,LED Lamp

Application:Decorative light ,Hotel,bar,kitchen,stage,commercial building,exhibition,light box,store,cafe,restaurant,shopping centre and so on.


Our advantage:

Suppliers	Ours	Cheaper
Wire	99.99% gold wire	Alloy wire
Pad	Red coppper	Yellow copper/Iron
Led lumen	24-26lm	22-24lm
Light decline rate	3-5% after 50000h	10% after 30000h
Working life	3-5years	1-2years
Packing	White gift box	Aluminum foil bag
Certification	LM-80	Unknow

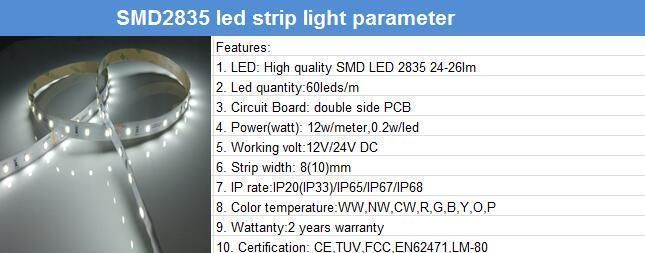

Features as follow:
1. LED source: 24-26lm/LED high brightness and low decline(Less than 3%) after 50000hours working.
2. Modular design: every 3leds or 6leds as a module and work independently.
3. Voltage: 12V/24VDC input Voltages can support longer LED strip connection.
4. Working current: 90-95% to keep the lumen efficiency safely
5. FPC size: 8mm/ 10mm width FPC and smaller components, LED strip is more flexible.
6. Support customized size: you can cut the LED strip into the size you want (support customized length).
7. Dimming support: by manual or IR, be able to adjust the LED strip brightness.
8. Lifespan: More than 50000hours working life with 2 years warranty.
9. Easy Installation: 3M tape on the back of led strip and maintenance free.
10. IP rating: have different IP level be able to install in any indoor/outdoor environments
11. ≤ 15º C temperature rise.
12.100% aging line test before packing minimizes the possibility of defective products out of the factory.

IP rate:
IP20 led strip (non-waterproof),using when indoor and keep away from rain wet.
IP65 led strip (glue protection), Nano coating ,fit on indoor environment.
IP67 led strip (silicone tube protection) ,Fit on outdoor exterior building.
IP68 led strip (total waterproof) ,can be work underwater.





Packaging and shipping :

1.Packaging: 5 meters/roll,100 rolls/ctn.

2.Delivery Detail: Shipped in 10-12 days after payment.Delivery way by Express,Air,Sea transportations.
